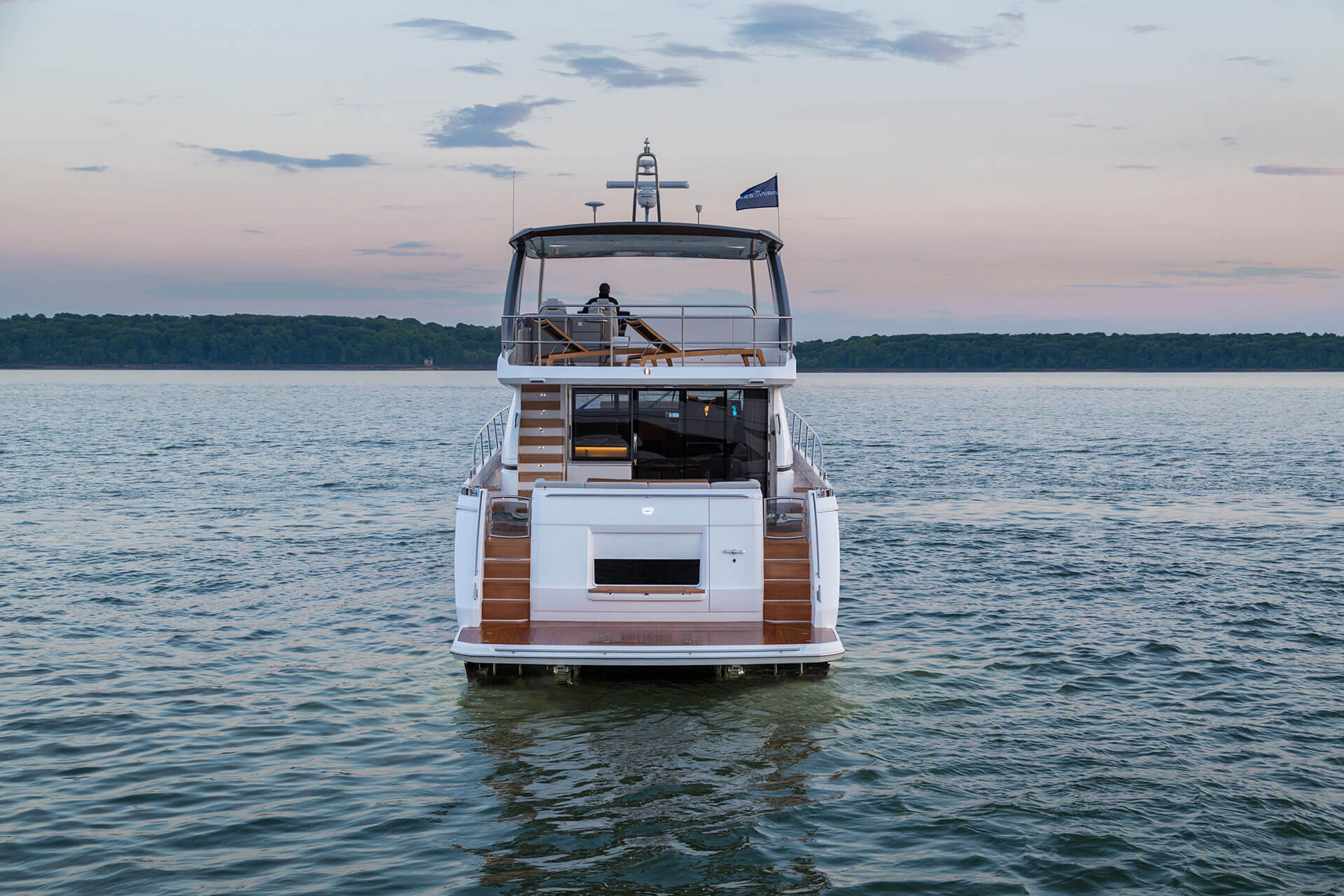

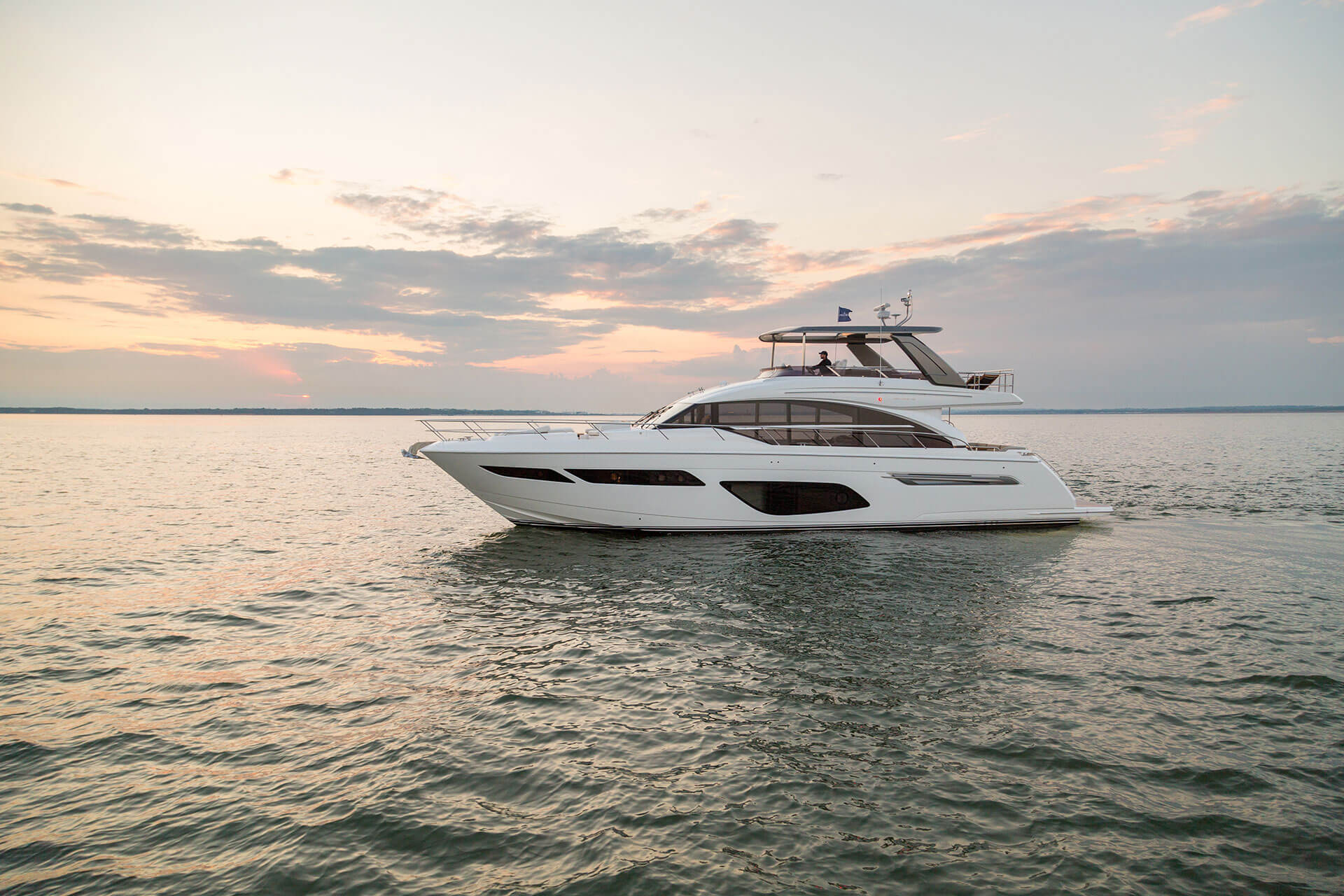

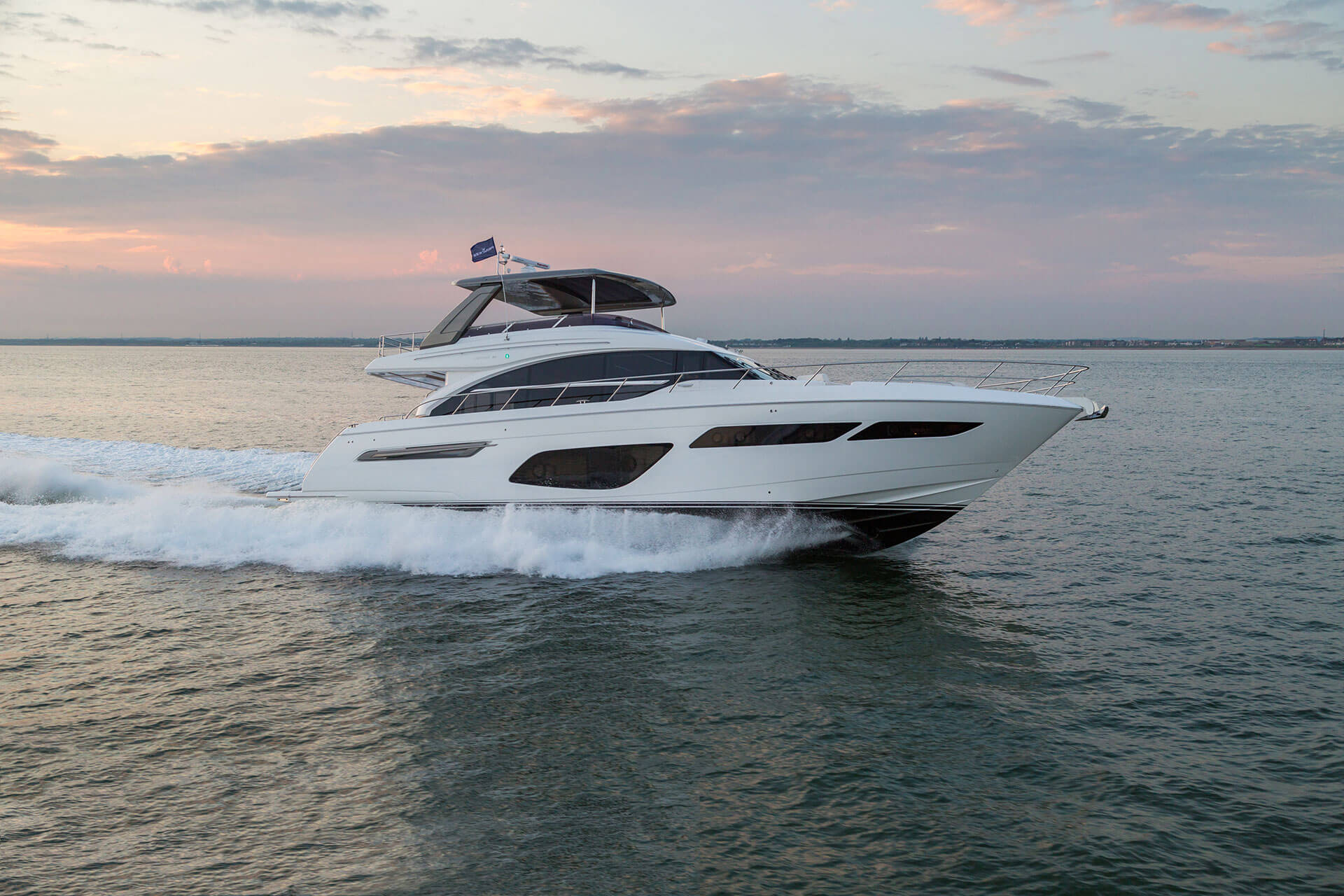

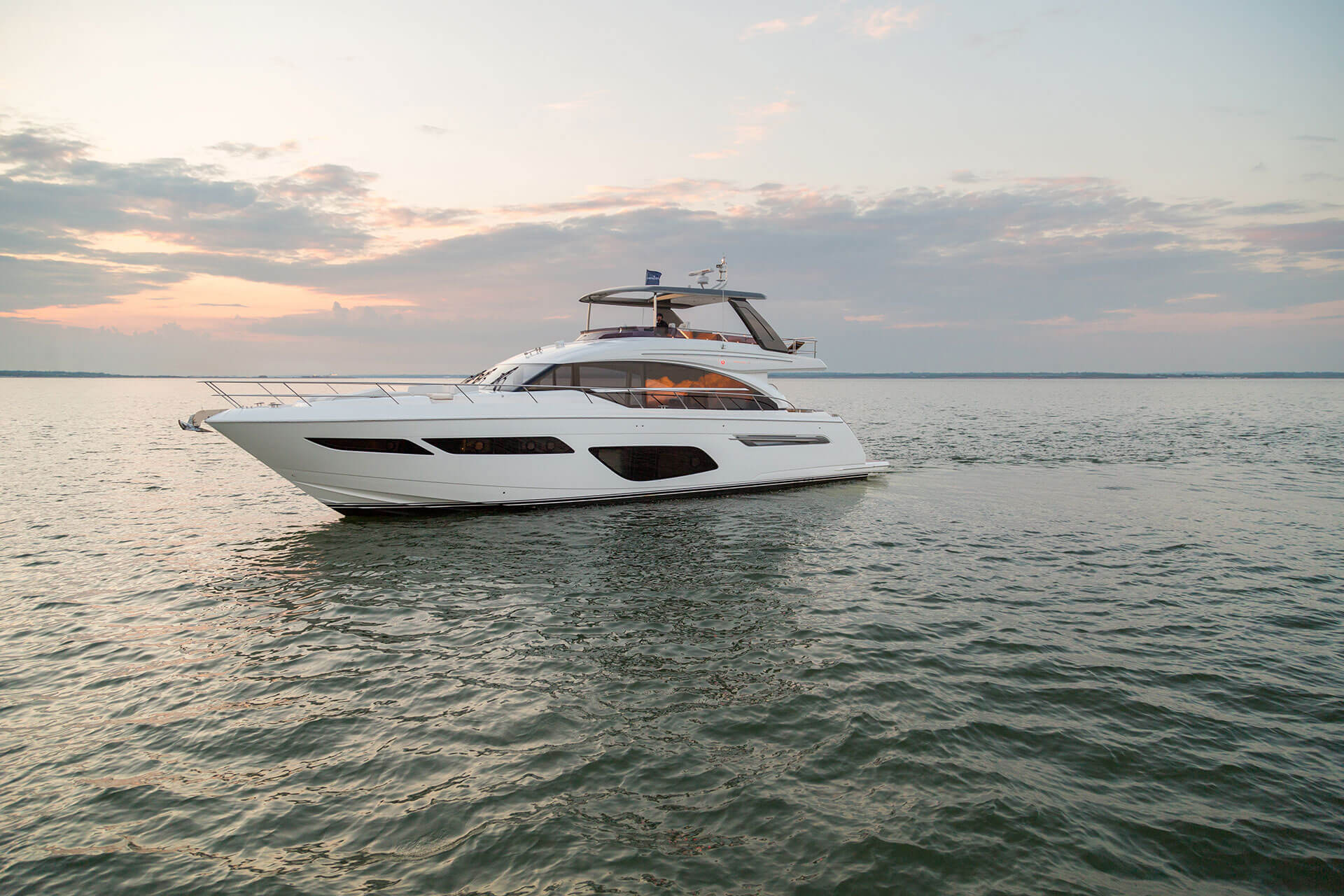

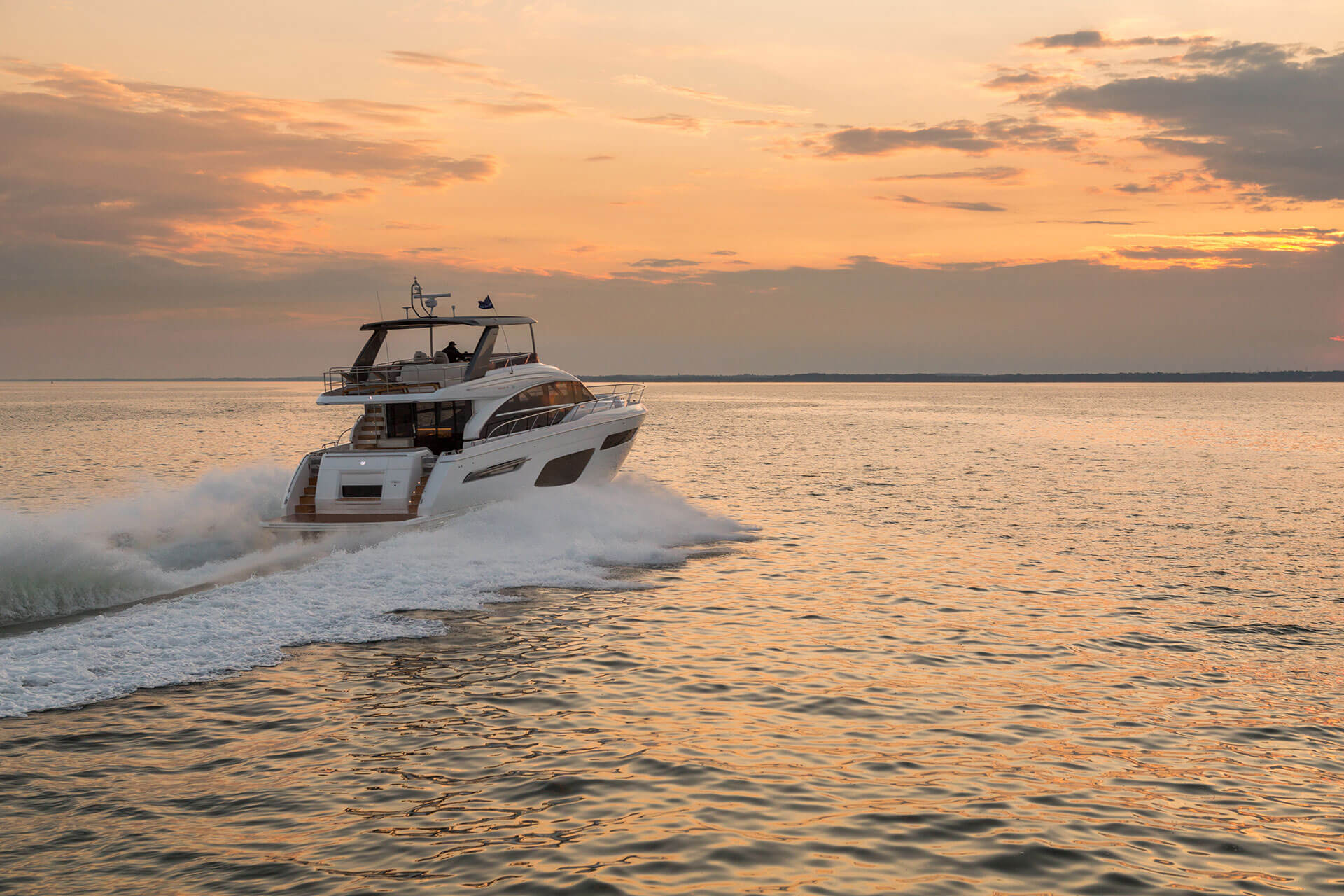

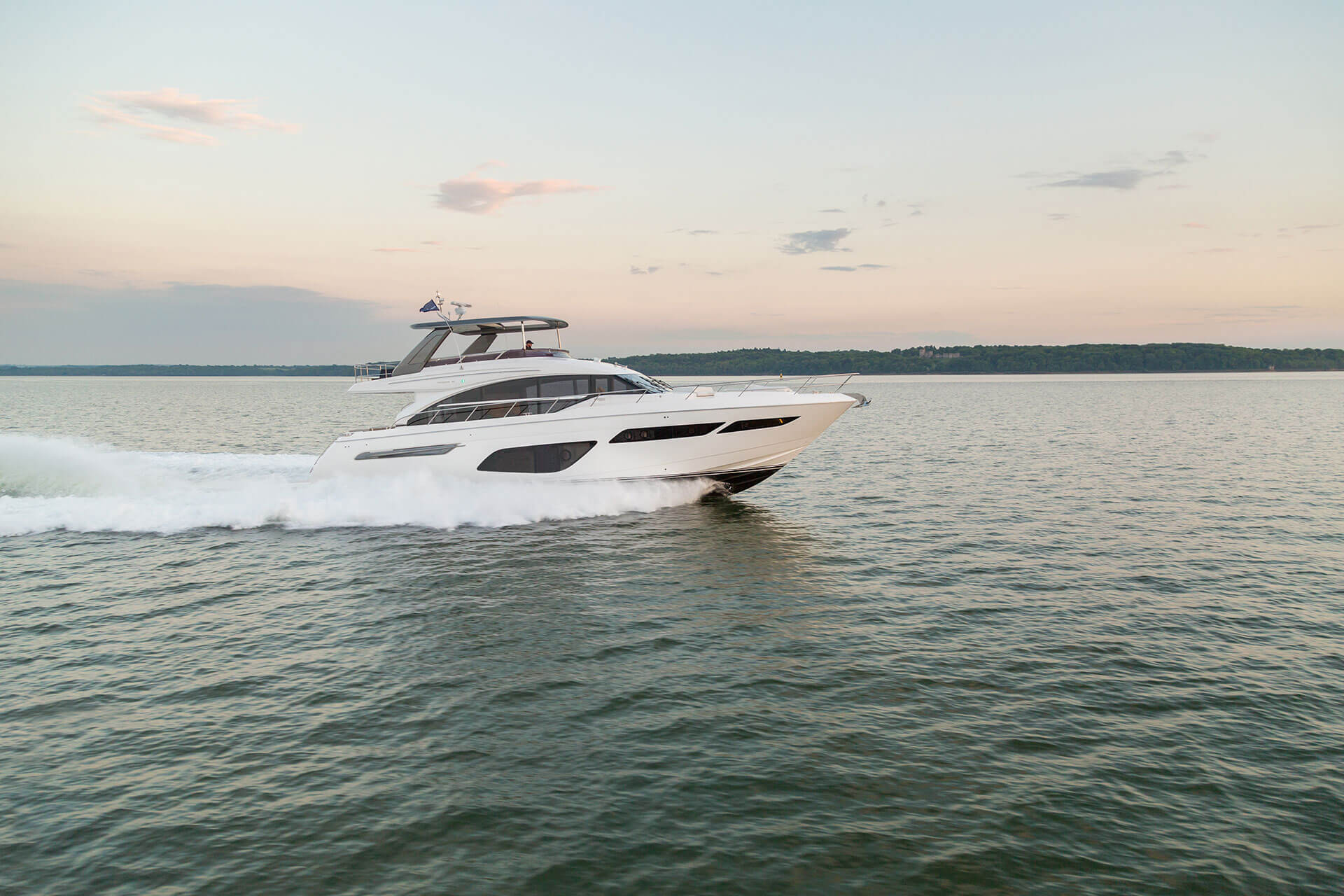

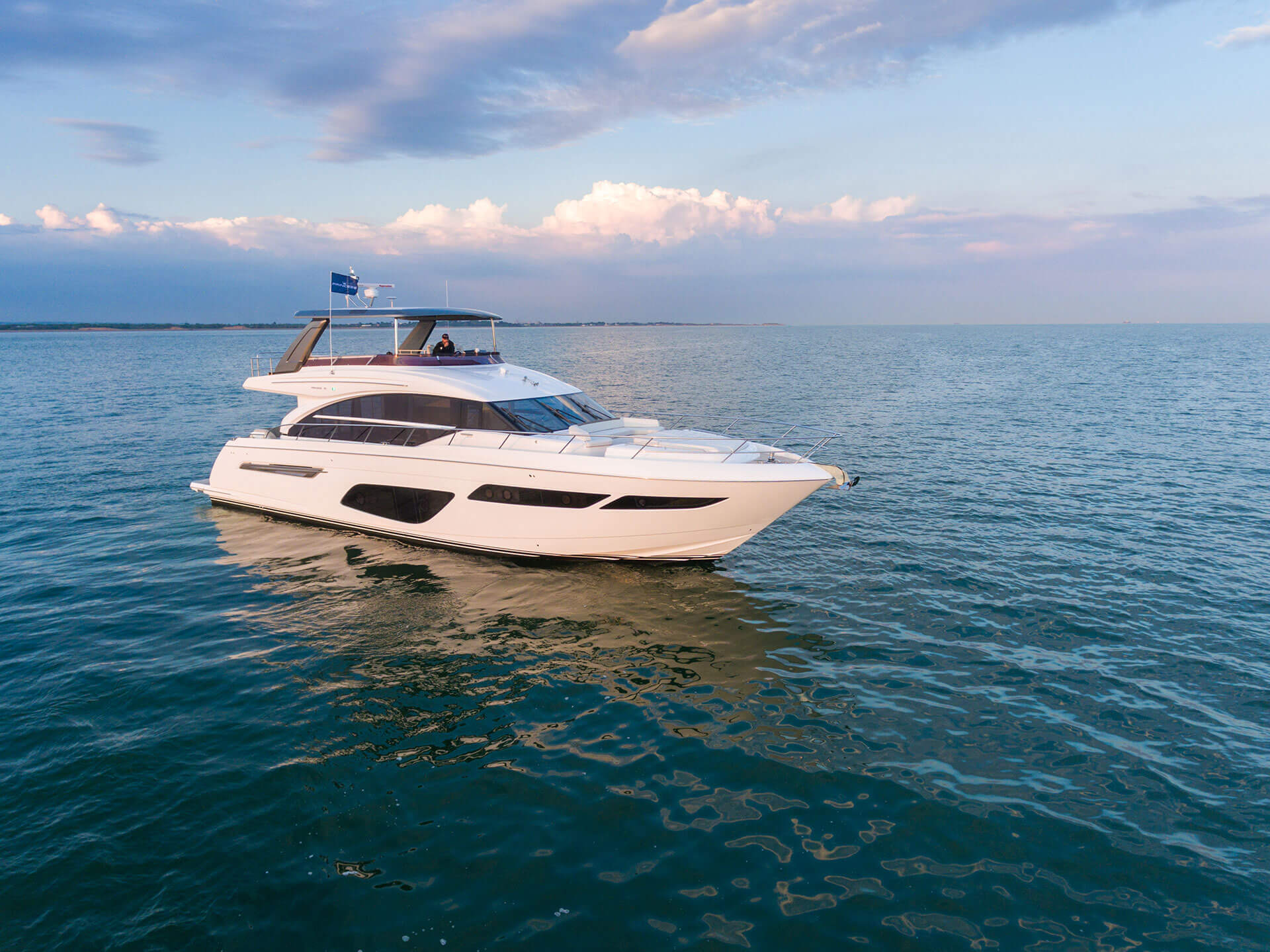

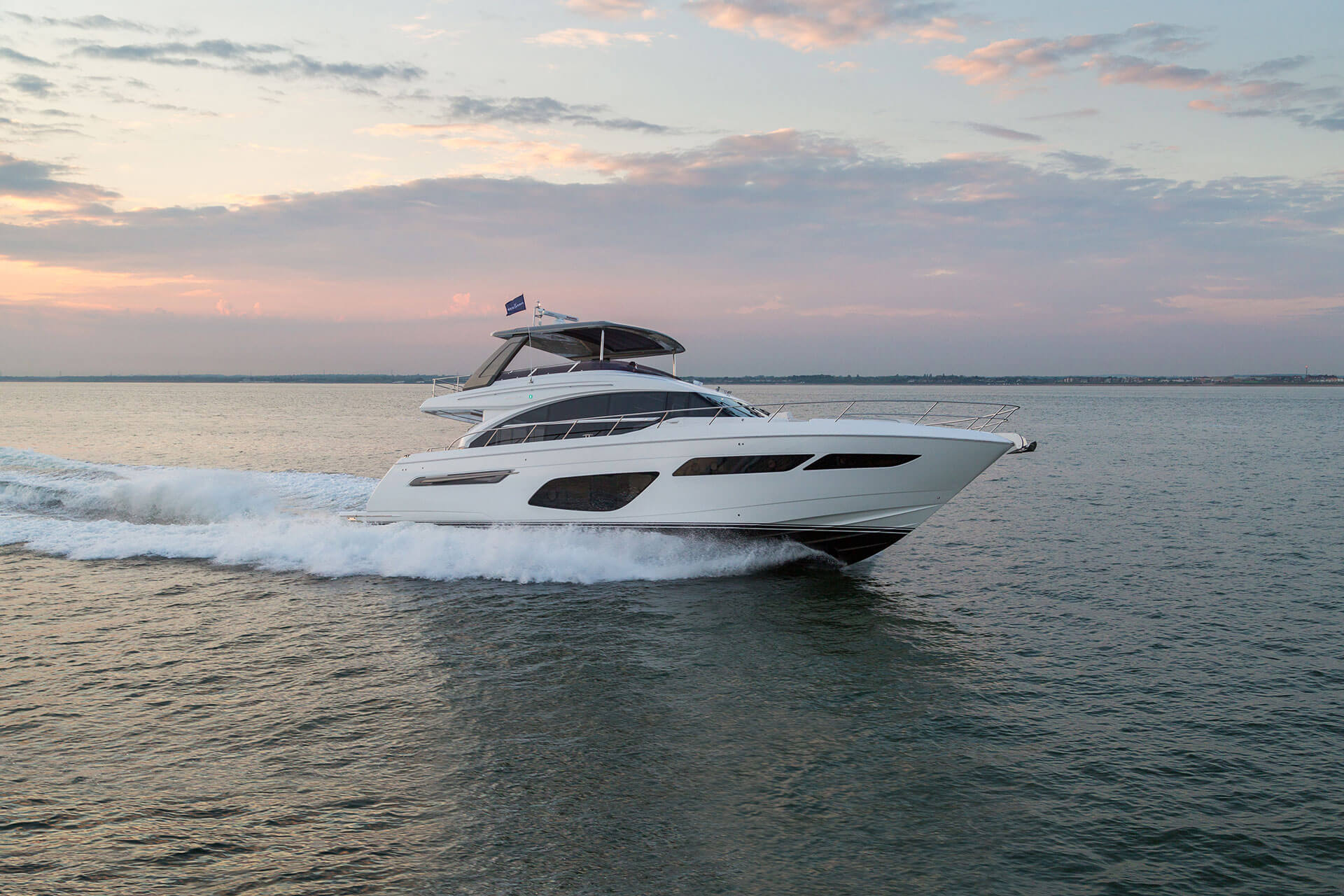

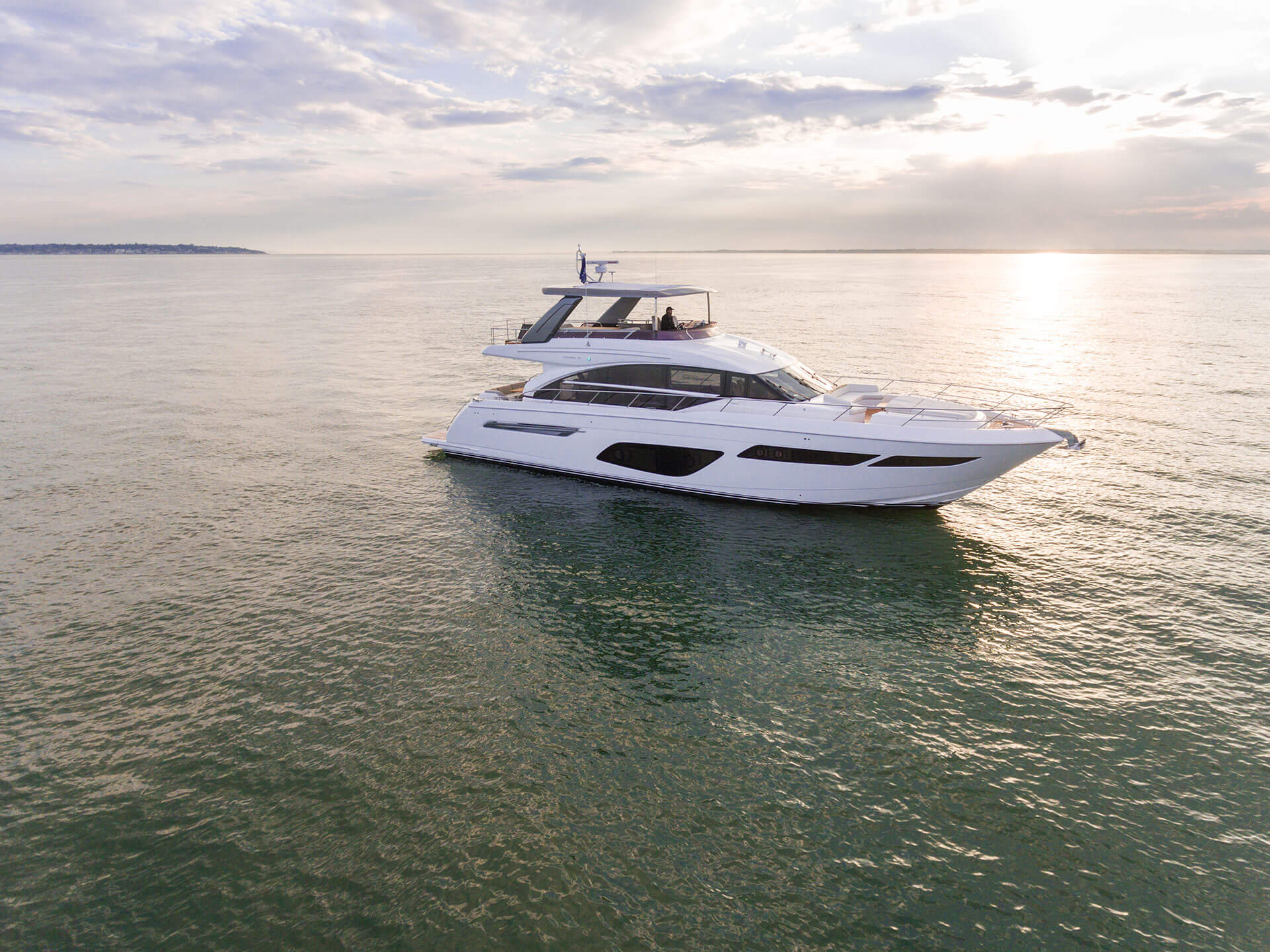

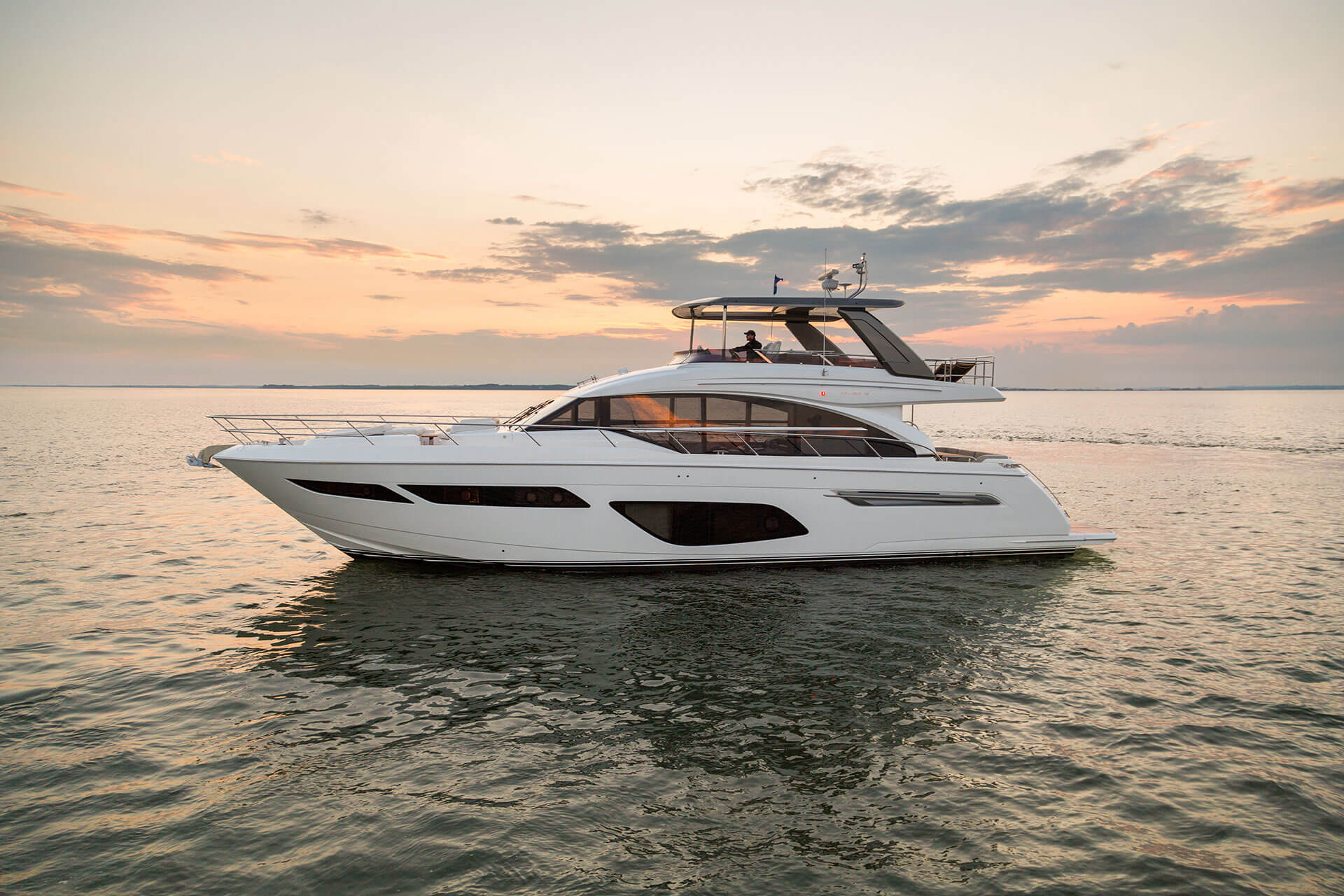

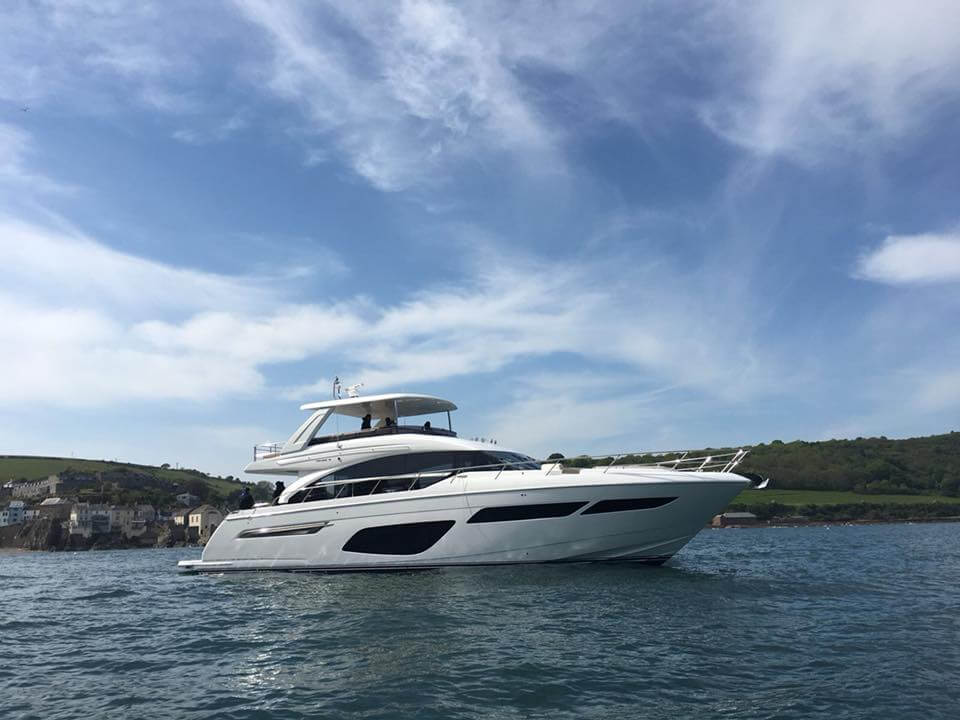

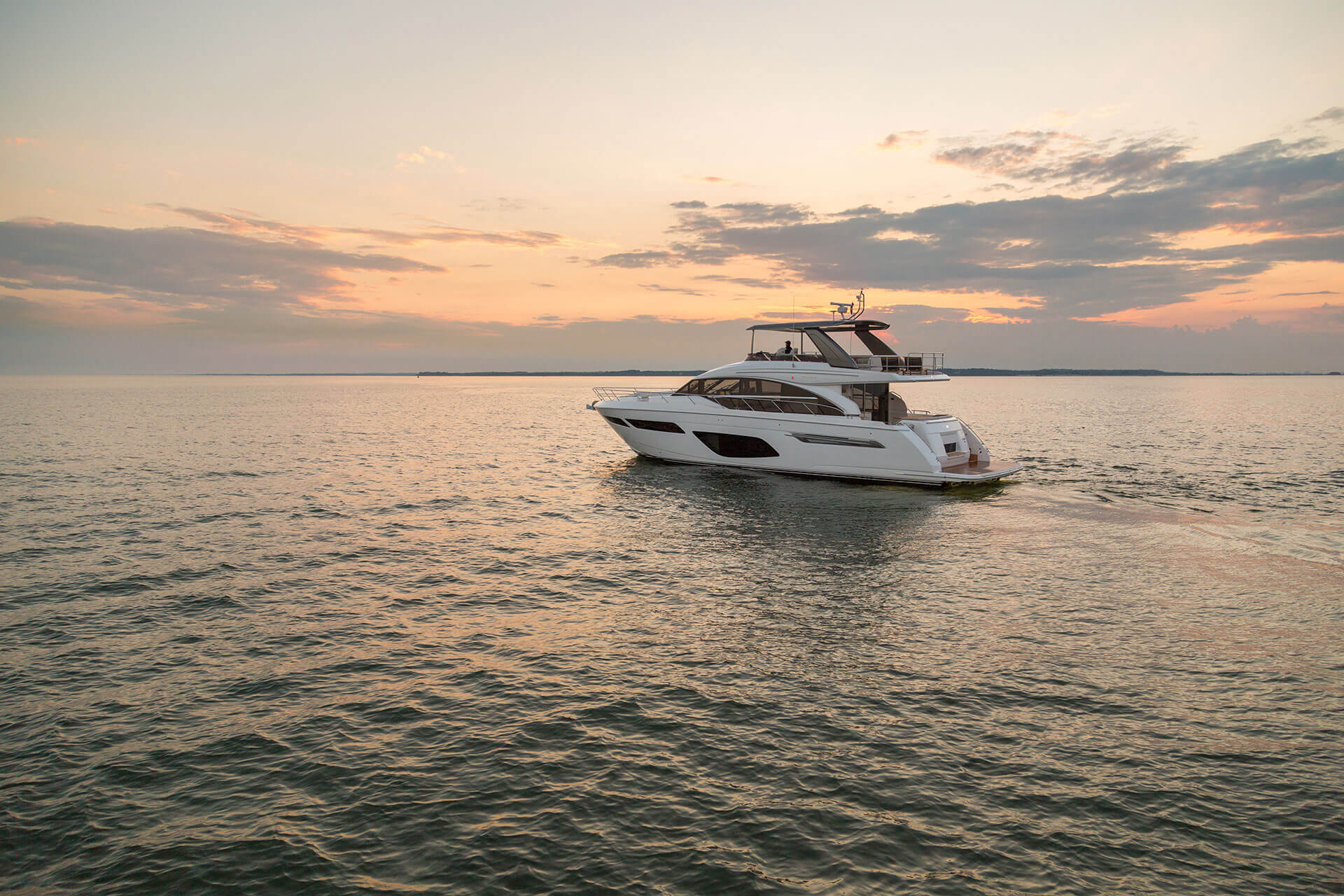

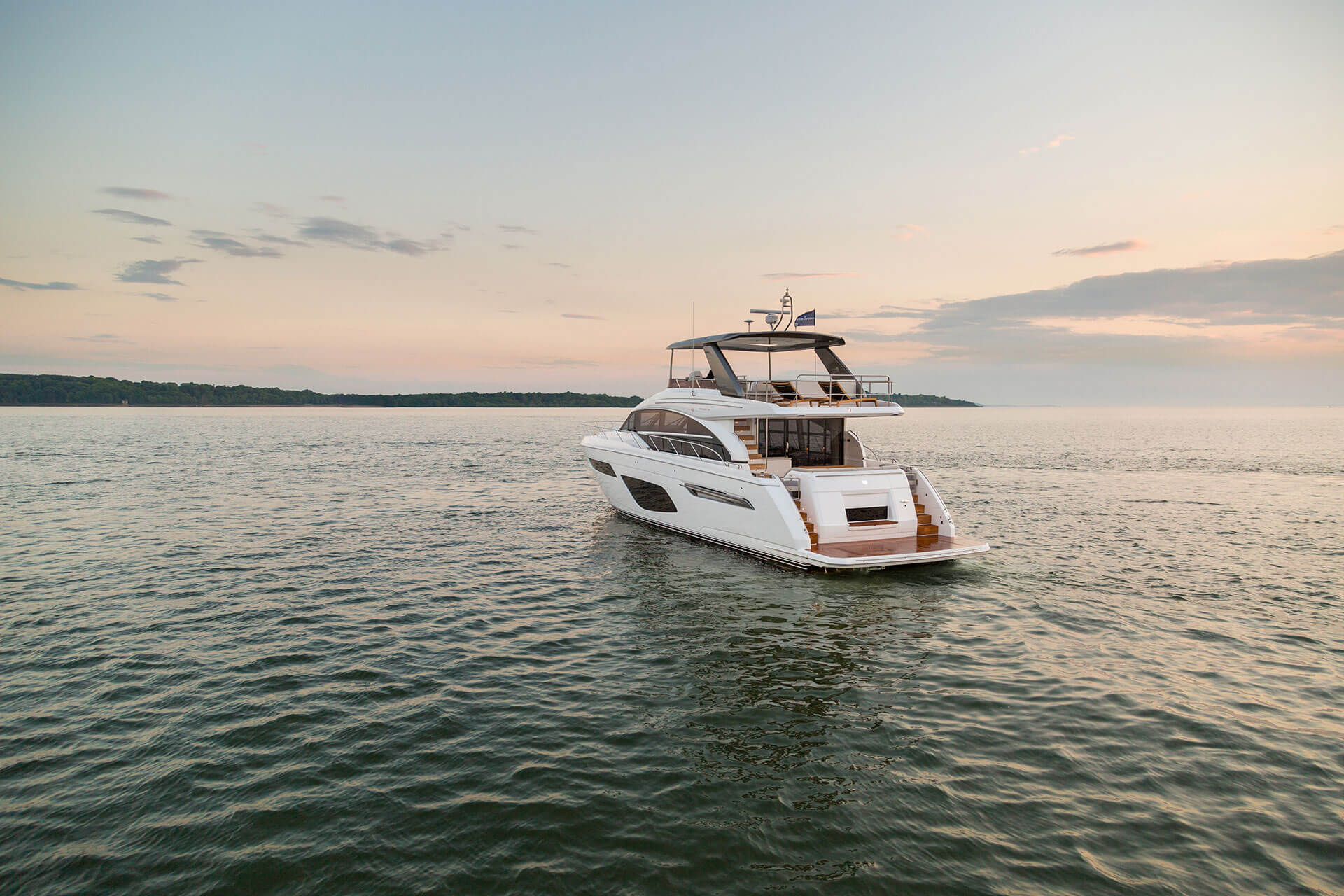

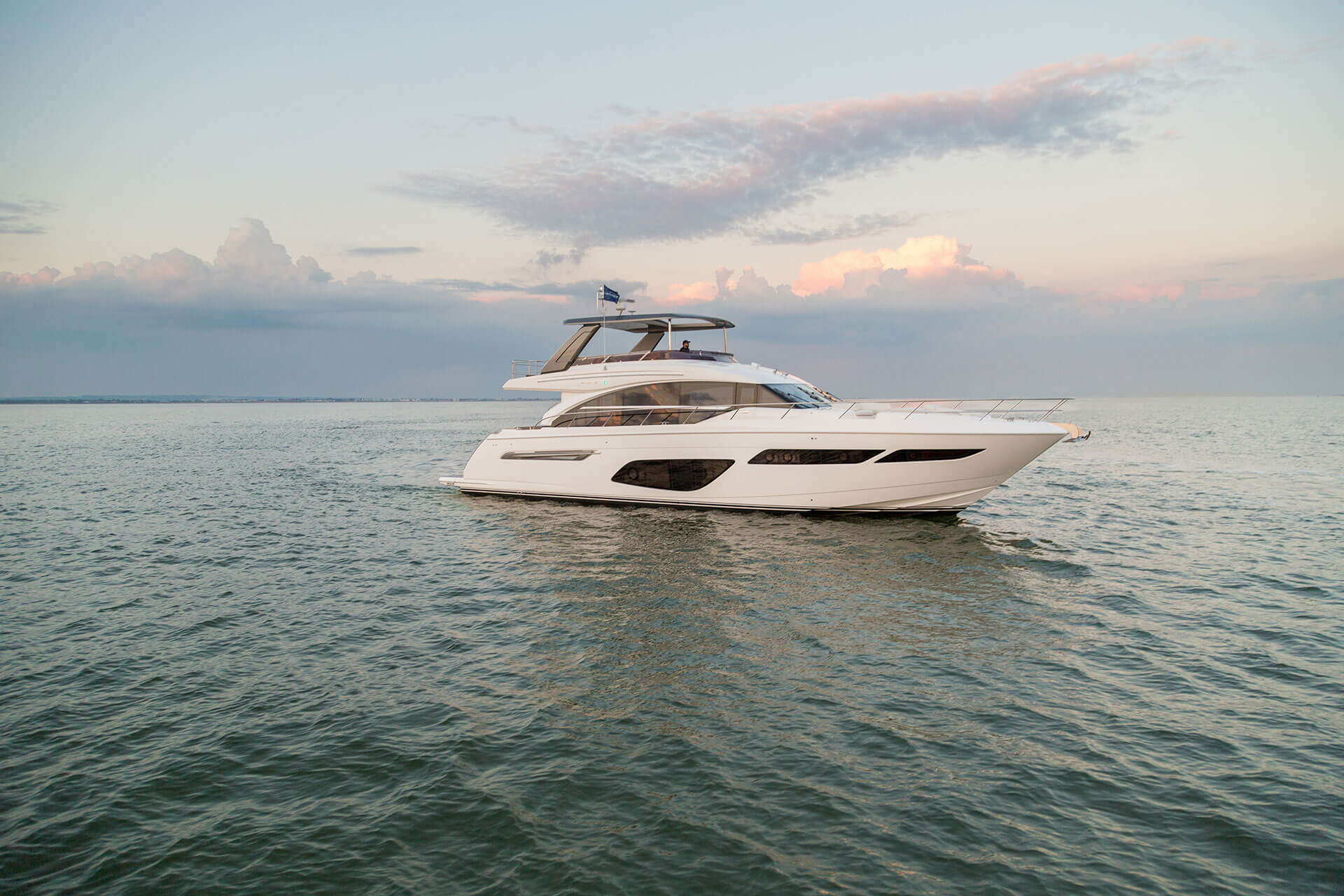

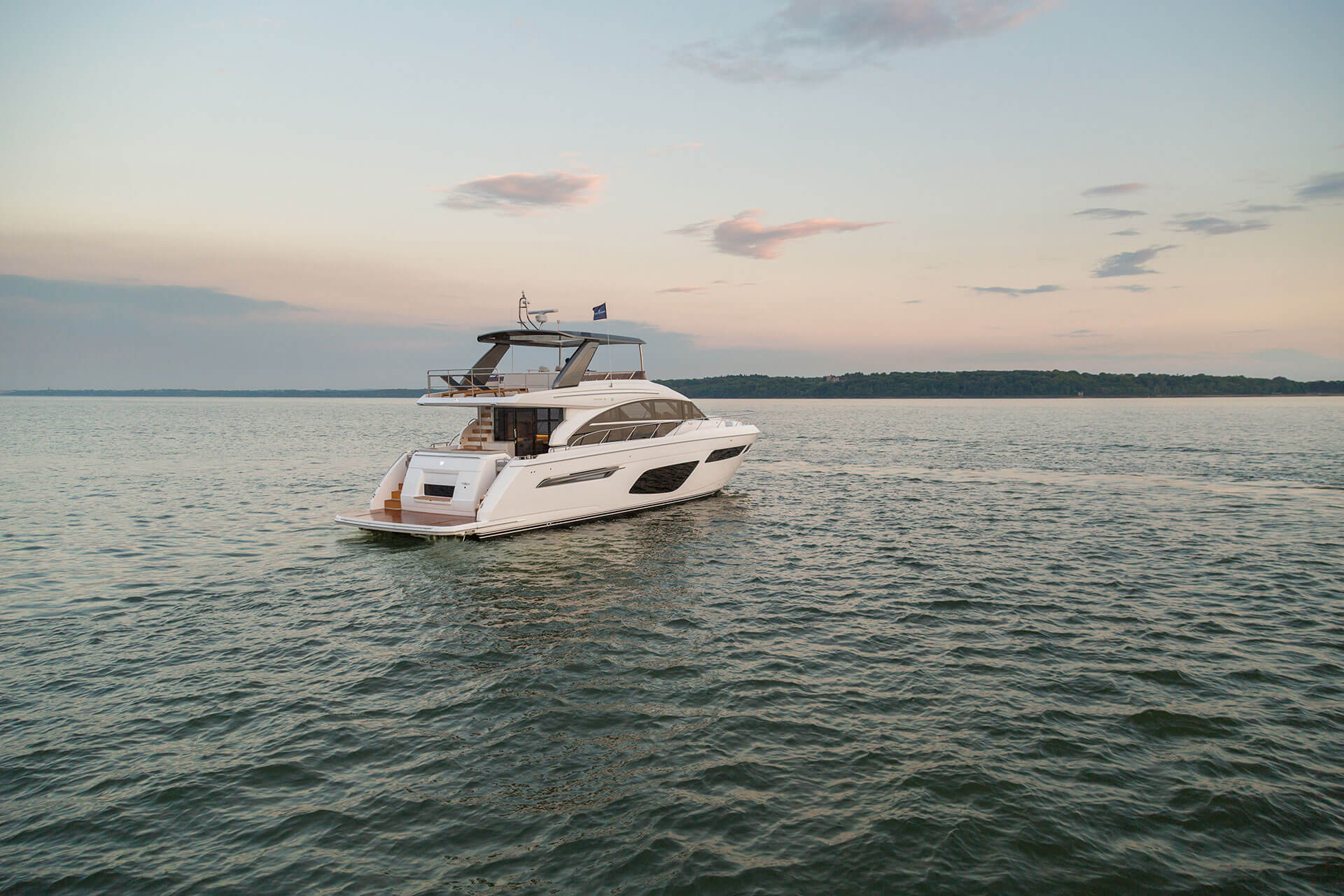

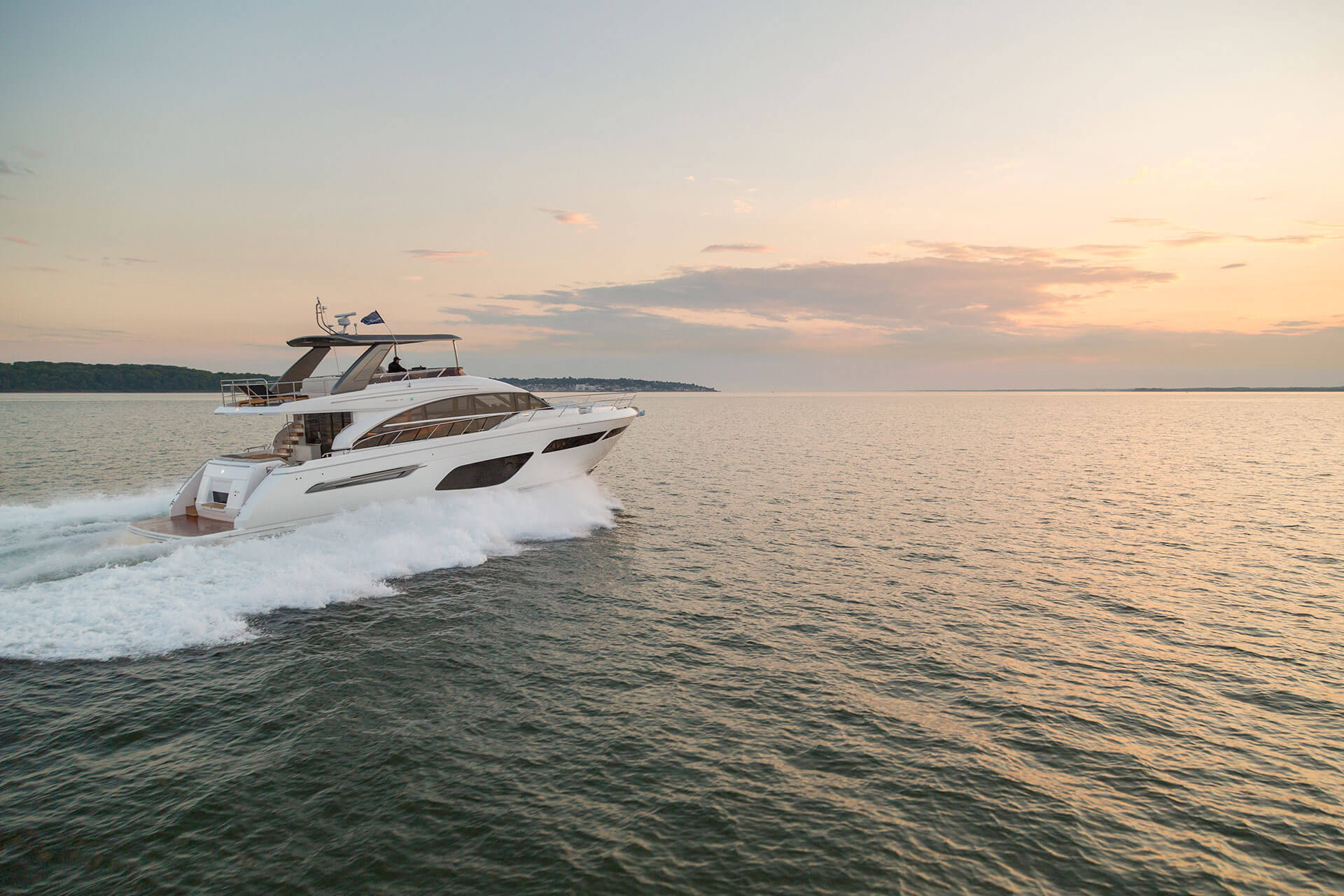

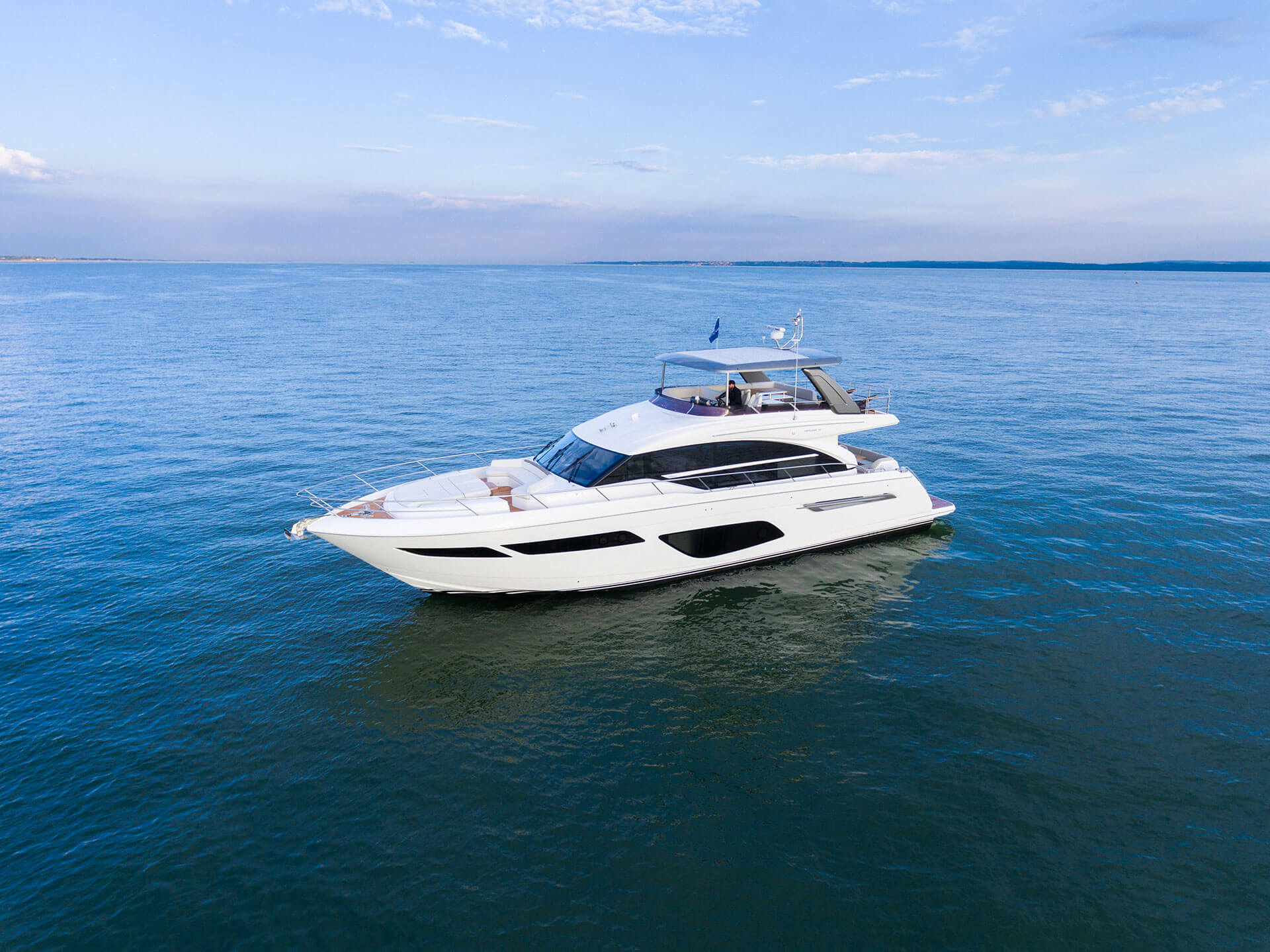

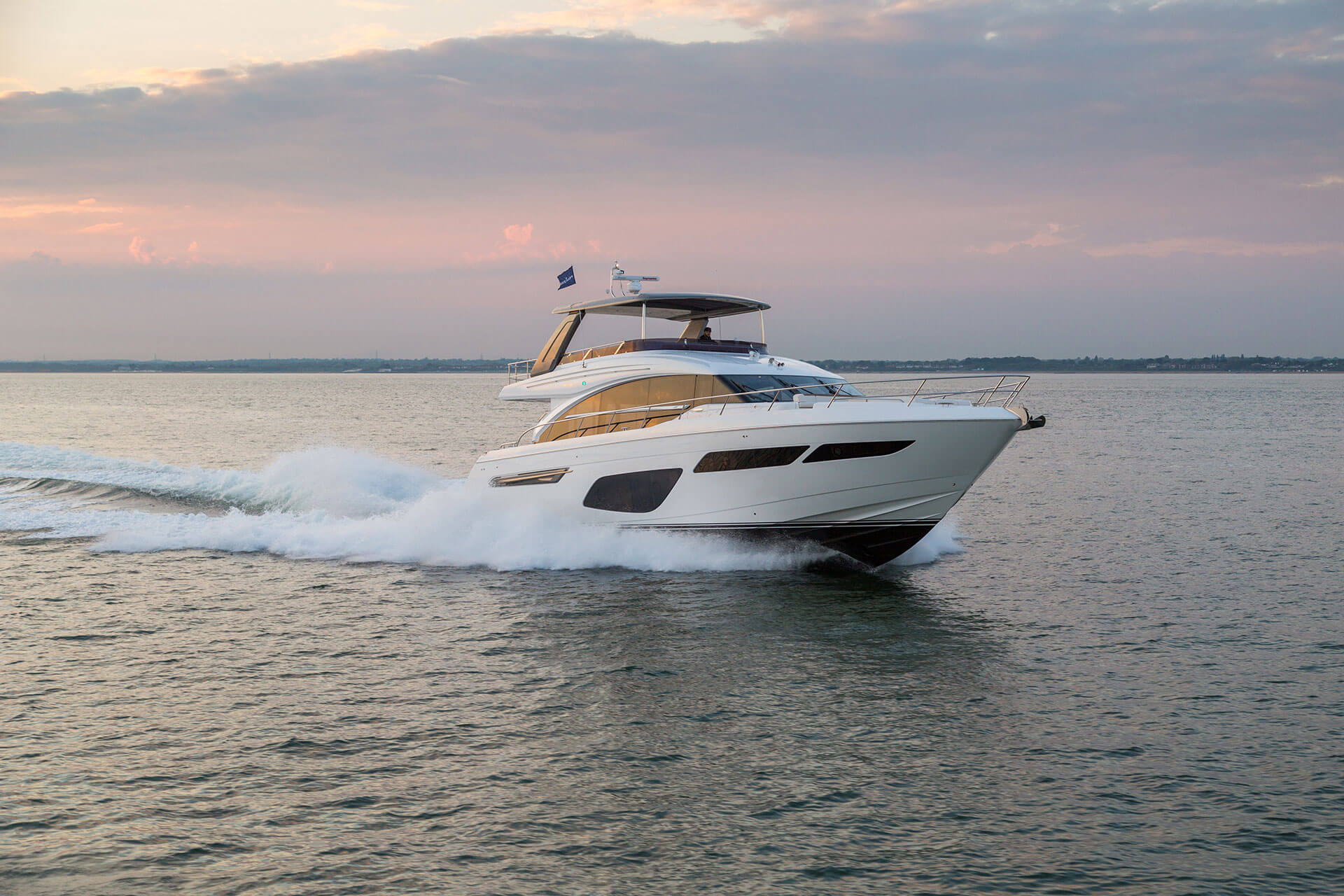

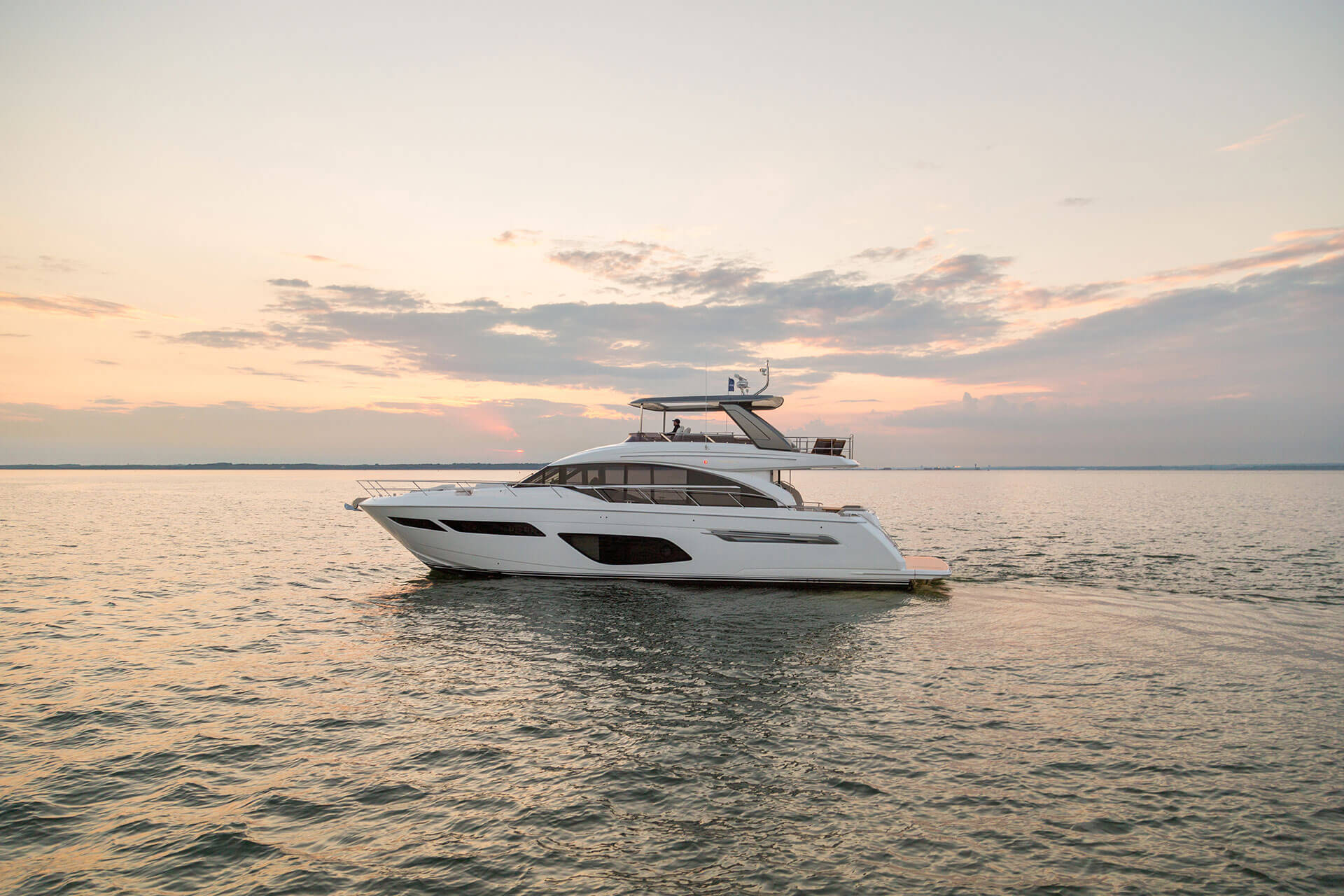

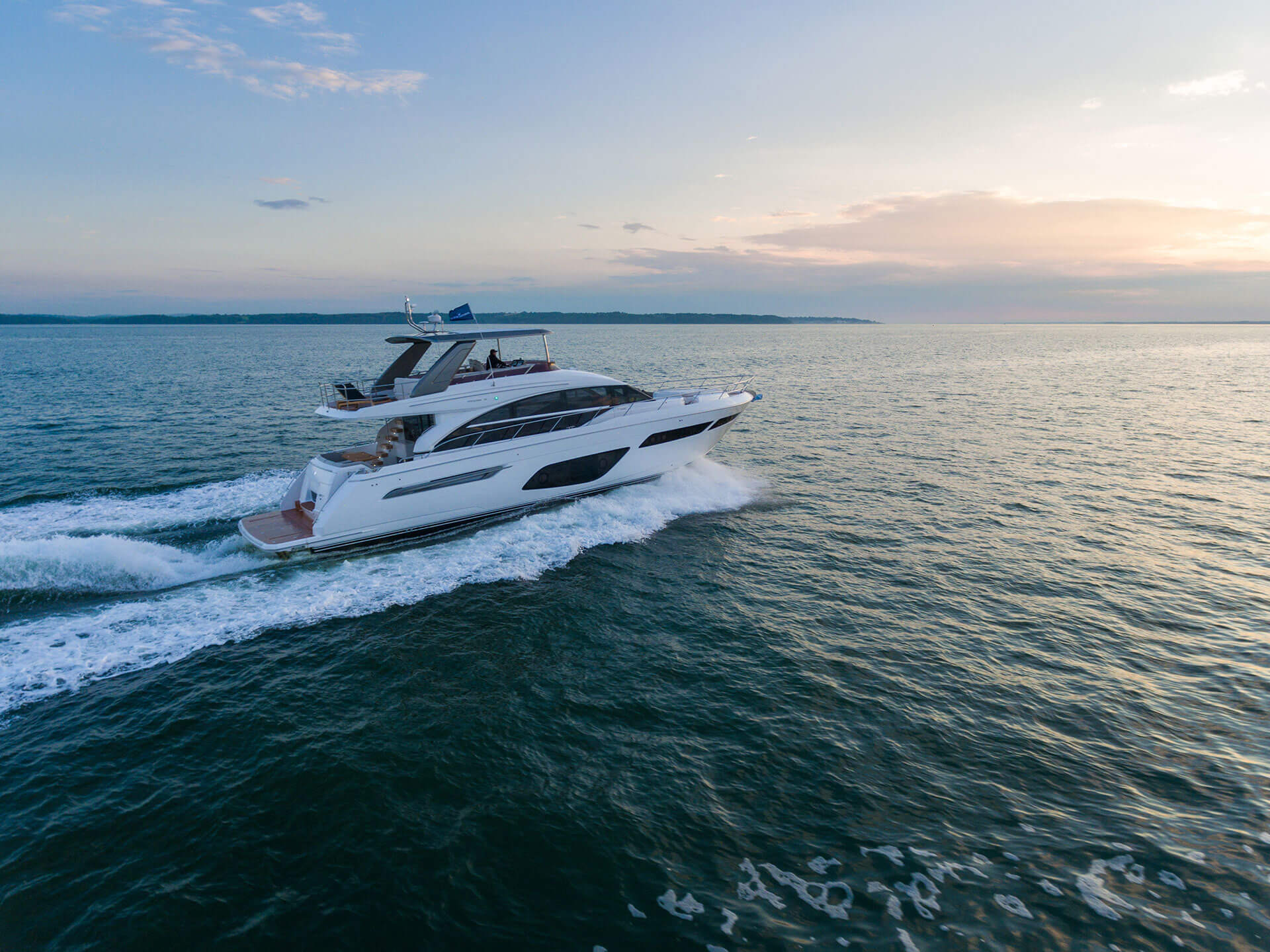

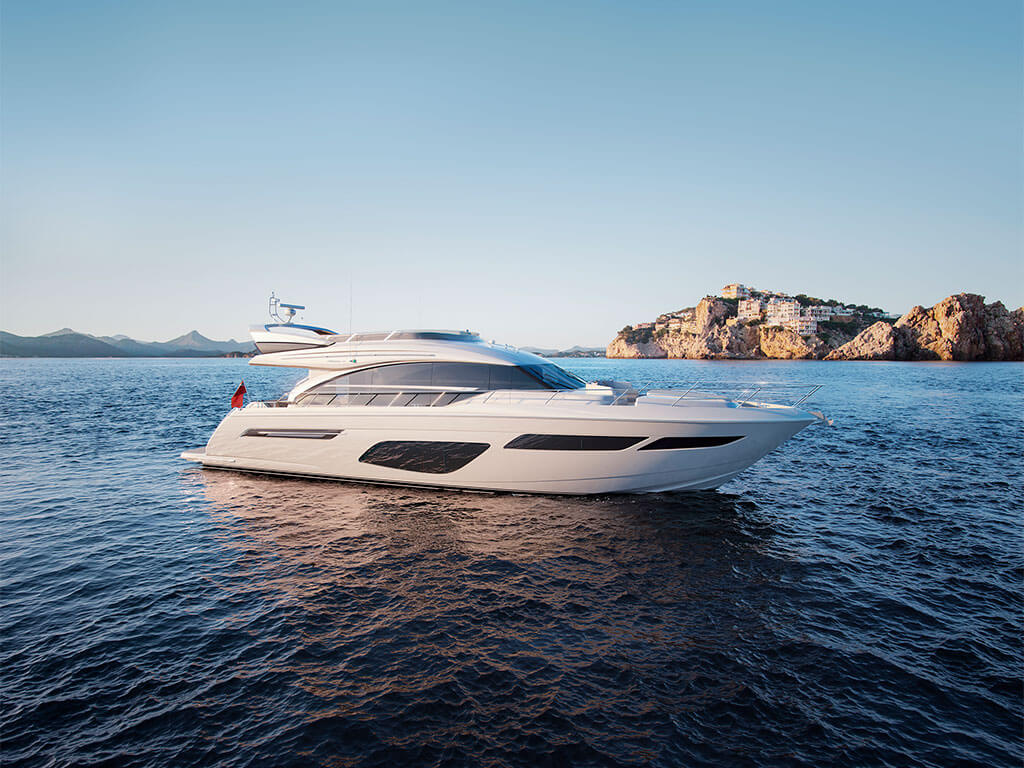

PRINCESS F70
Featuring the very latest in Princess Flybridge design and the new Allure Collection – an optional style pack featuring an array of fixtures, fittings and finishes, the all-new Princess F70 is the flagship of our flybridge range. Her generous, 26.58m2 flybridge accommodates a large U-shaped dining area, served by a fully equipped wetbar, aft sunpad and forward seating area adjacent to the helm. The social layout of her main deck features an aft galley arrangement which opens fully to the cockpit and a walkthrough foredeck area with additional sunbathing and seating areas. Out at sea, her performance feels light and responsive all the way up to speeds in excess of 36 knots. Altogether a distinctively Princess experience.
Defined by highly detailed, hand-crafted furniture and upholstery, her interior finishes play with texture and light. Soft suedes, bronze tint mirror, hand stitched detailing and Japanese wall coverings unite in perfect balance for an alluring effect. Her accommodation is all en suite. The full beam master suite has a private access stairway, whilst the forward stateroom boasts a large double bed. Two further guest cabins and an optional crew cabin feature single beds and the option to be converted to double.
GUESTS
8 berths in 4 double cabins
3 WC with separate shower cabin
CREW
2 berths in aft cabin with WC
2x MAN V8 (2 x 1,200 hp)
† Maximum speed 31-33 kn
2x MAN V12 (2 x 1,400 hp)
† Maximum speed 34-36 kn
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of us or Princess Yachts International plc.
Crafts illustrated on this website may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability.
DECK FITTINGS
• Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway and steps to side deck
• Reversible electric anchor winch with foredeck, main helm and flybridge controls
• Stemhead roller with automatic anchor launch and retrieve
• Self-stowing 40kg/88lbs Delta anchor with 40m of chain
• Twin electric stern line mooring winches
• Deck hatch access to chain locker
• Bow rope stowage locker
• Freshwater deck/anchor wash
• Stainless steel bow and stern fairleads
• Stainless-steel bow, stern and spring cleats (6)
• Stainless-steel pulpit and guard rails
• Stainless steel coachroof and flybridge handrails
• Foredeck escape hatch
• Foredeck U-shaped seating area
• Foredeck sunbathing area
• PVC rubbing band with stainless-steel insert
• LED deck level lighting
• Illuminated crown logo on transom
• Full set of IMCO navigation lights
• Riding light
• Twin beam searchlight with dual station remote controls
• Twin electric horns
• Loudhailer
• Fuel and water fillers

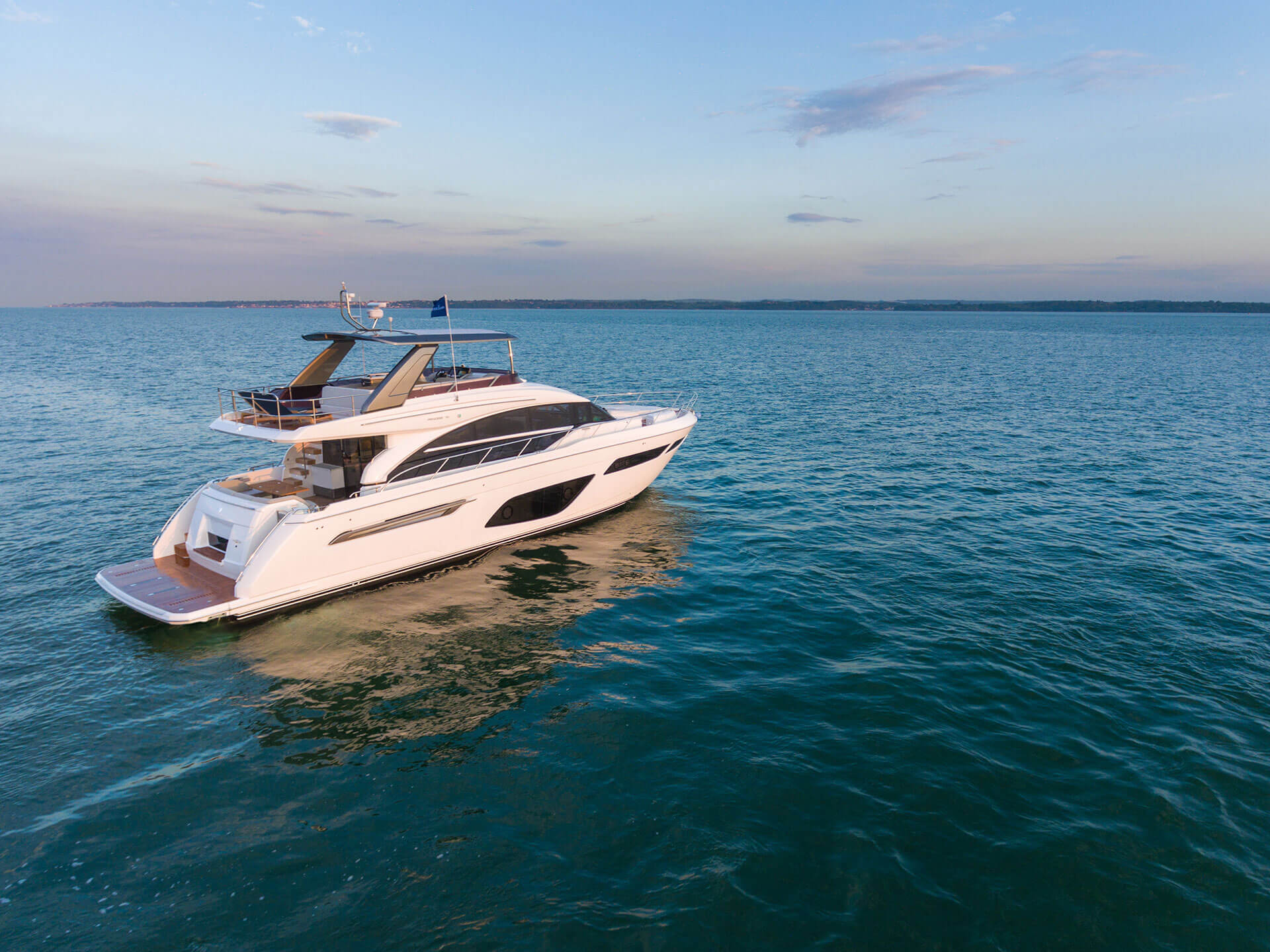

AFT COCKPIT AND BATHING PLATFORM
• Self-draining
• Upholstered seating
• Teak table
• LED overhead and deck level lighting
• Stainless-steel handrails
• Pantograph door to aft lazarette/optional crew cabin
• Lockable gas strut assisted hatch to engine room/lazarette
• Liferaft stowage locker
• Rope storage lockers
• Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
• Integral stairway to flybridge with teak step treads
• Fender stowage locker
• Twin transom gates leading to bathing platform
• Electro-hydraulic raise/lower teak laid bathing platform (550Kg SWL)
• Retractable bathing ladder (manual) in side of hydraulic platform
• Swim platform transom seat in teak with stowage locker
• Transom steps to access stern from bathing platform when in lowered position Dinghy chock system
• Hot and cold transom shower
• 220/240v shore support inlet
• Cockpit cover
FLYBRIDGE
• Dual station instruments and controls (see Lower Helm Position)

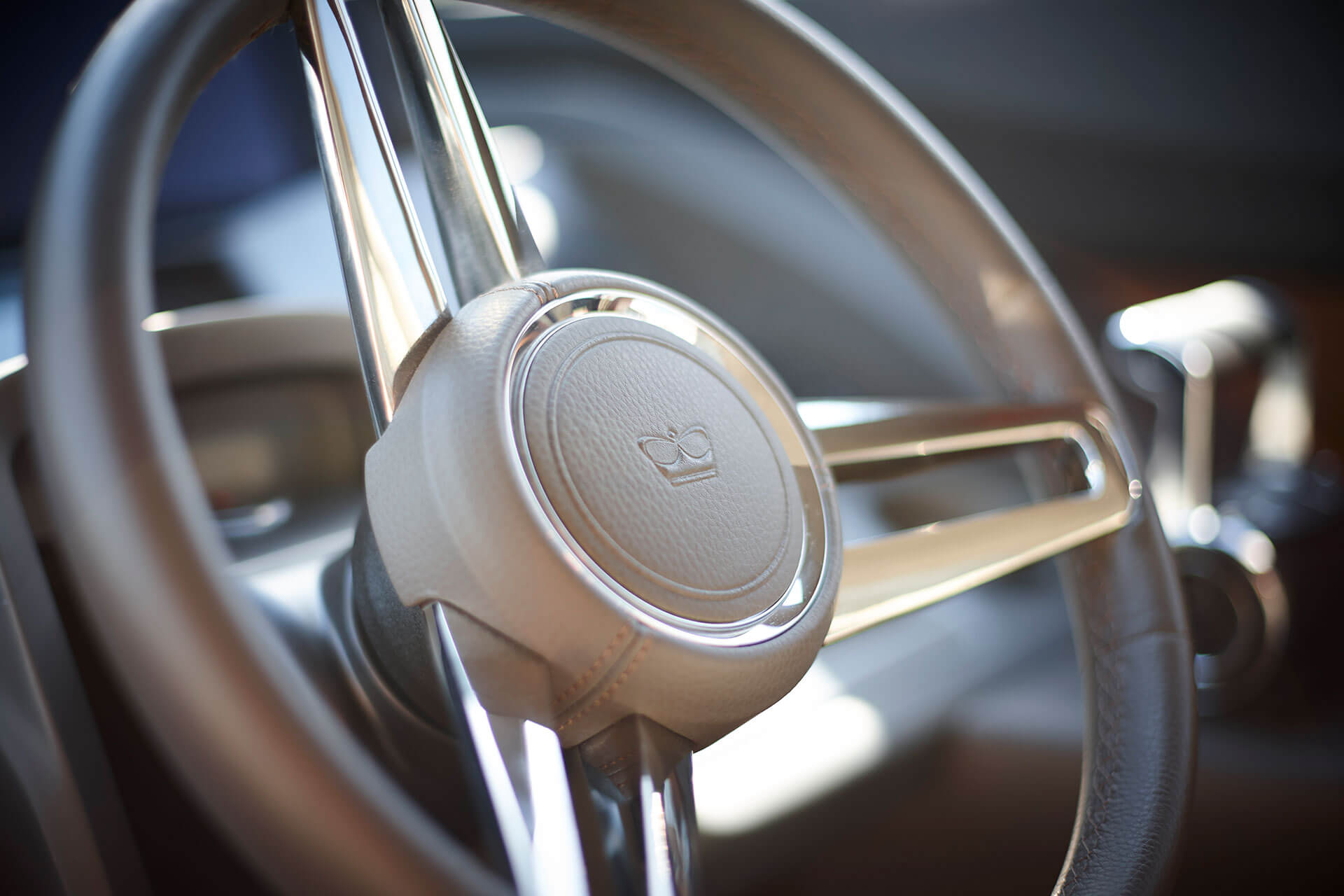

• Adjustable steering wheel
• Audible and visual alarm for bilge pumps
• Twin helm seats with fore and aft adjustment for helmsman
• Top opening storage locker at helm position
• L-shaped wetbar with barbecue, sink, drawer fridge, waste bin and storage
• Large U-shaped upholstered seating
• Teak table
• L-shaped seat (converts to sun bed)
• Raised sun bed aft with storage below
• Radio/MP3 with waterproof speakers
• Clear view hatch to aft cockpit
• Wind deflector screens
• Stainless-steel handrails
• LED deck level lighting
• GRP radar arch
• Twin matching whip aerials for VHF R/T and radio
• Console and seat covers
• Optional GRP hardtop with/without electric opening
• Optional bimini with/without electro hydraulic operation (NB. Flybridge crane optionally available when hardtop is fitted)

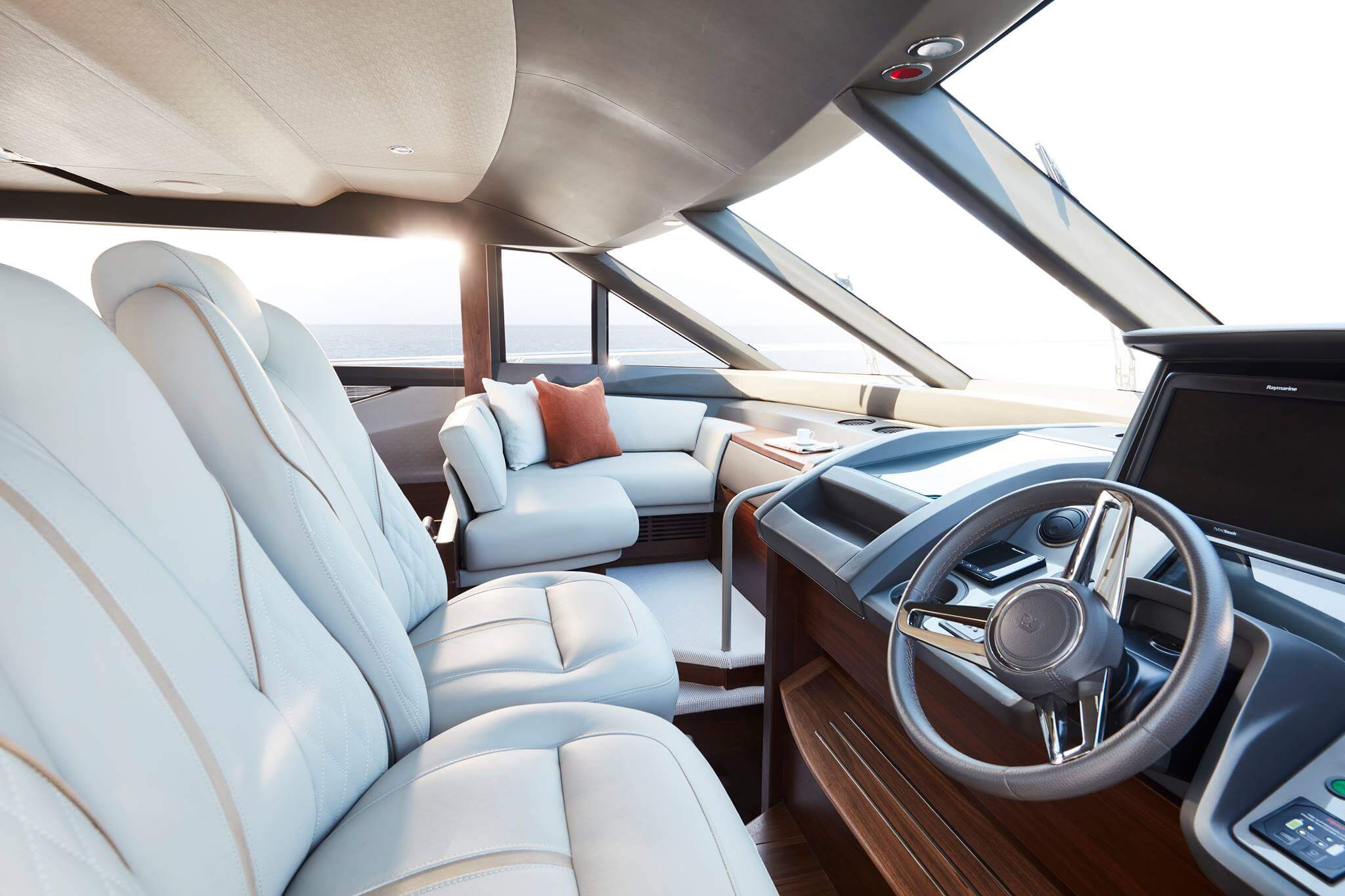

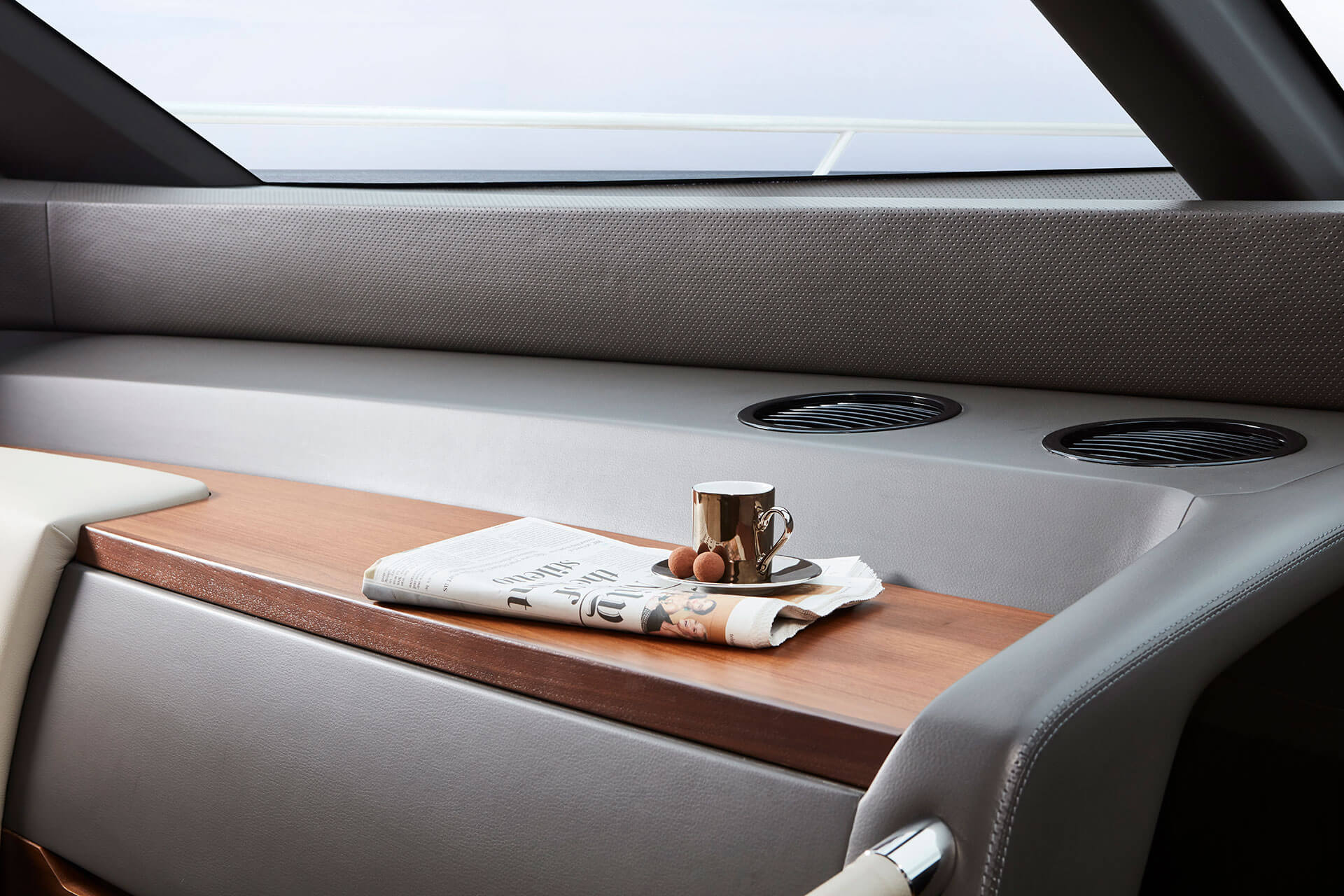

LOWER HELM POSITION

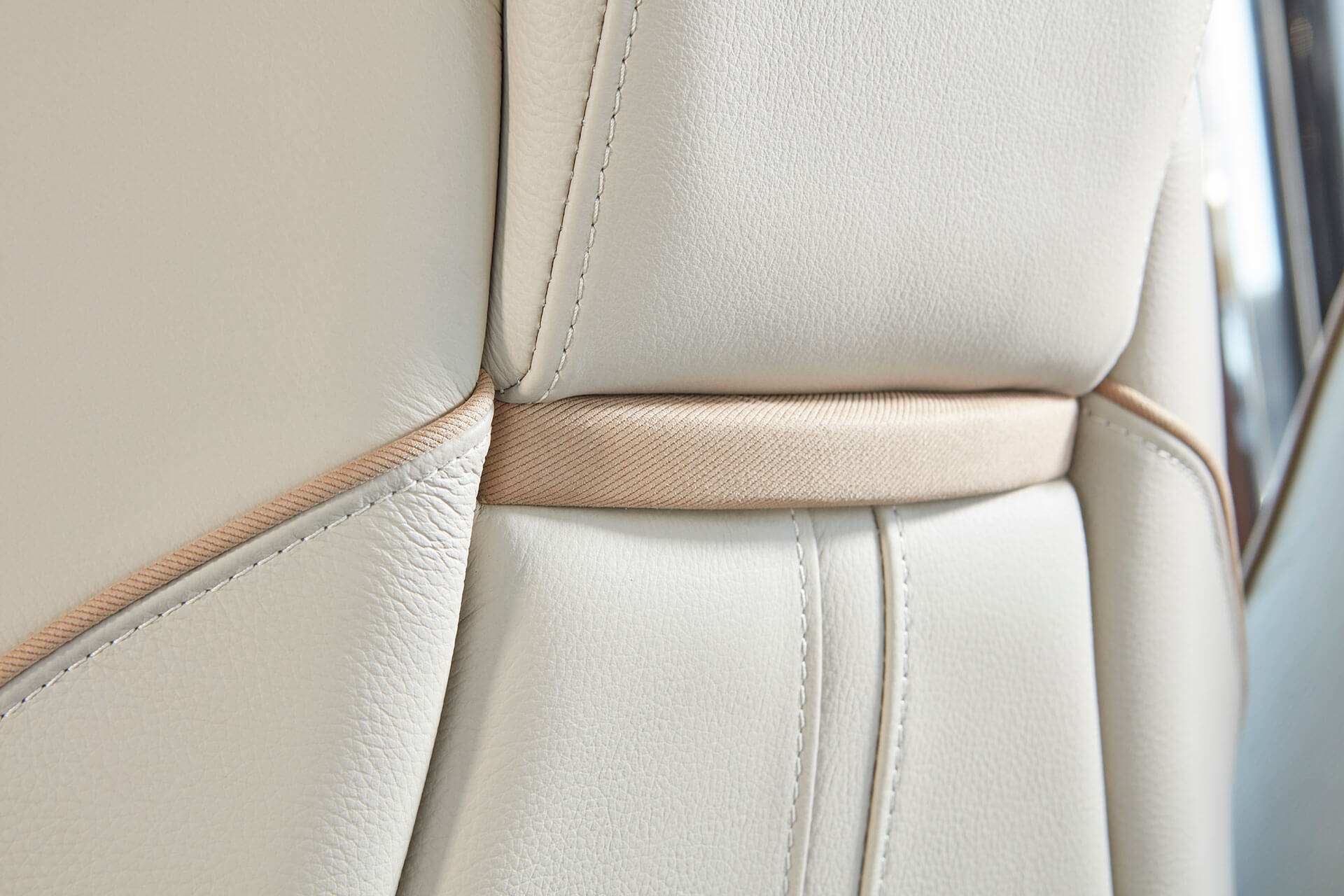

• Twin helm seats with fore and aft adjustment for helmsman
• Instrument console with engine instruments and fuel gauges
• Colour radar and GPS/chartplotter
• Dual station instruments and controls at Flybridge and Lower Helm Positions:
• power-assisted electro-hydraulic steering

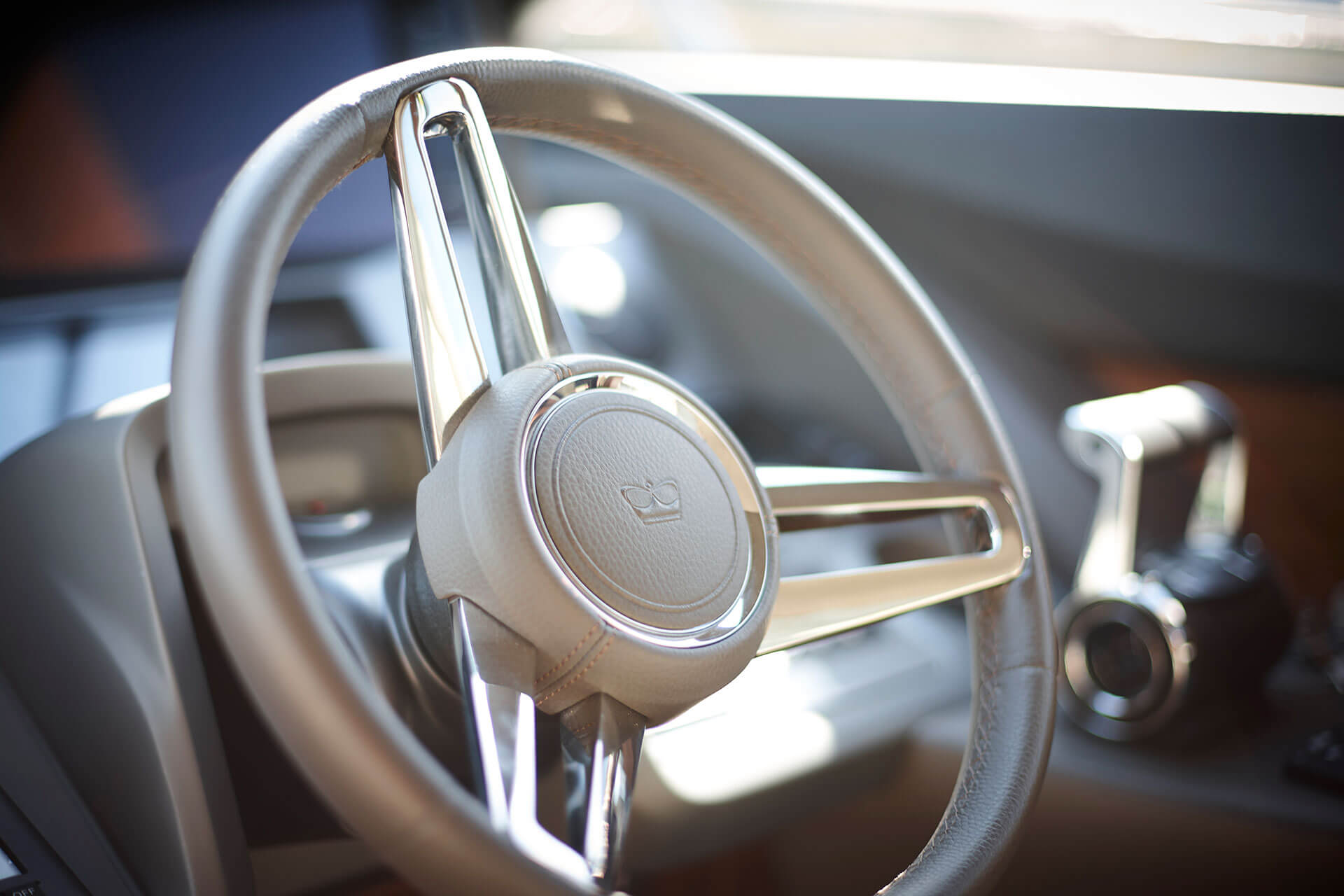

• adjustable steering wheel
• rudder position indicator
• high-speed magnetic compass
• electronic engine controls
• trim tab controls with indicators
• bow thruster control
• electric anchor winch remote control
• autopilot
• speed and distance log
• echo sounder with alarm
• VHF with DSC R/T with intercom
• remote control searchlight
• horn button
• Chart table with light and chart stowage
• Drinks holders
• Toughened glass screen (clear for night vision)
• Windscreen wipers with freshwater windscreen wash
• Black mesh sunscreens
• Bilge pump controls with visual pump running warnings
• 24v and 240v electrical control panel
• Riding light, helm and navigation light control switches
• 12v outlet
• LED overhead lighting (24V) and night lighting
• Pantograph helmsman’s door to starboard side deck
• Timber flooring

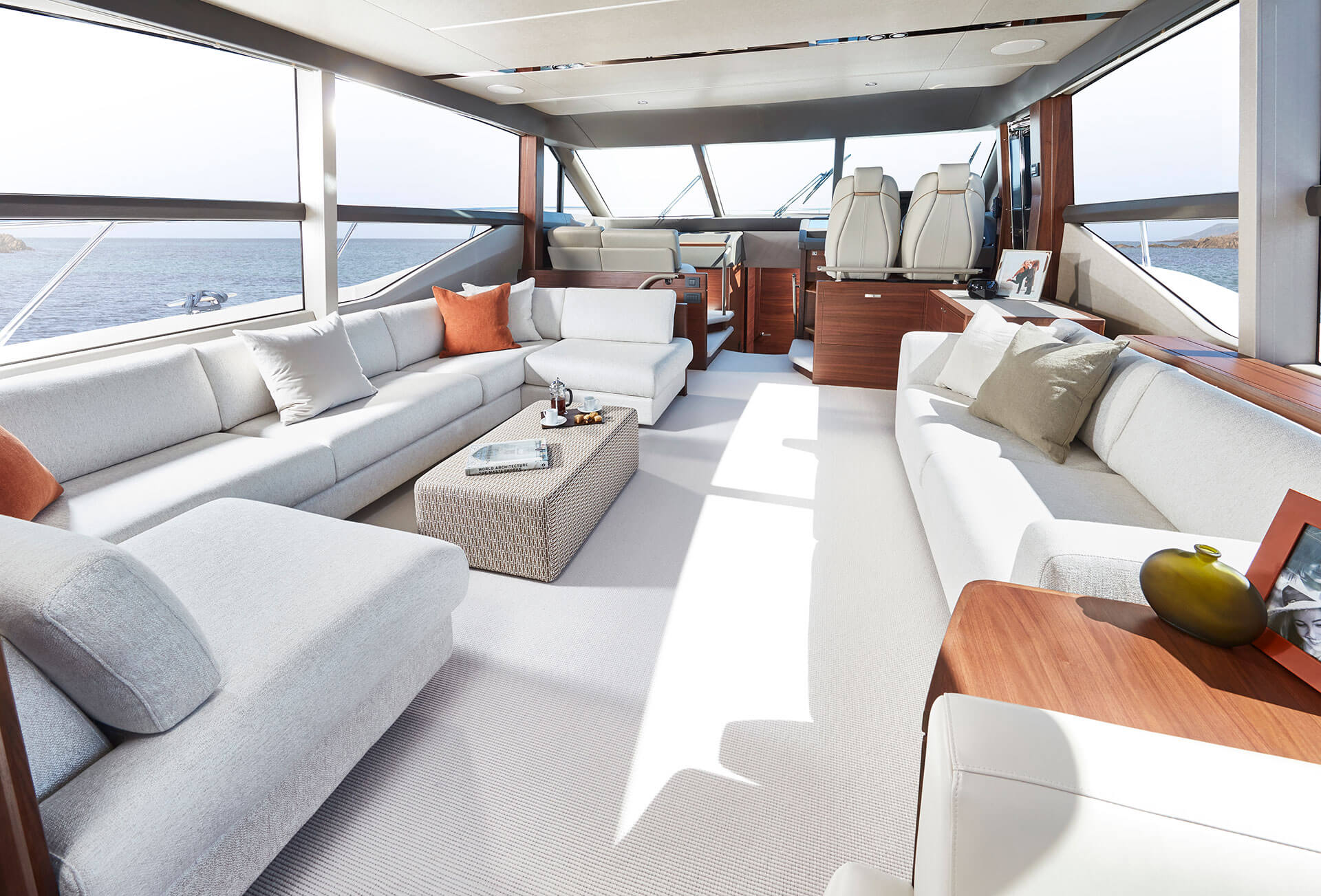

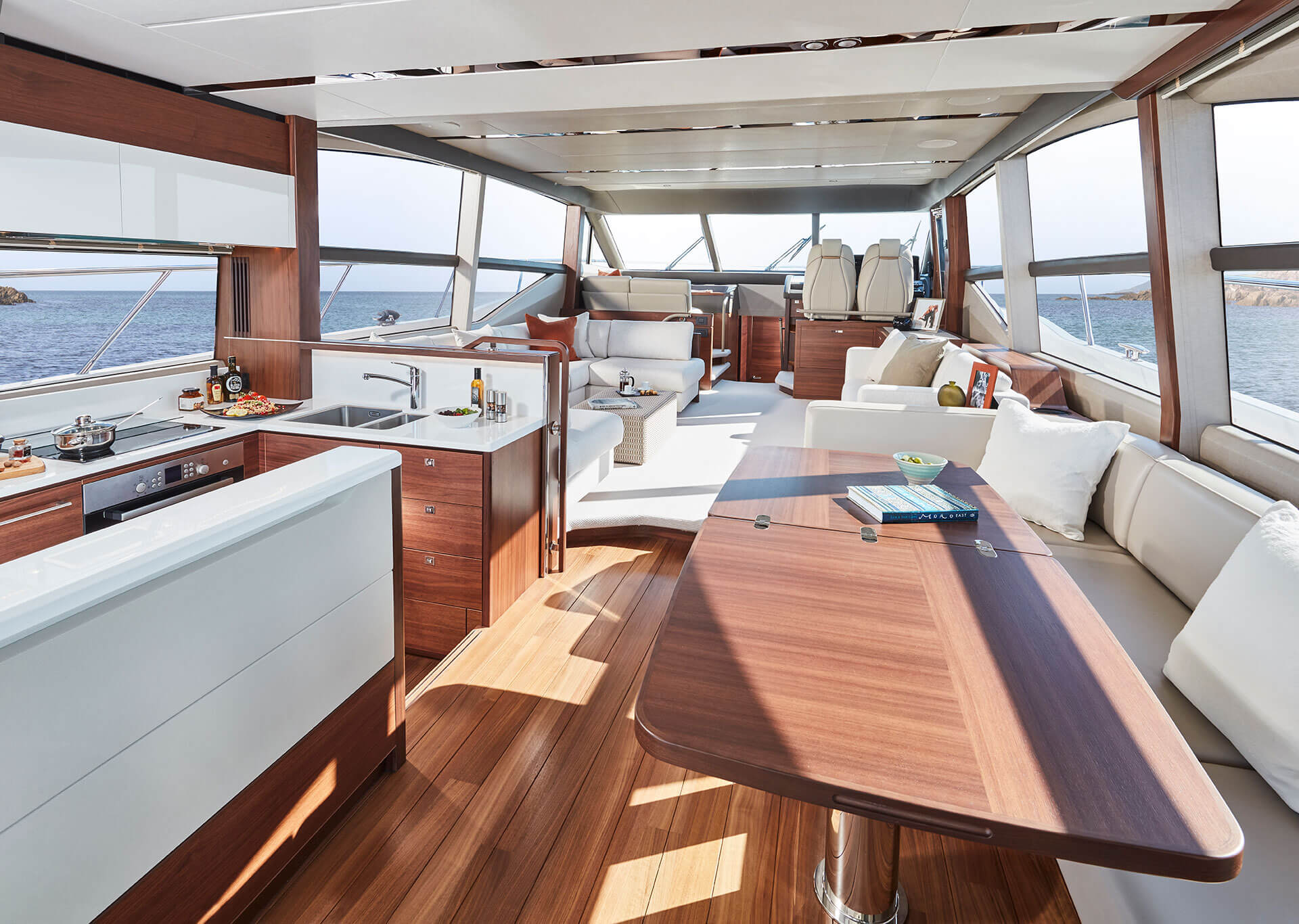

DECK SALOON
• U-shaped sofa
• Coffee table

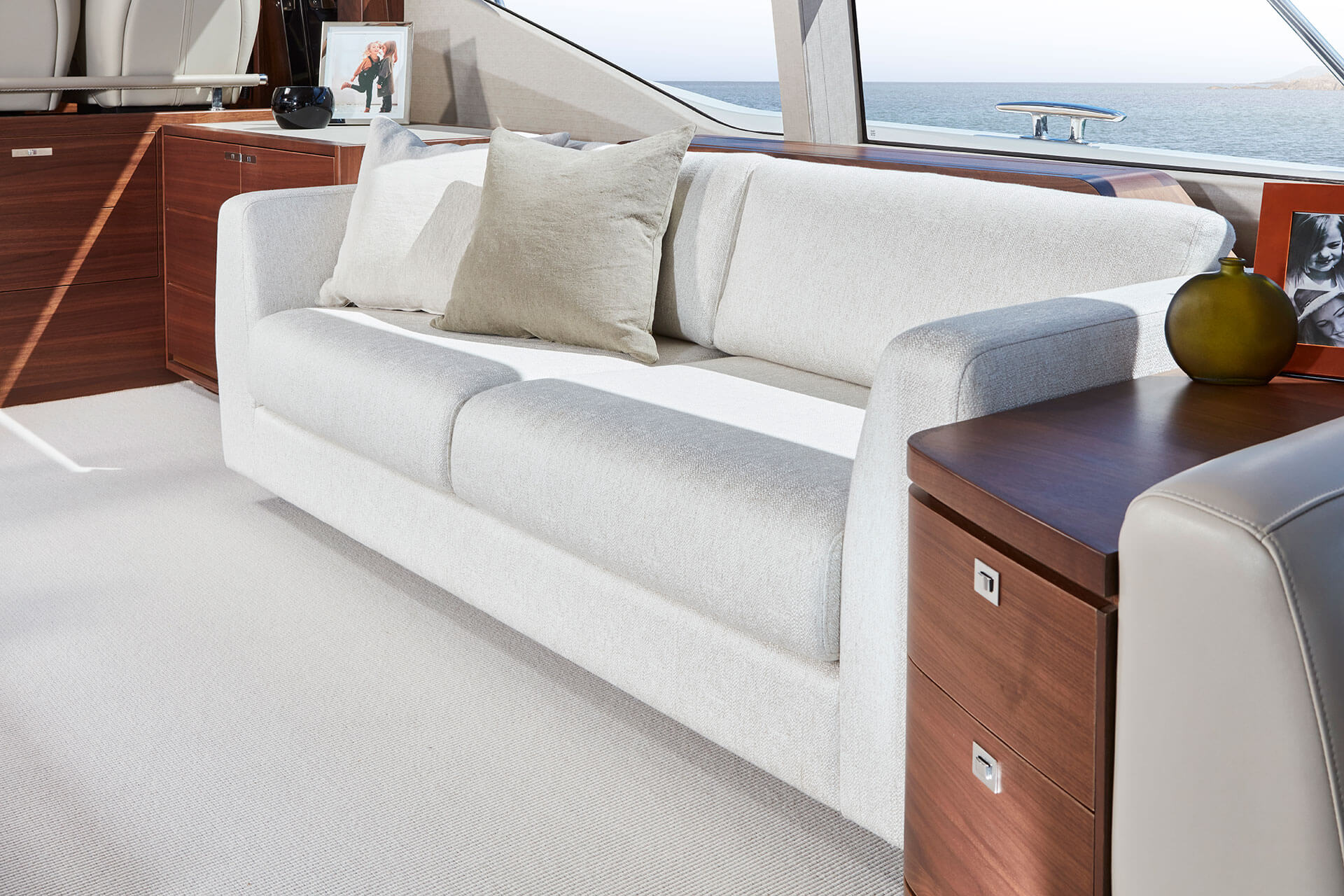

• Two seater sofa to starboard
• L-shaped sofa opposite helm area
• Sideboard unit with bottle and glass storage
• Refrigerator
• lcemaker
• UHD LED TV (49”)(with 3D capability) on rise and fall
• Radio/DVD Blu-ray system and 2.1 A/V surround sound system
• Electric drop window to port
• Venetian blinds to all windows
• LED overhead and concealed lighting (24V)
• Access stairway to lower accommodation
• Separate access stairway to master stateroom
• Fitted carpet

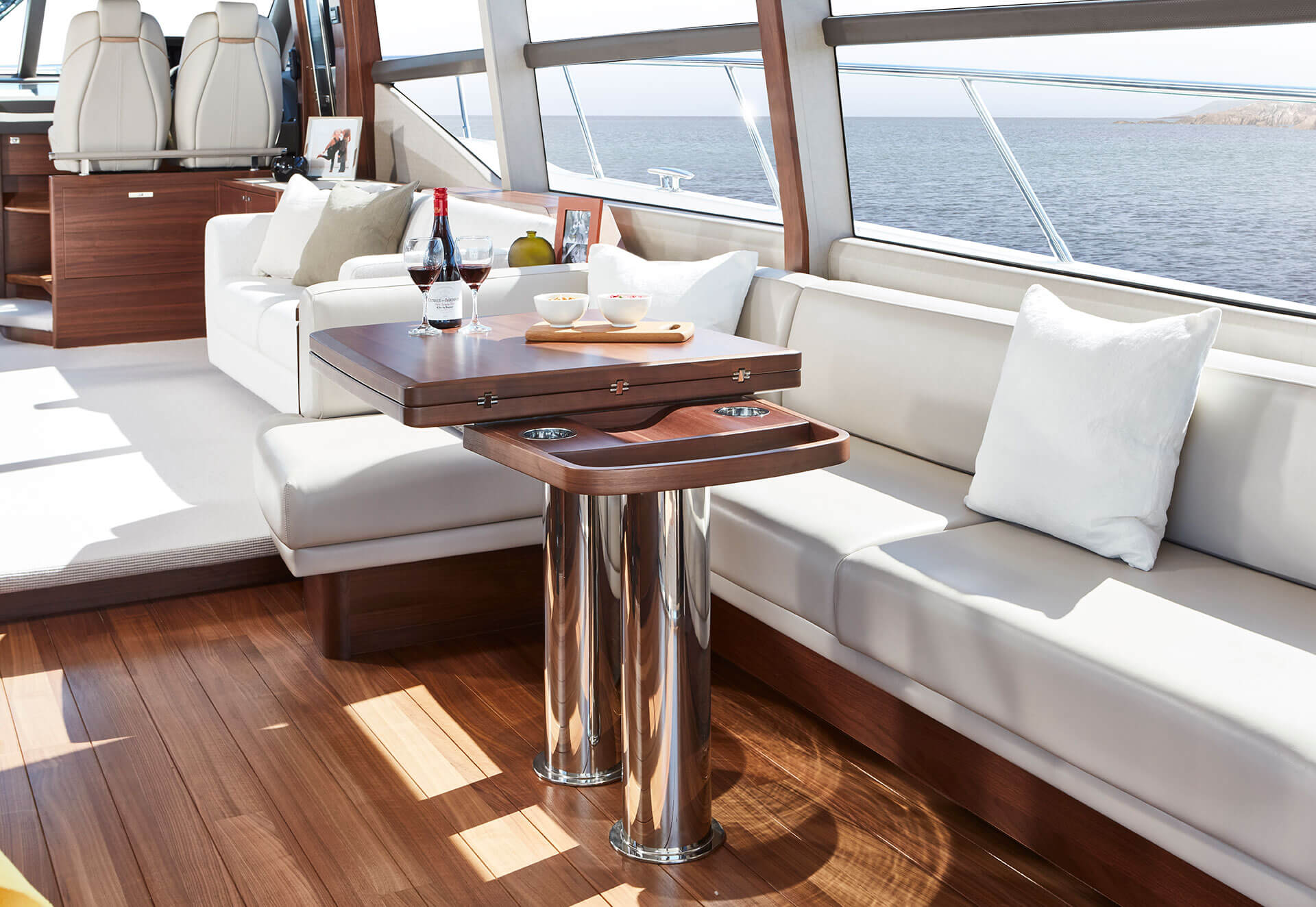

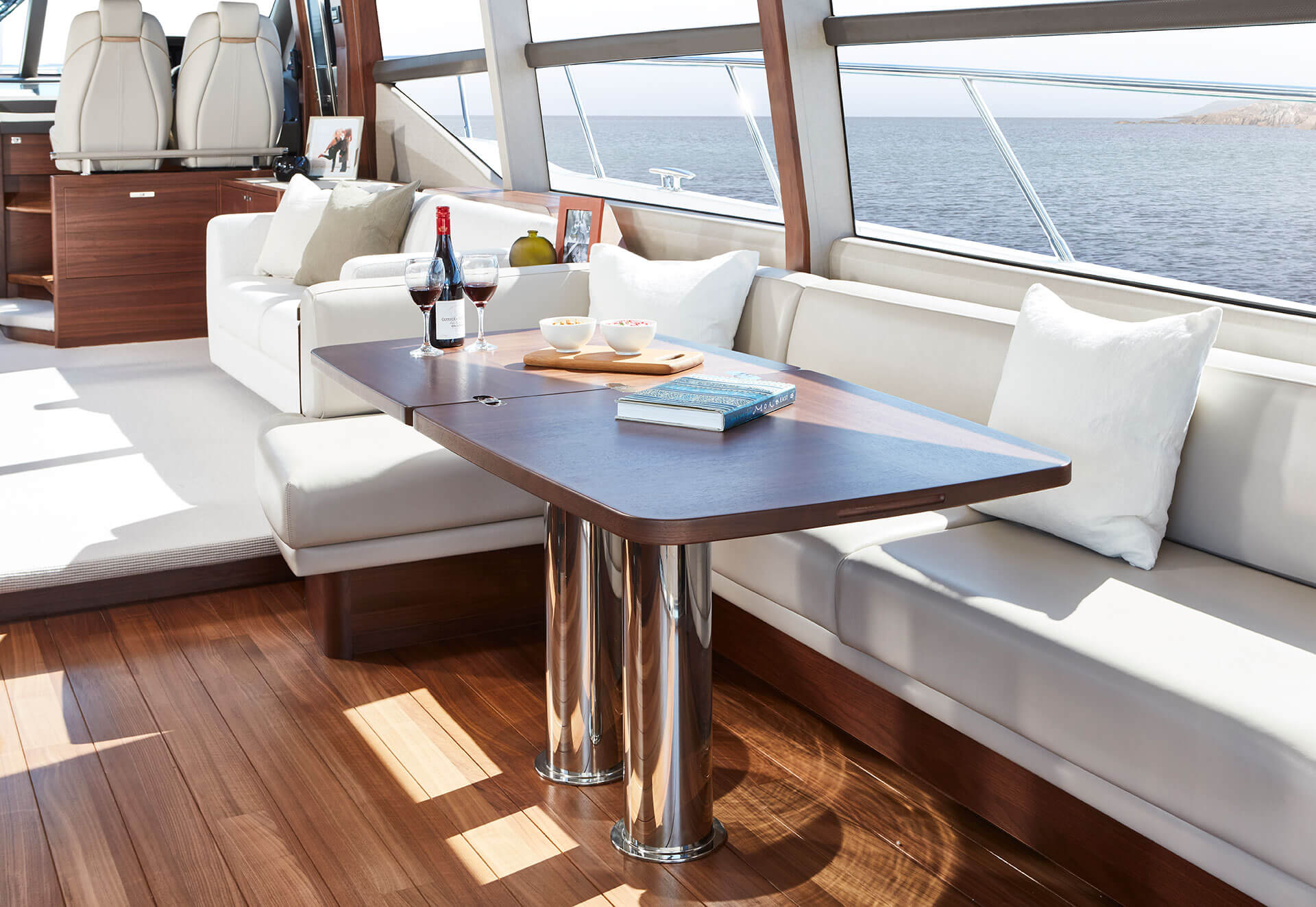

DINING AREA
• L-shaped sofa
• Folding dining table
• Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
• Venetian blinds or curtains to windows and doors
• LED overhead and concealed lighting (24V)
• Fitted carpet

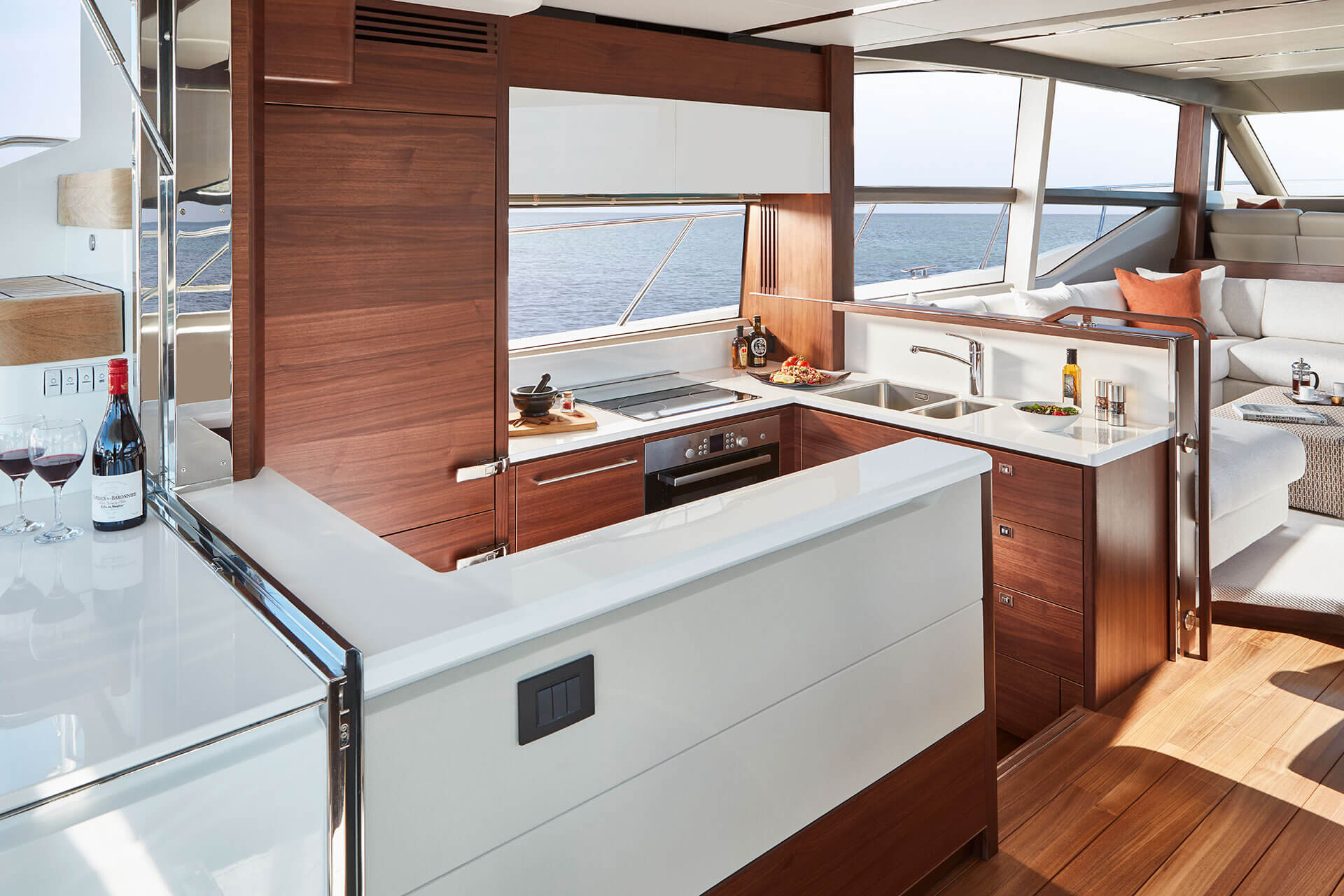

GALLEY
• Solid Surface worktop
• Ceramic 4-zone hob
• Hob extractor
• Combination microwave/conventional oven with grill
• Twin-bowl stainless-steel sink with mixer tap
• Chopping board
• Full height refrigerator/deep freeze
• Dishwasher
• Waste bin
• Drawers and storage cupboards
• Venetian blinds to window
• LED overhead and task lighting (24V)
• 220/240v outlets (4)
• Timber flooring
ACCOMMODATION
• All cabins and bathrooms feature opening portholes and air conditioning
• All cabins feature 220/240v power points
• All bathrooms feature electric freshwater toilets and 240v shaver points

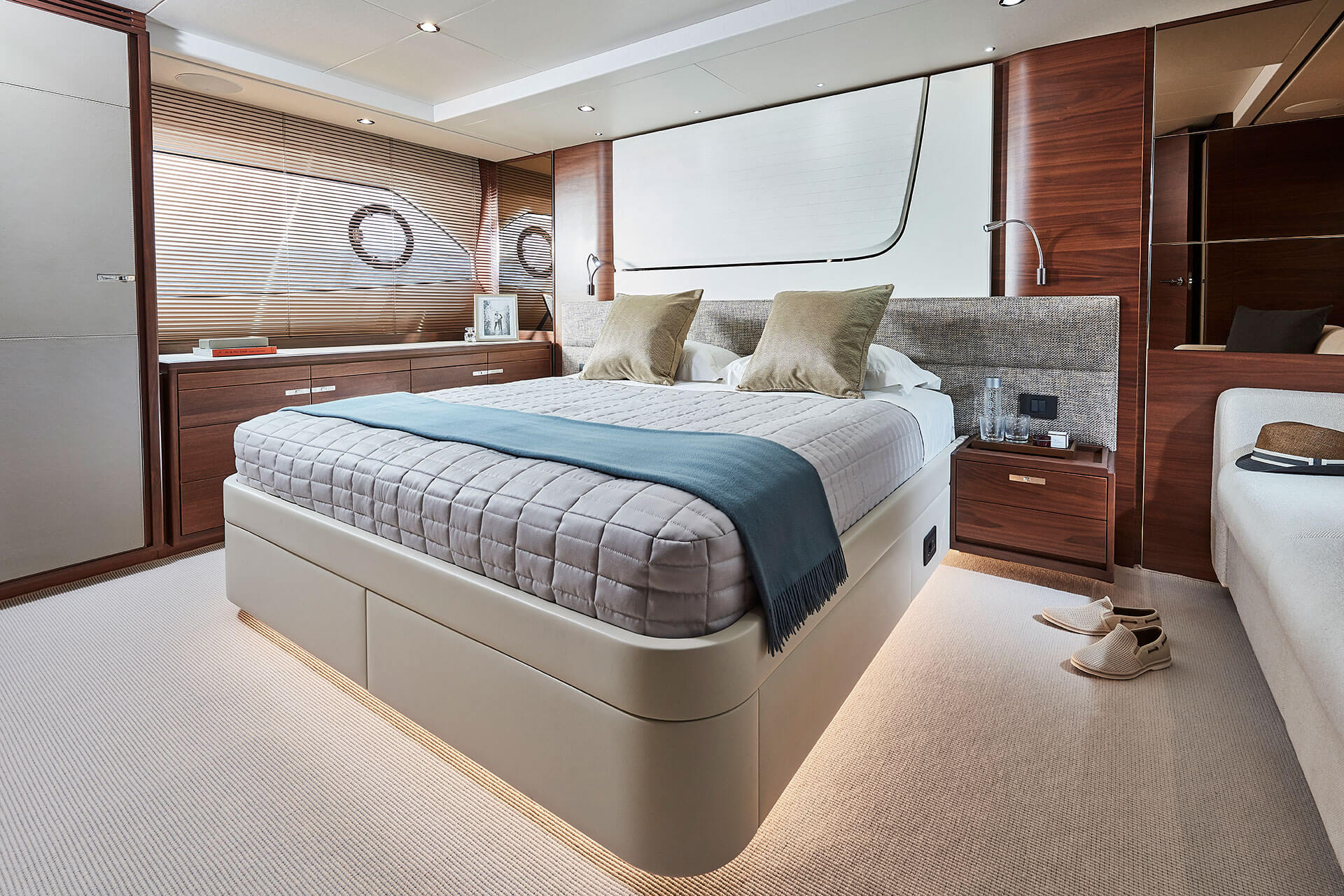

MASTER STATEROOM
• Large double bed with drawers below
• Twin bedside tables
• Twin wardrobes with shelves

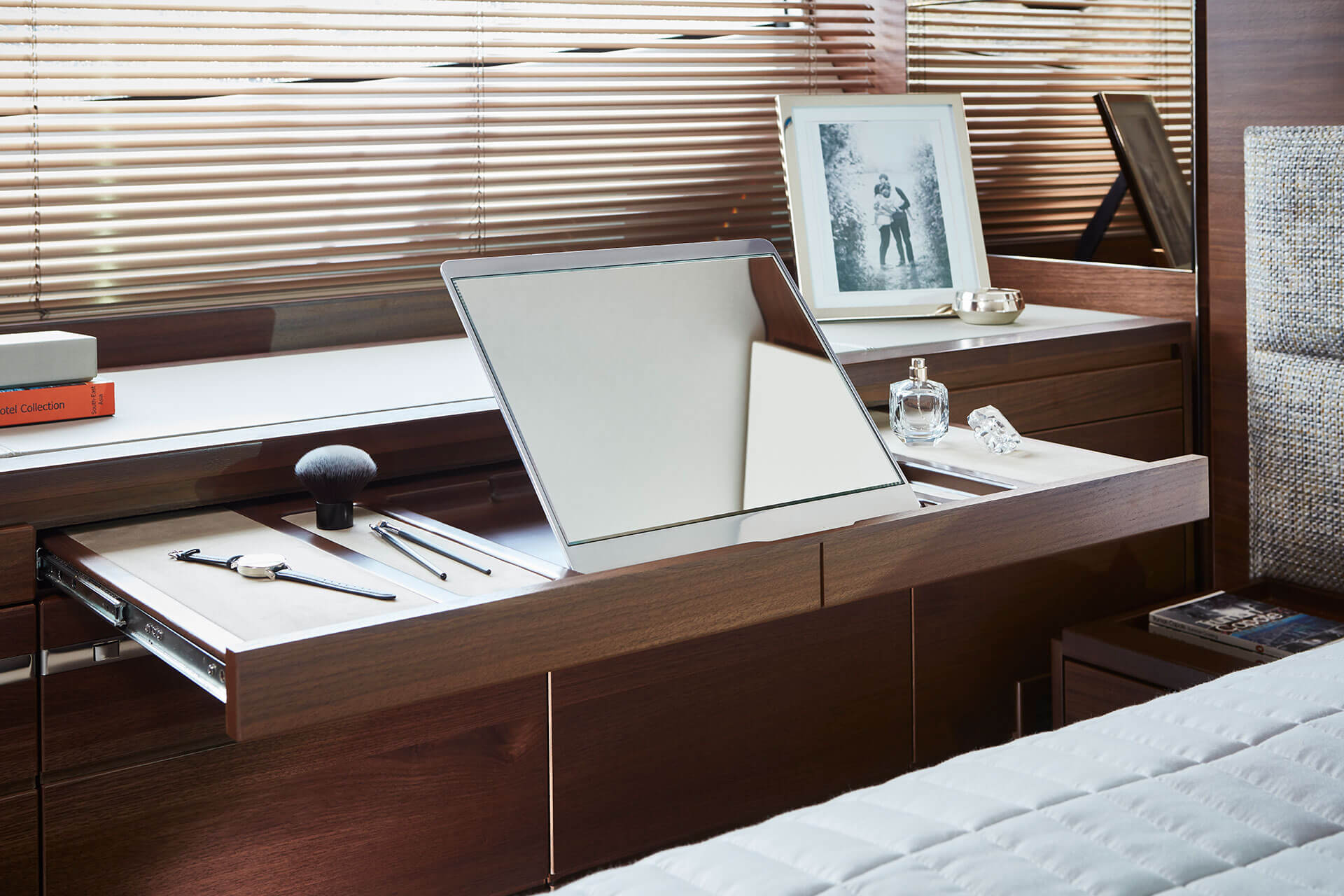

• Dressing table
• Mirror

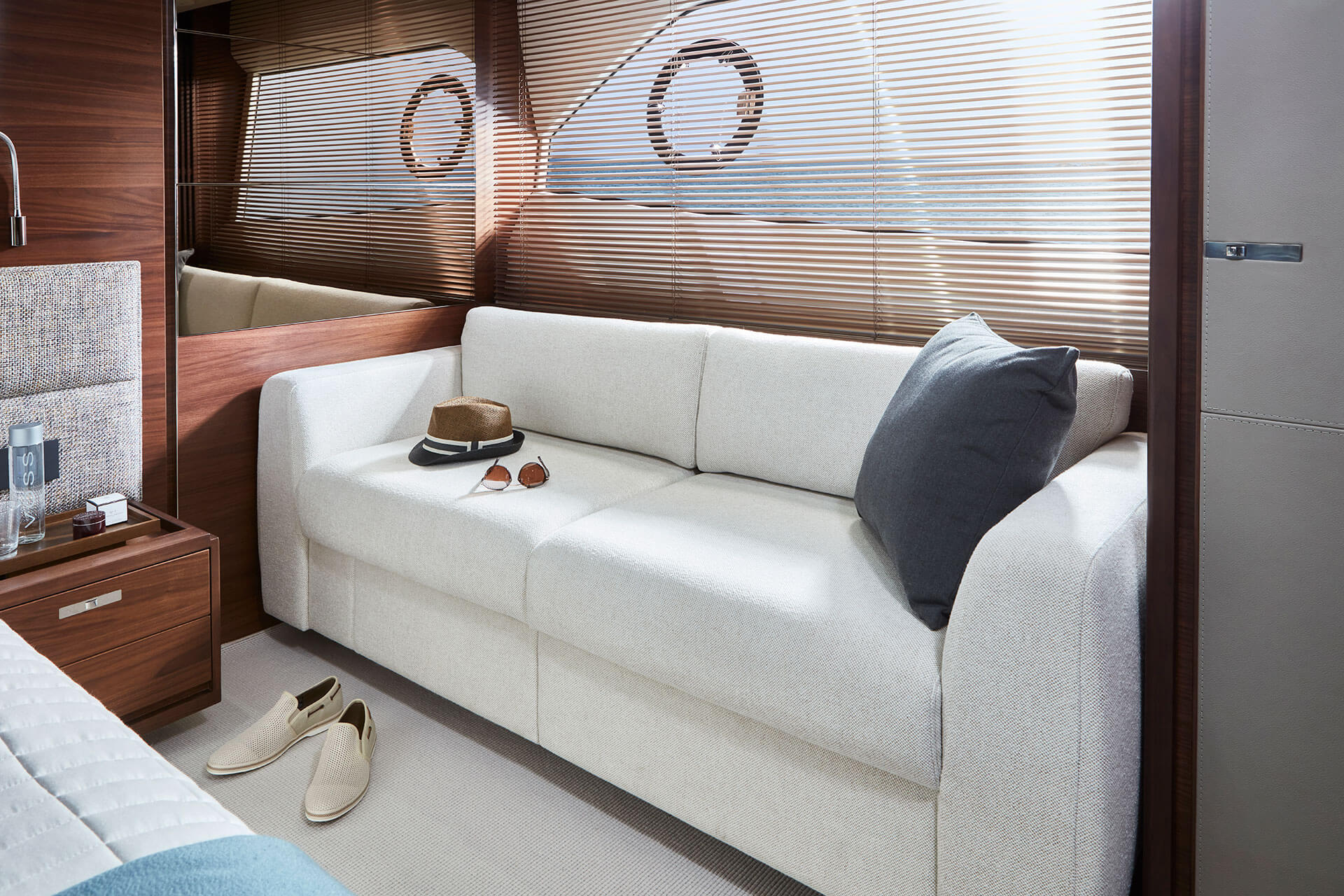

• Sofa
• Storage lockers and drawers

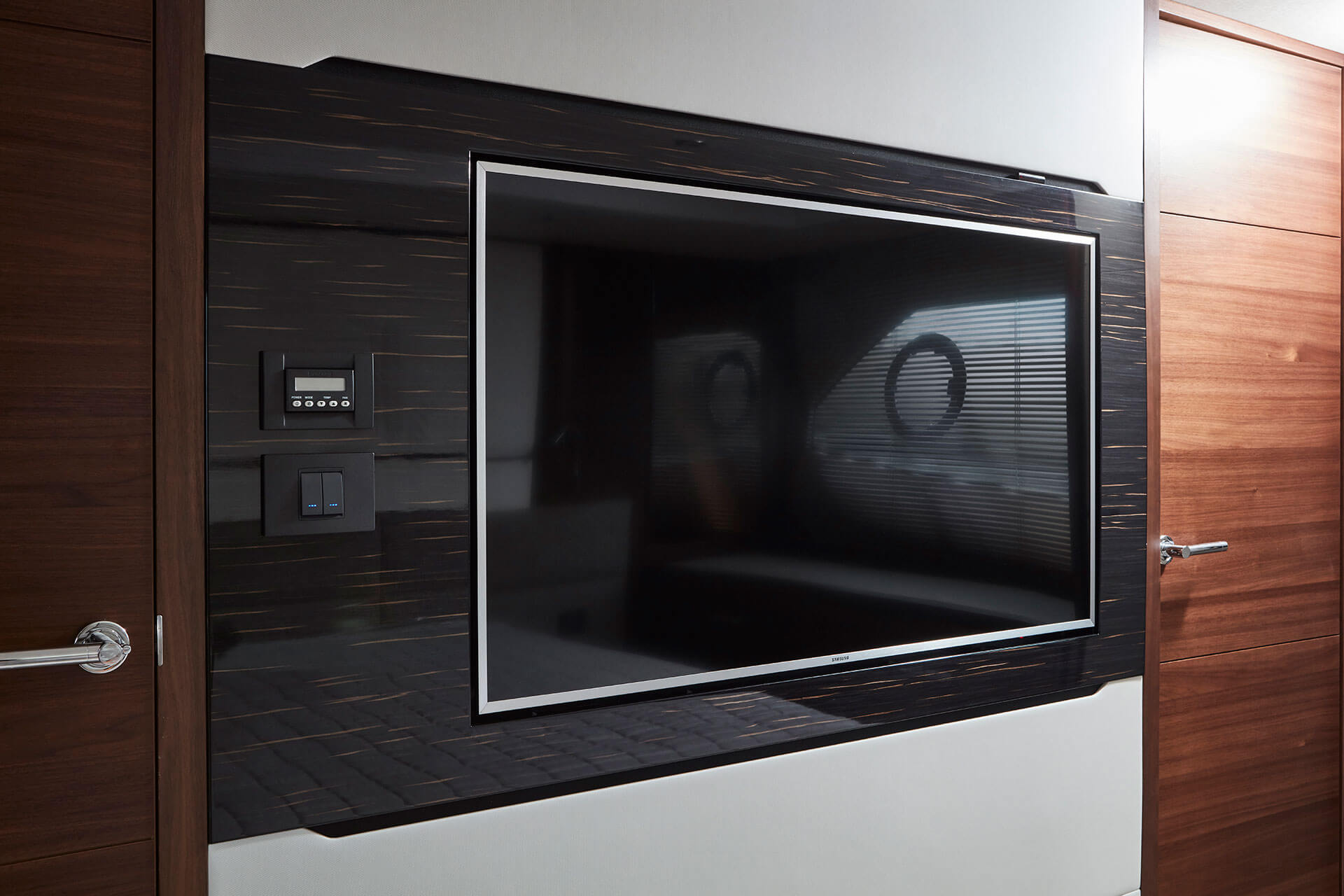

• 49” UHD LED TV (with 3D capability)
• Radio/DVD Blu-ray system and 2.1 A/V surround sound system
• Panoramic windows including opening portholes with venetian blinds
• LED overhead and concealed lighting (24V)

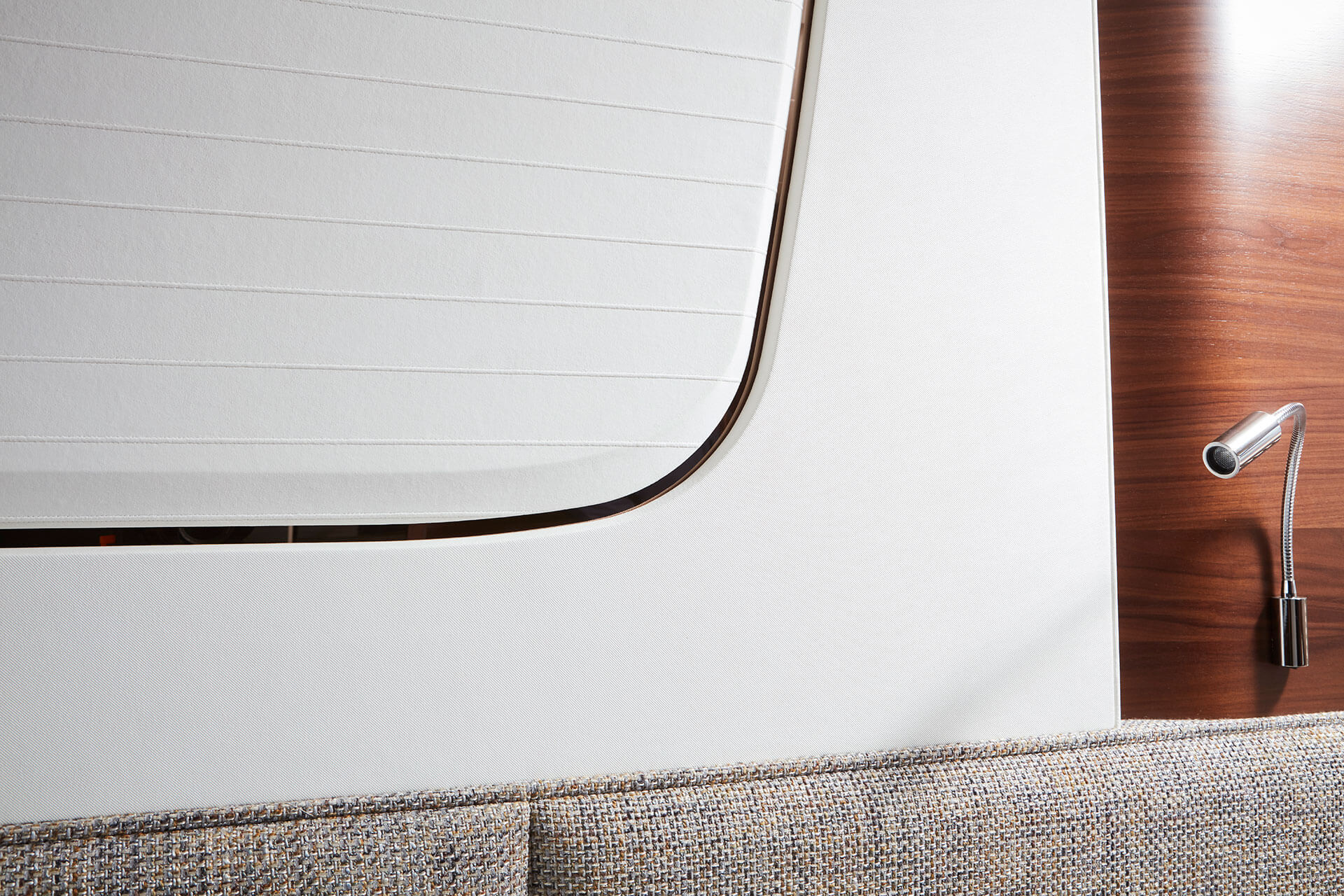

• Individual berth lights
• 220/240v outlets (2)
• USB connection point
• Fitted carpet

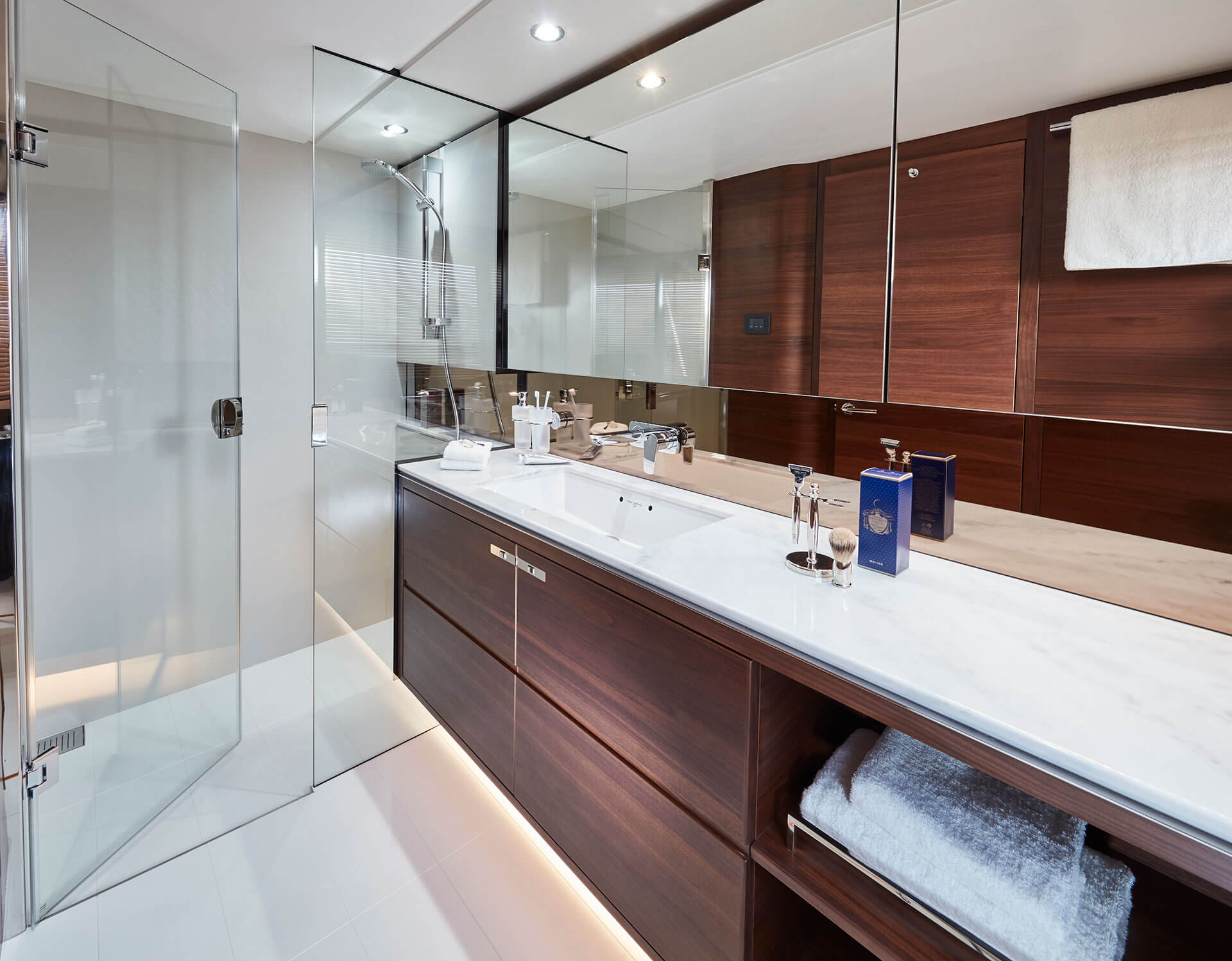

EN SUITE BATHROOM
• Washbasin with Solid Surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Window with opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Tiled flooring in Solid Surface

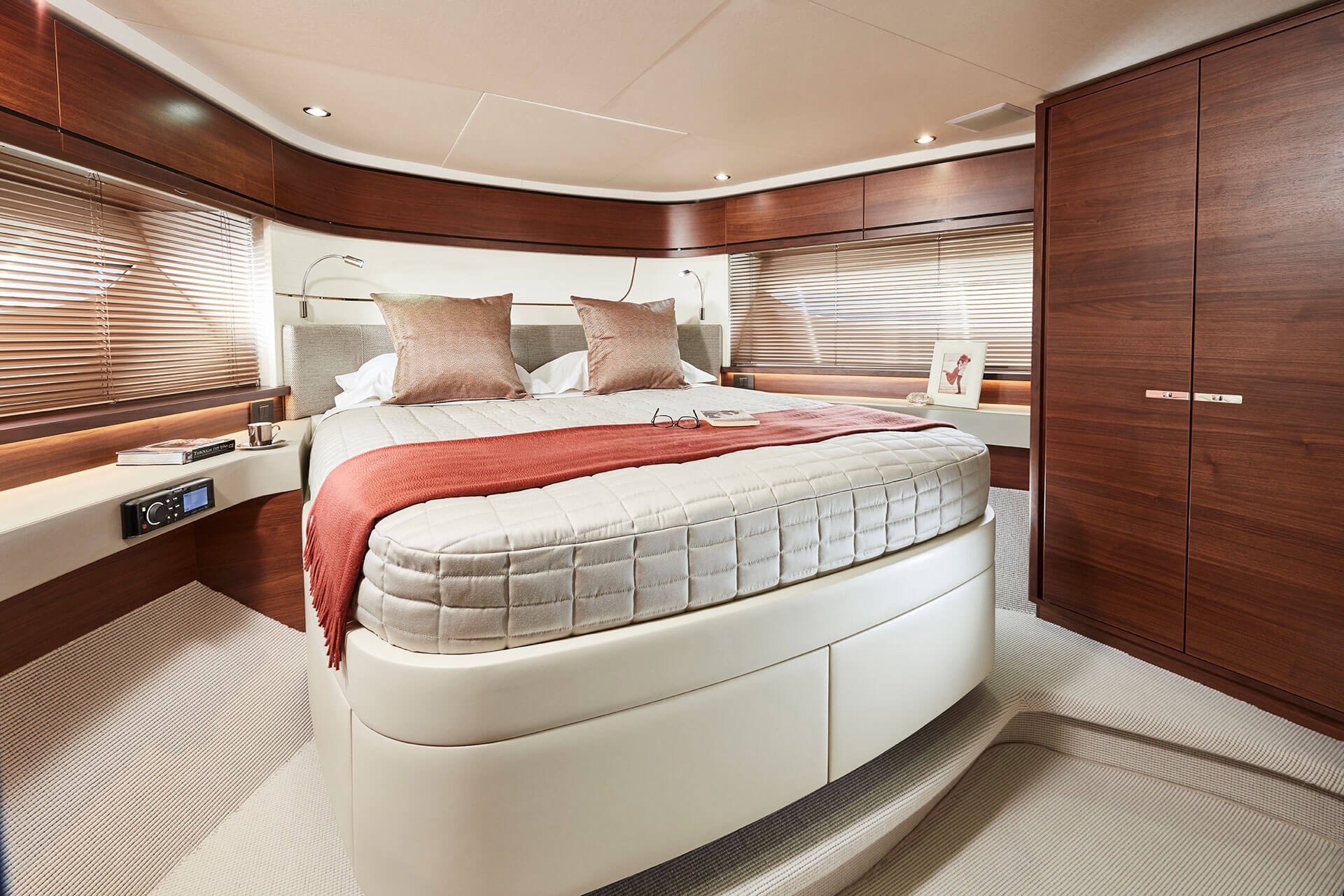

FORWARD STATEROOM
• Large double bed with drawers below
• Wardrobe with shelves

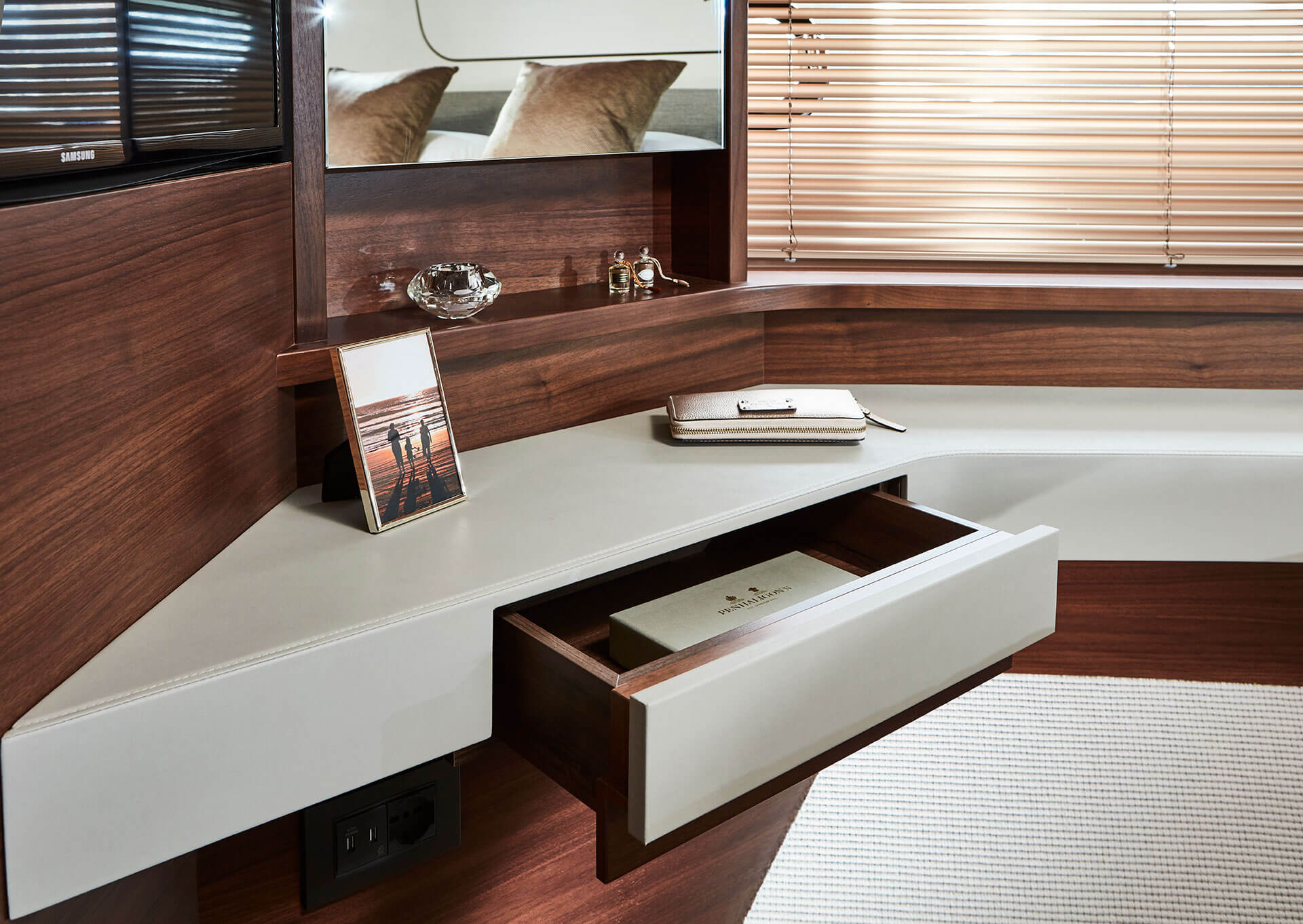

• Dressing table
• Mirror
• Storage lockers and drawers
• Window with opening portholes and venetian blind
• Deck hatch
• LED overhead and concealed lighting (24V)
• Individual berth lights
• 220/240v outlets (2)
• USB connection point
• Fitted carpet

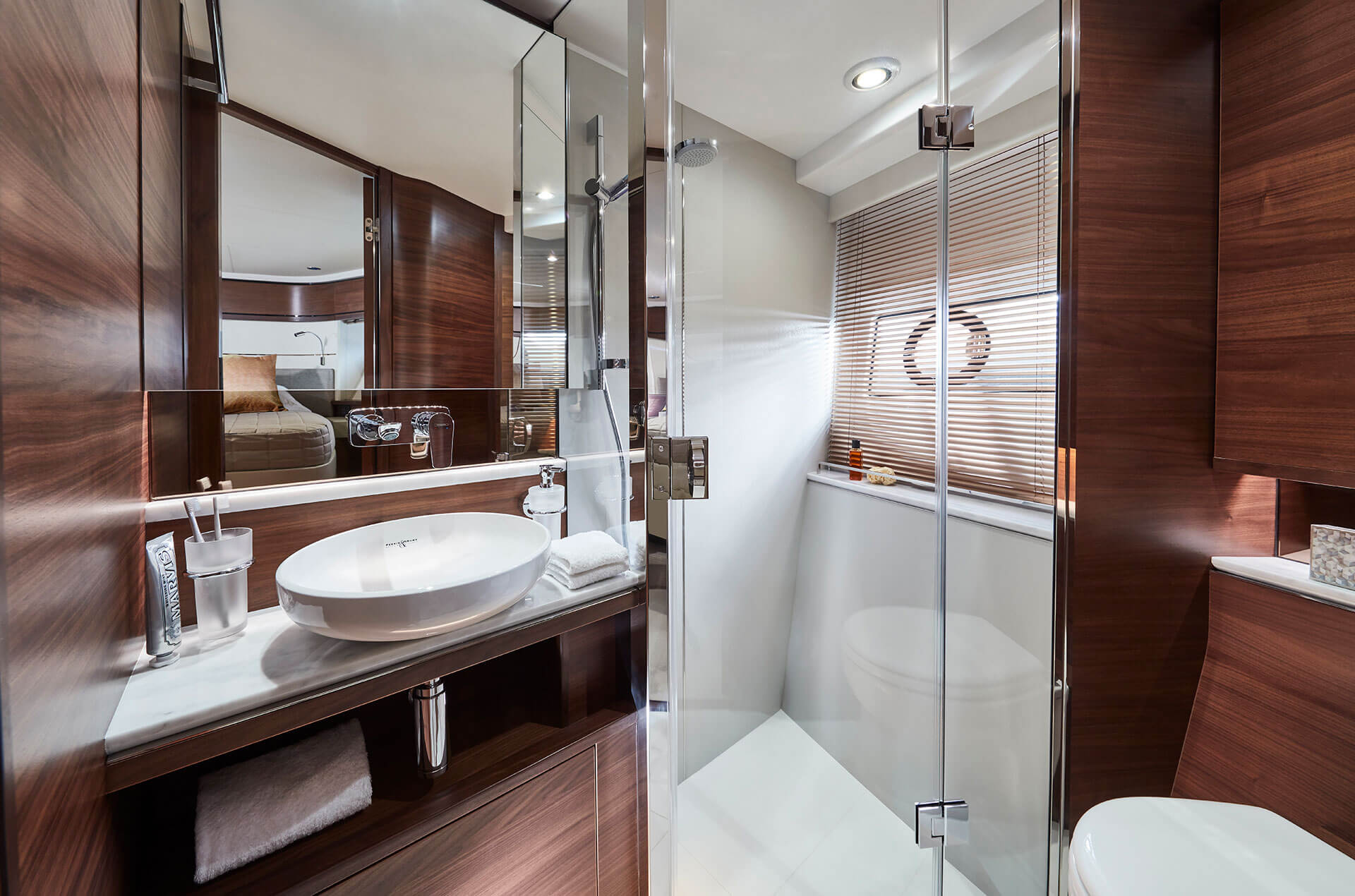

EN SUITE BATHROOM
• Washbasin with Solid Surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Window with opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Tiled flooring in Solid Surface

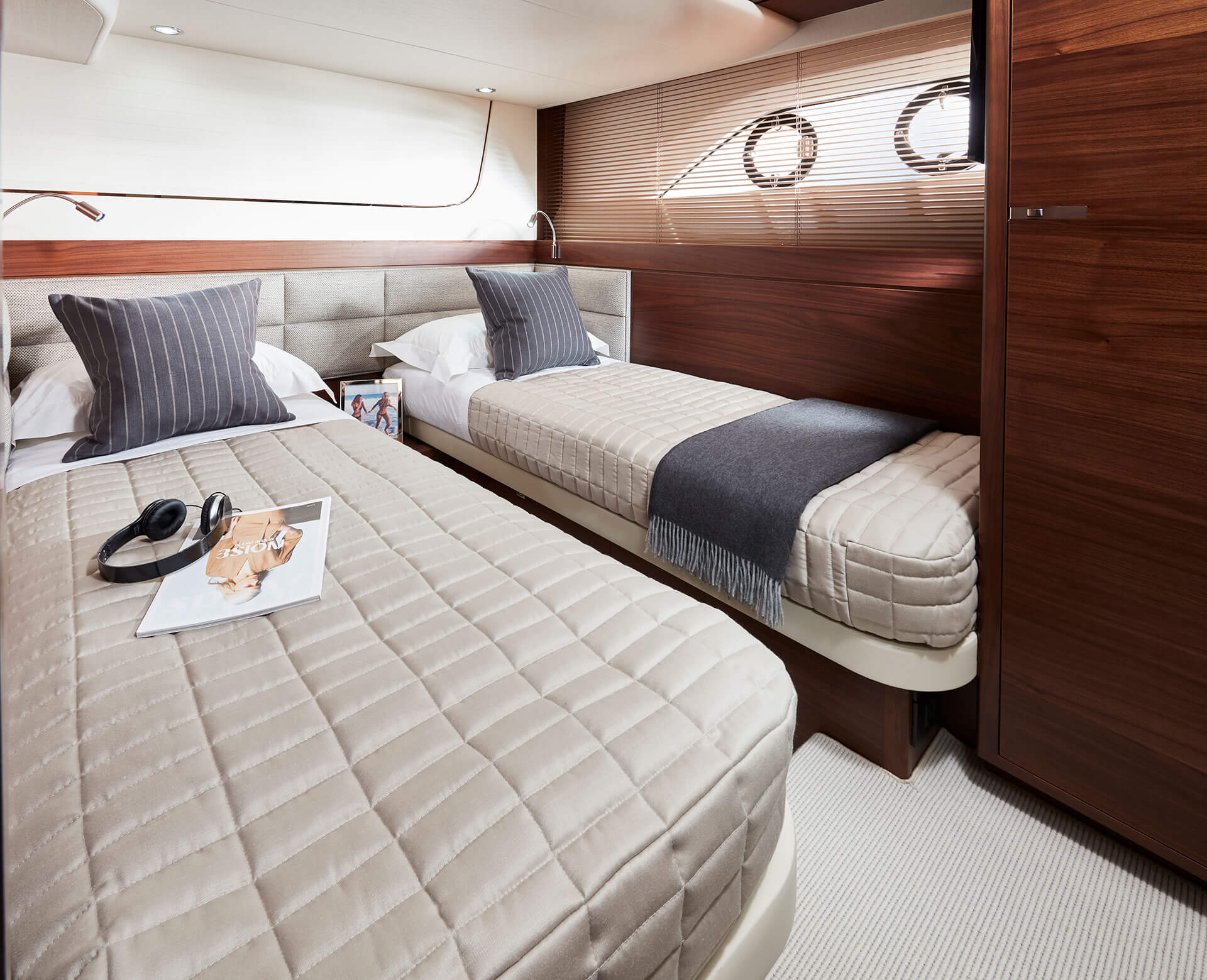

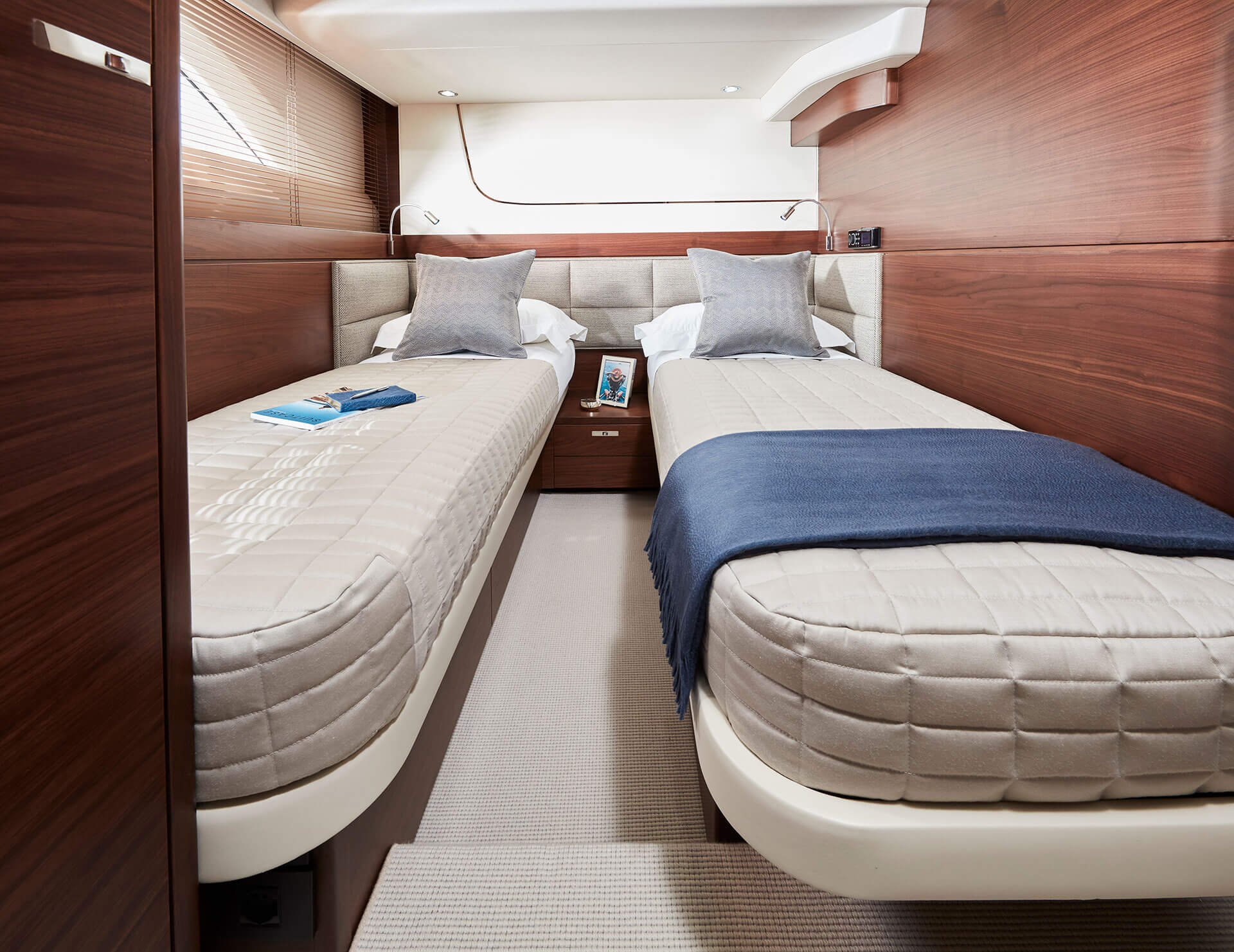

PORT AND STARBOARD GUEST CABINS
• Two single beds with pocket sprung mattresses and drawers below (with option of double bed conversion)
• Bedside table
• Wardrobe with shelves
• Mirror
• Storage lockers and drawers
• Opening portholes and venetian blind
• LED overhead and concealed lighting (24V)
• Individual berth lights
• 220/240v outlets (2)
• USB connection point
• Fitted carpet

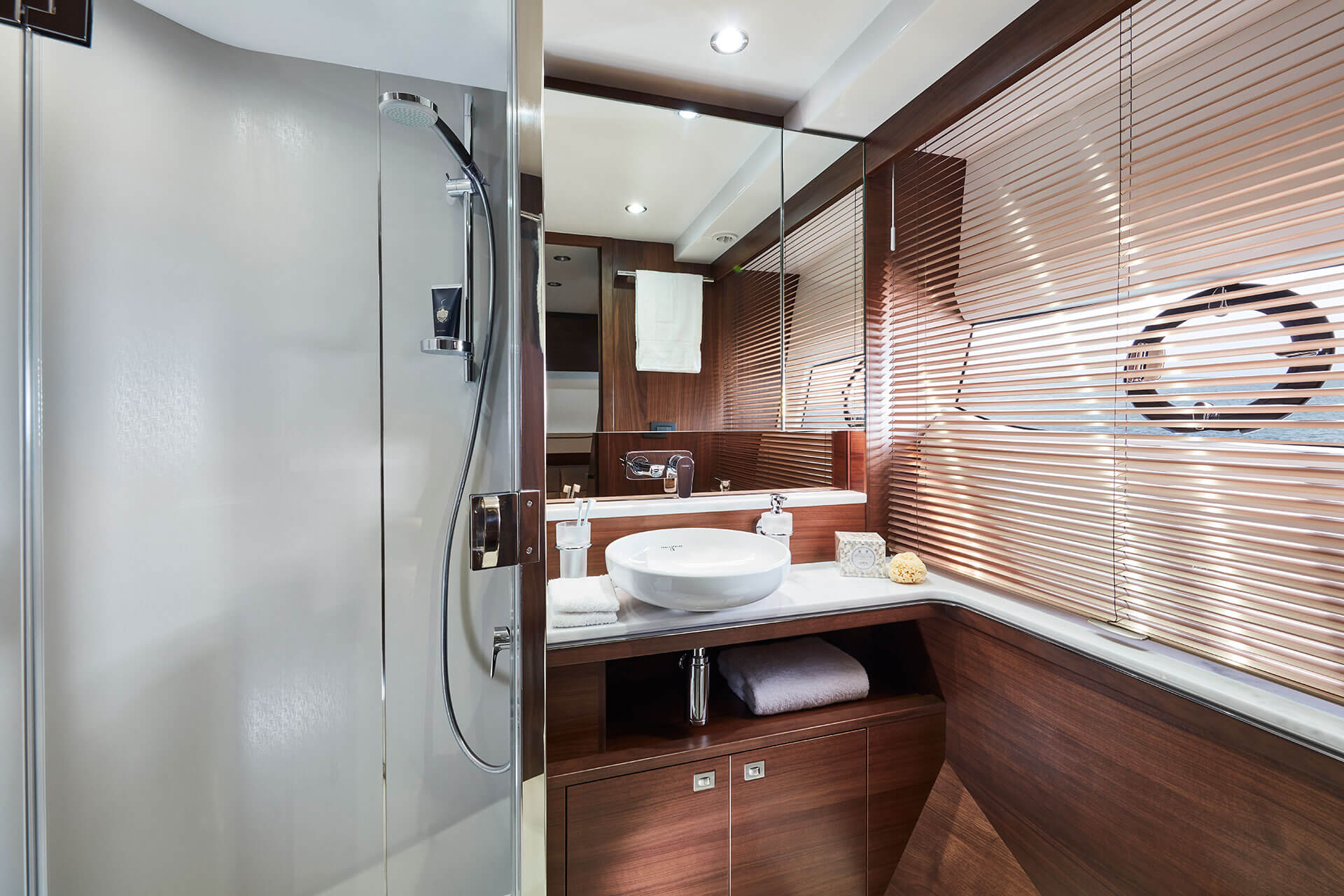

EN SUITE BATHROOM
• Washbasin with Solid Surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Tiled flooring in Solid Surface
• Day access door from passageway
OPTIONAL CREW CABIN
• Two single beds with storage below
• Bedside table
• Wardrobe with shelf
• Mirror
• Storage lockers and drawers
• Transom window with venetian blind
• Opening portlight
• LED overhead lighting (24V) Individual berth lights
• 220/240v outlets (2)
• Timber flooring
EN SUITE BATHROOM
• Washbasin with Solid Surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• LED overhead lighting (24V)
• Bathroom accessories
• Tiled flooring in Solid Surface
• Standard aft lazarette incorporates overhead lighting, transom window, access hatch with ladder and storage space
POWER AND DRIVE SYSTEM
• 5-bladed propellers in nickel aluminum bronze
• Bow thruster (170kgf/3751bf) with dual-station controls
• Engine room lighting
• Engine room access hatch and ladder
• Power-assisted electro-hydraulic steering system
• Trim tabs with indicators
• Electronic engine and gear shift controls
• Engine room extractor fan with electronic time delay
• Fresh water supply point in engine room
• Dripless self aligning shaft seals
ELECTRICAL SYSTEMS
24 VOLT:
• 4 x heavy-duty batteries for engine starting
• 4 x heavy-duty auxiliary batteries
• Battery link facility with remote control at helm position
• Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
• 80-amp 24v battery charger
• Remote battery master switches with control switch at main switch panel
• Circuit breakers on all circuits
• 12v voltage dropper for certain navigation and radio circuits
220/240 VOLT:
• llkW generator in own sound shield with water-cooled and specially silenced exhaust
• Automatic fire extinguisher situated by generator
• 63-amp shore support inlet
• Generator/shore support change-over switch
• Polarity check system
• Earth leakage safety trip
• Circuit breakers on all circuits
• Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
• Shaver points in all bathrooms
FUEL SYSTEM
• Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 900 gallons/1080 US gallons/4100 litres capacity
• Fuel fillers on port and starboard side decks
• High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm
• Remote fuel cocks in cockpit locker
• Fuel gauges at main helm console
WATER SYSTEM
• Water tanks totalling 184 gallons/221 US gallons/836 litres plus 16 gallons/19 US gallons/73 litres hot water calorifier
• Water heated by engines and 240v immersion heater
• Automatic water pump with filter
• Main circuit breaker at switch panel
• Water level gauge
• Deck filler
• Electric quietflush WC system with 60 gallons/72 US gallons/272 litres holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
FIRE EXTINGUISHERS
• Automatic/manual override fire extinguishers in engine room
• Hand operated fire extinguishers (6) in owner’s stateroom, forward stateroom, port and starboard guest cabins, galley and lower helm position
• Additional extinguisher fitted when optional aft cabin is specified
BILGE PUMPS
• Automatic/manual override electric bilge pumps in engine room (2), rudder area and forward accommodation (6 in all)
• High-capacity manual bilge pump with valve system and suction points in same areas
• Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
0THER STANDARD EQUIPMENT
• Ensign staff
• Fenders (6)
• Mooring warps (4)
• First Aid kit
• Tool kit
• Owner’s manual and engine manual
• Quilted mattress cover supplied to all cabins (except optional crew cabin)
• Set of towels (8 large, 8 hand)
• Set of crystal glassware (8 settings consisting of tumbler and wine glasses)
• Set of Princess china (8 settings consisting of plate, side plate, bowl, cup & saucer)
• Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
• Ship’s document case
• Anchor winch back up handle
FINISHES
• Teak-laid decks to transom platform, steps to side decks, steps to flybridge and flybridge Timber-laid floor to galley and helm
• Furniture in choice of Rovere oak, Alba oak or walnut with satin or gloss finishes
• Solid Surface tiled floors in all bathroom suites in guest accommodation
• Solid Surface wash hand basin counter tops in all bathroom suites in guest accommodation
• Galley worktop in Solid Surface
• Choice of high quality carpet and upholstery fabric from extensive range
• Blinds or sunscreens to all windows and portholes
• Optional crew cabin has timber flooring, crew bathroom floor is Solid Surface tiled floors with Solid Surface countertops
Please note the right is reserved to add modify or delete from this preliminary specification.
VIDEOS & PHOTOS
