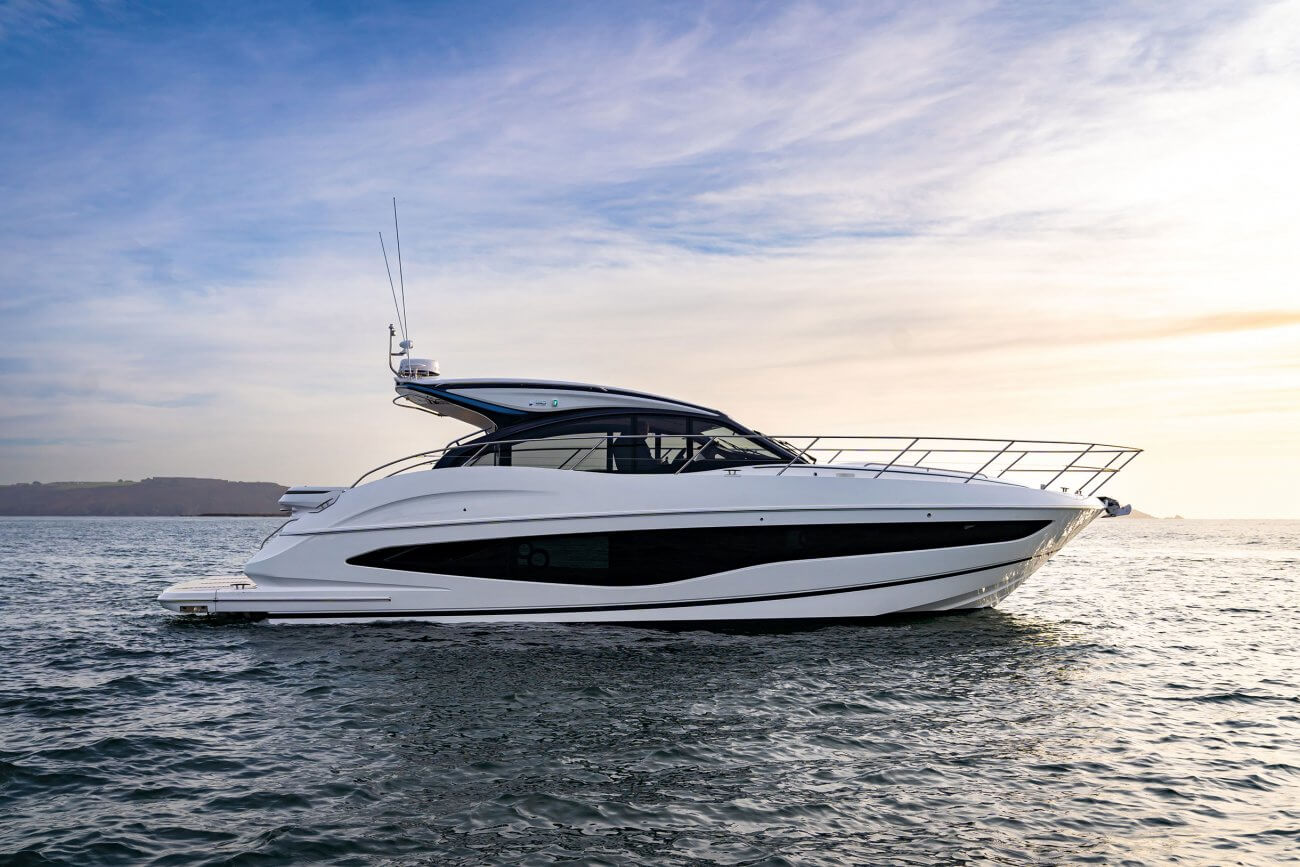

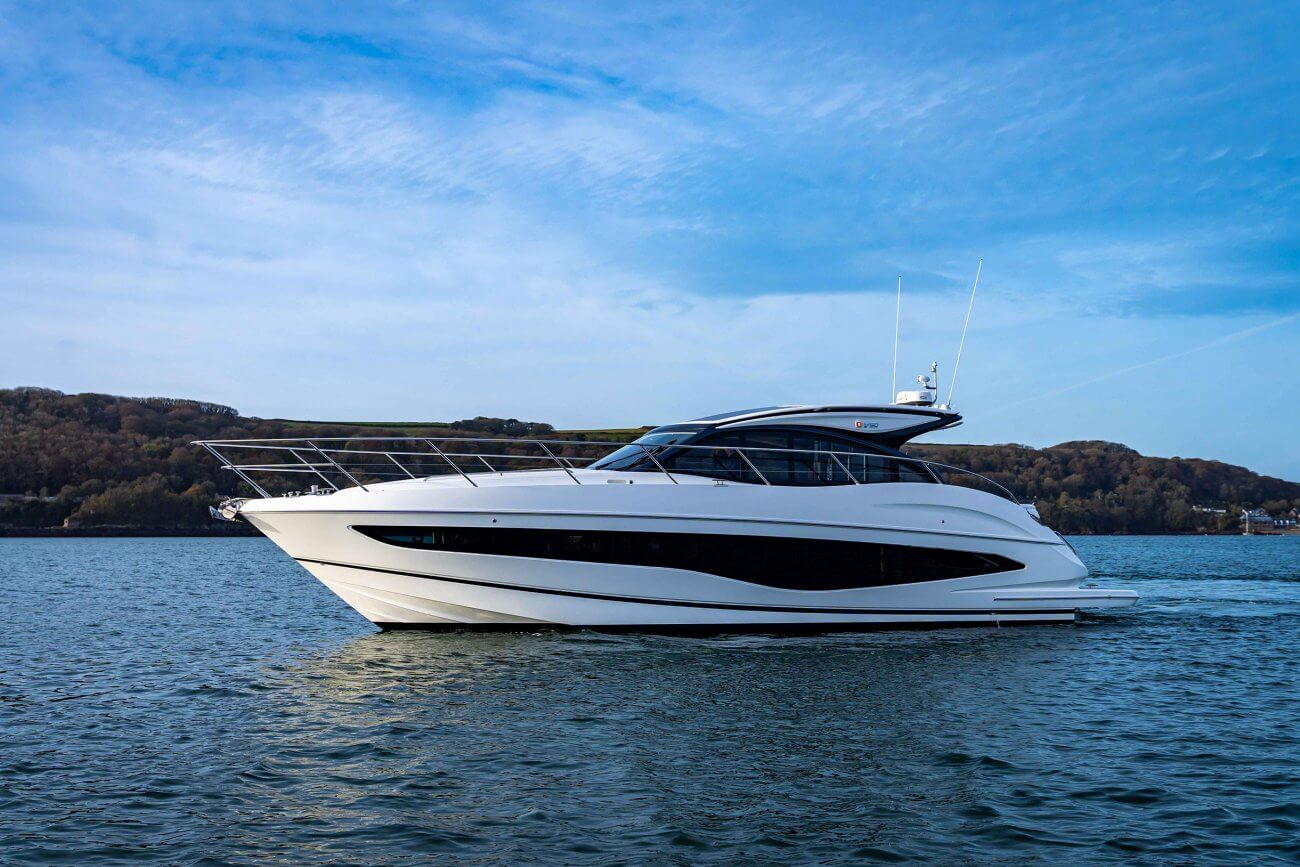

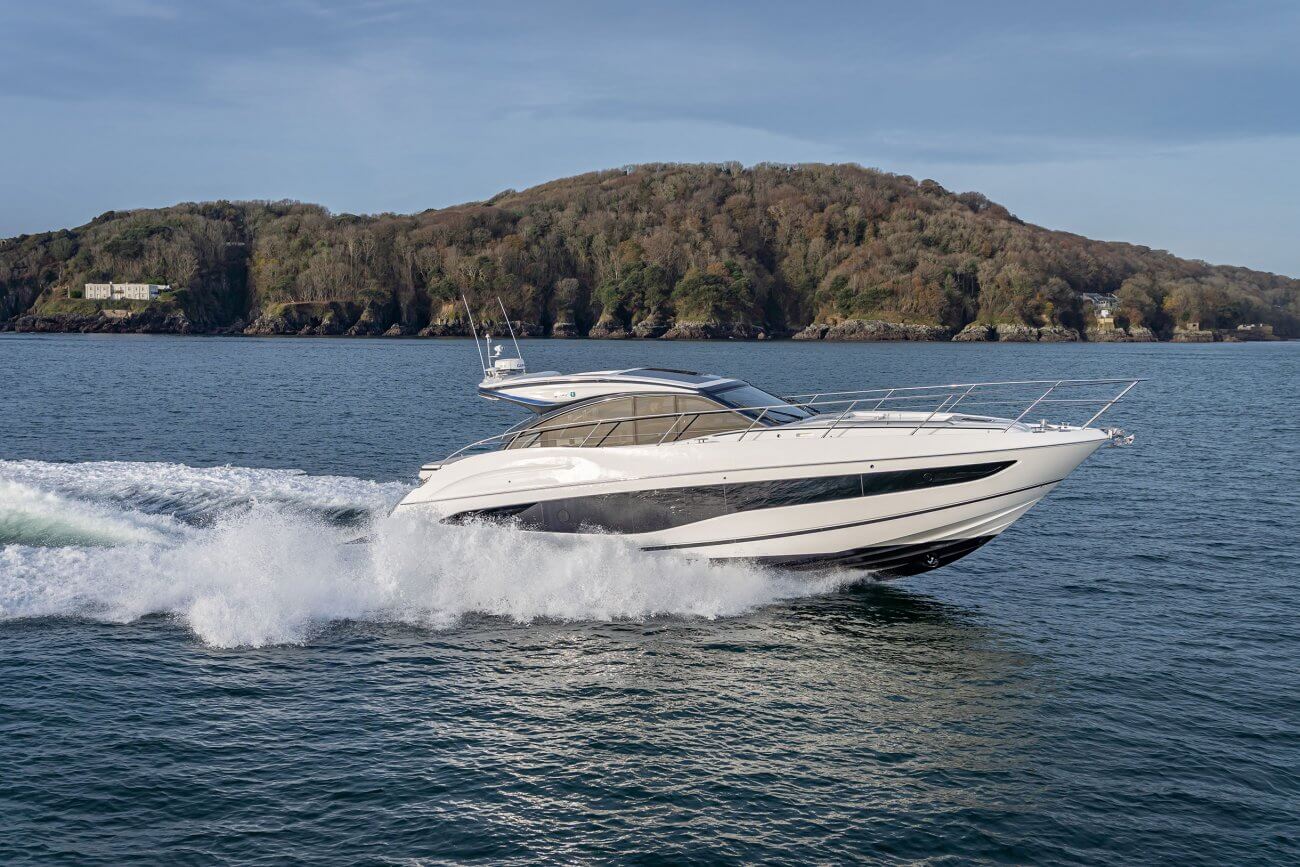

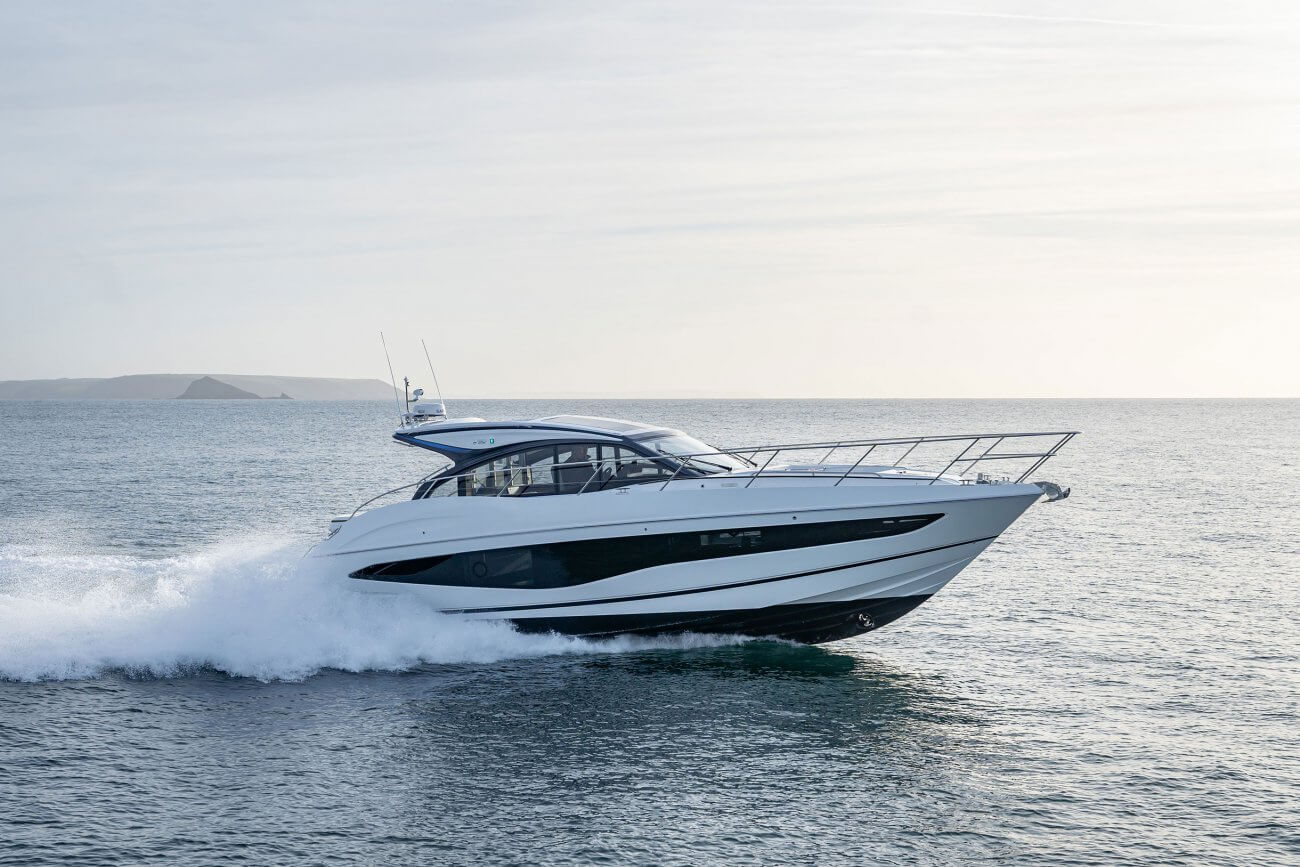

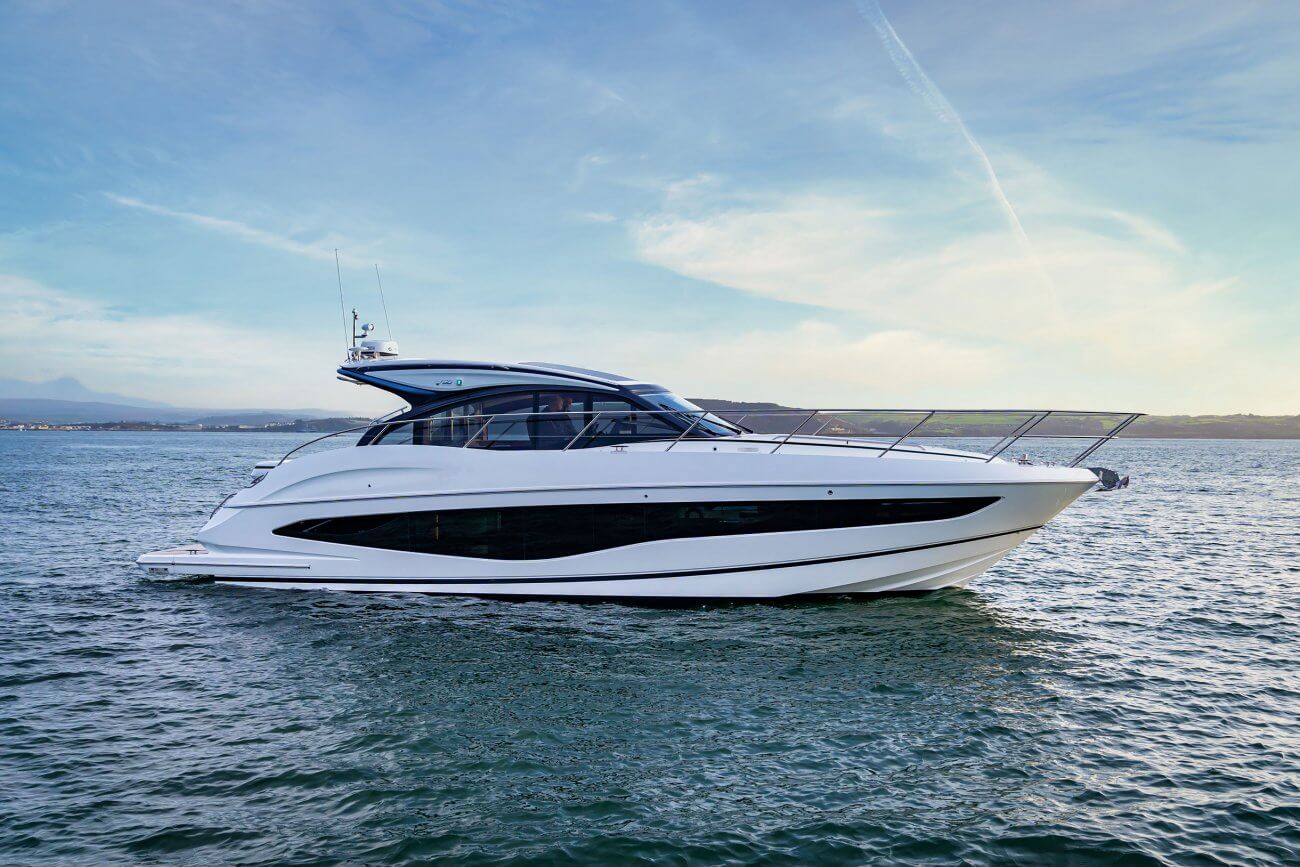

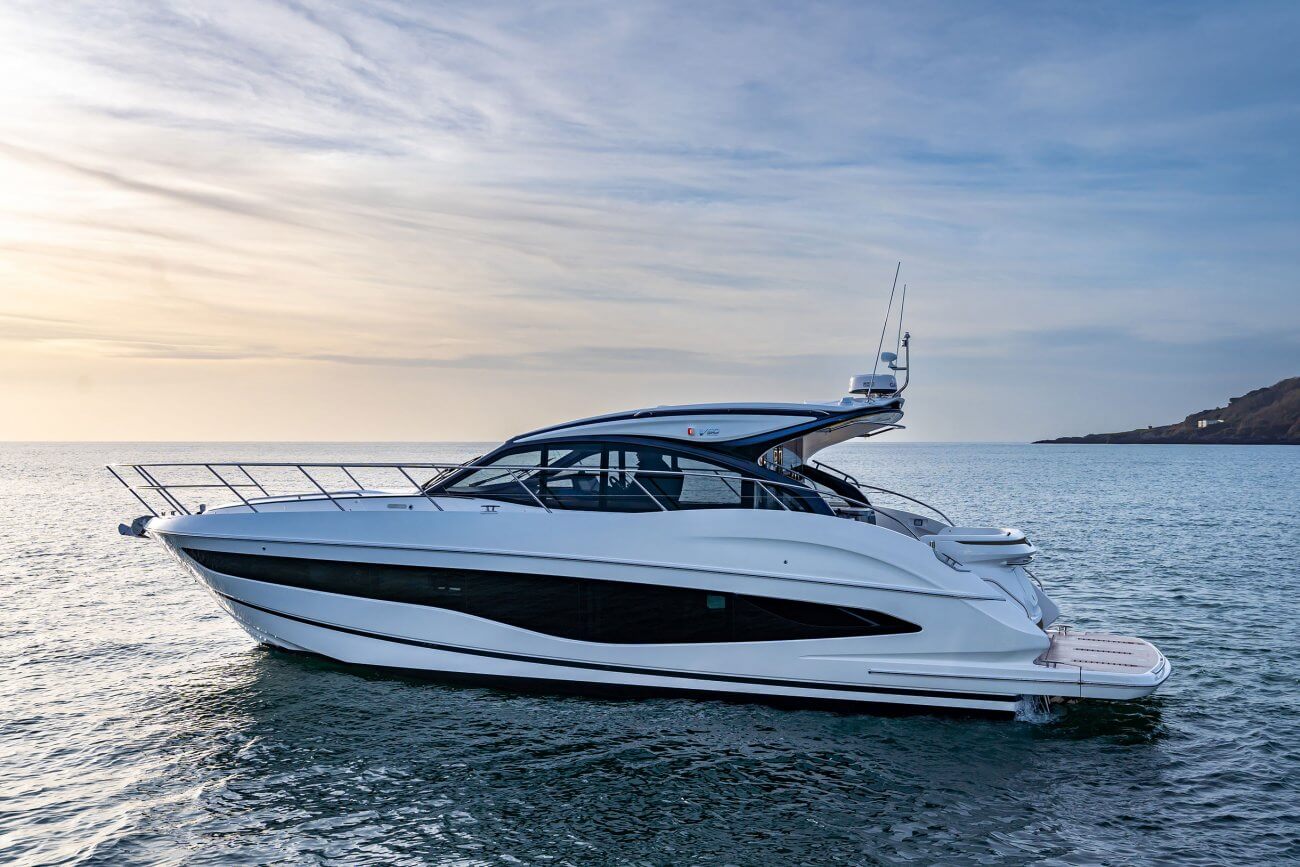

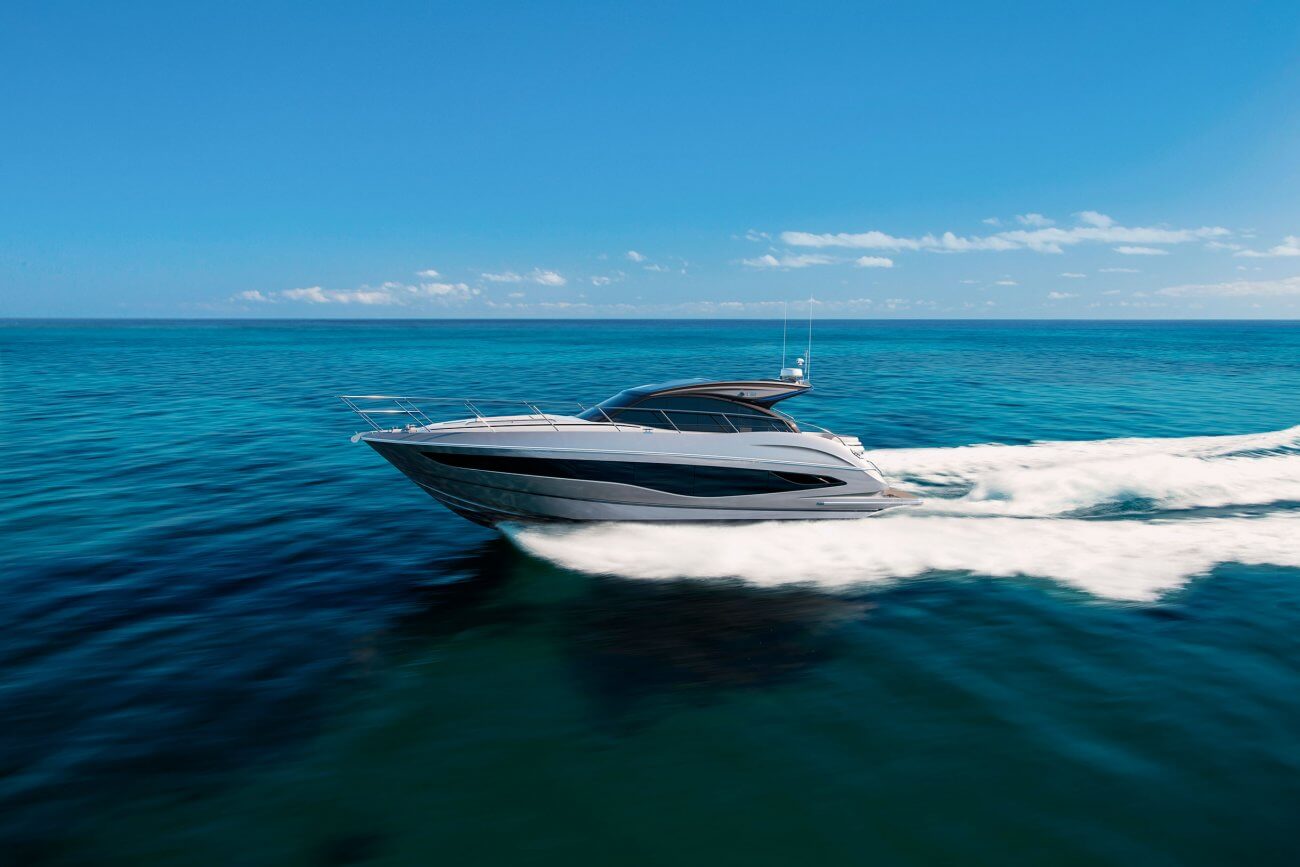

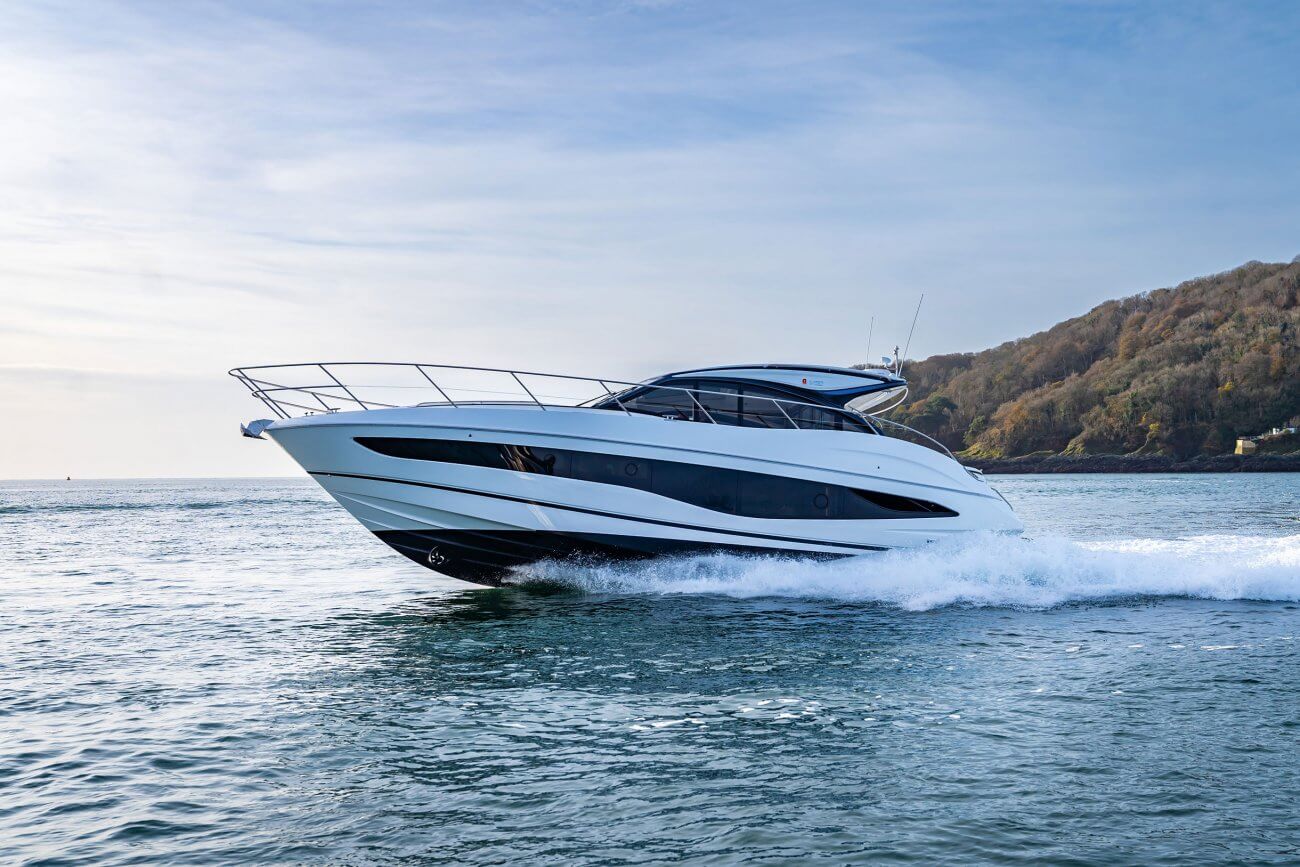

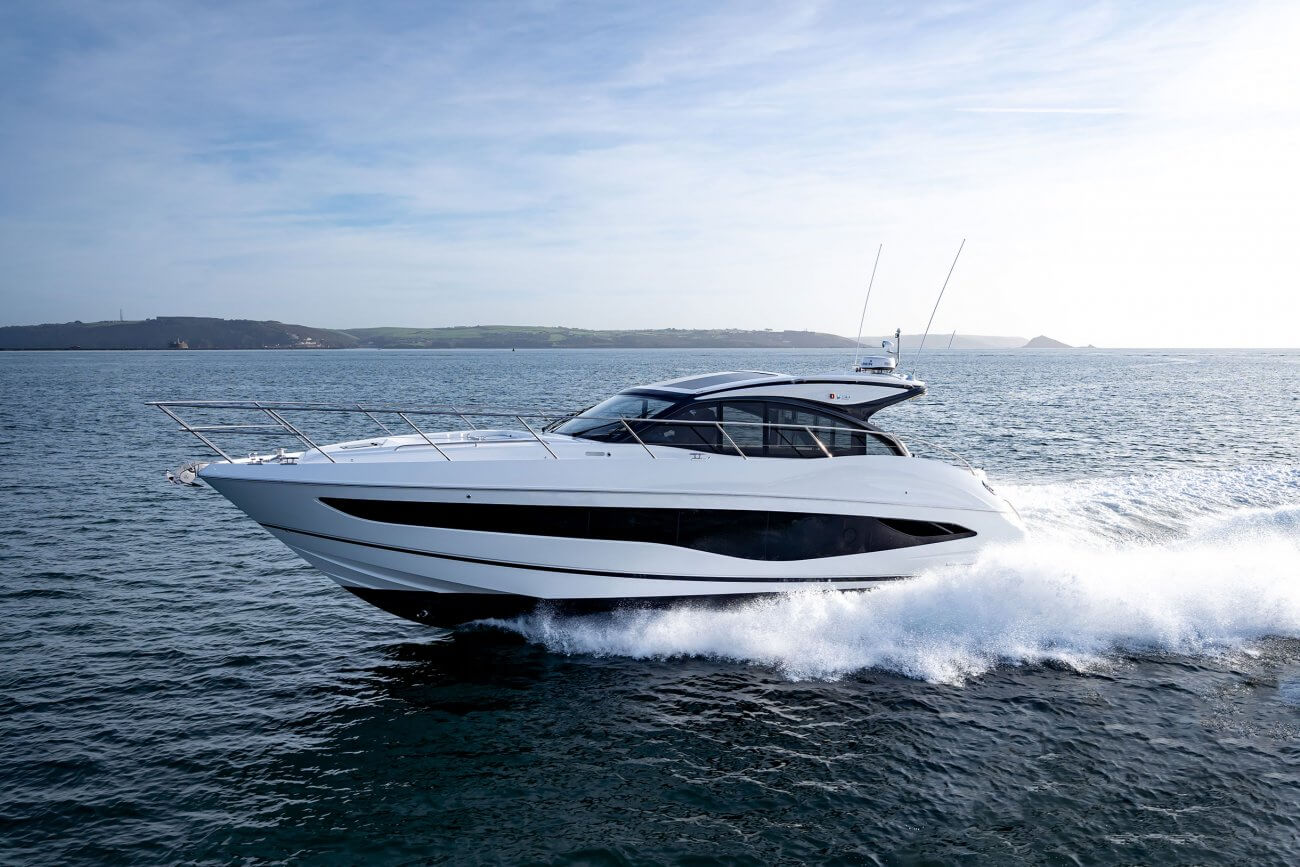

PRINCESS V50
Designed by the Princess Design Studio in collaboration with naval architects Olesinski and Italian design house, Pininfarina, the all-new Princess V50 replaces the ever-popular outgoing model in our exhilarating V Class range.
With a deep-V hull, increased fuel capacity, and exceptional performance, the V50 allows thrill seekers to travel further afield. Characterised by sleek exterior styling and extended full-length window graphics, the all-new V50 is instantly recognisable as a member of the V Class. Elevated interior styling consists of flowing shapes and forms, contrasted with textured fabrics.
When entertaining, the extended cockpit provides exceptional outdoor living space in which to create unforgettable experiences. The elongated canopy provides a shaded area to escape the heat of the sun whilst being in a position to fully appreciate the yacht’s balanced performance. Below deck, a bright, modern open galley sits opposite a sociable entertaining space. Four guests can enjoy two beautifully appointed cabins that are filled with natural light from the extensive hull glazing, with a full-beam master stateroom situated amidships.
-
- Optional cockpit infill
-
- 3 cabin version
| L.O.A. (inkl pulpits) | 16.02 m (52′ 7″) |
| L.O.A. (exkl pulpits) | 15.35 m (50′ 4″) |
| Bredd | 4.08 m (13′ 4″) |
| Djup | 1.09 m (3′ 7″) |
| Deplacement approx. (lightship) | 15.9 T |
| Deplacement approx. (half load) | 19.4 T |
| Deplacement approx. (LDC) | 21,5 T |
| Bränslekapacitet | 1550 L |
| Vattenkapacitet (inkl varmvattenberedare) |
414 L |
| Varmvattenberedare | 50 L |
| Holdingtank | 170 L |
| Tillverkningsår | 2022 – … |
BOENDE
4-6 bäddar, varav
2 i centerkabin
2 i förkabin
2 i bäddbar salongssoffa eller en tredje kabin istället för soffa – tillval
2 WC med separat duschkabin
MOTORALTERNATIV
2x Volvo Penta IPS 650 (2 x 480 hk)
† Toppfart 31-33 kn
ANMÄRKNINGAR
† Fart och räckvidd är uppskattade på en båt med standardutrustning och varierar beroende på skrovets renhet, akterdrevets skick, last, vatten- och lufttemperaturer, sjöförhållanden och andra faktorer. Uppskattningar ges därför i god tro men utan garanti eller några förpliktelser oss oss eller Princess Yachts Limited.
Bild och ritningsmaterial på webbplatsen kan ha viss valfri extrautrustning installerad. Specifikationer kan ändras när som helst utan föregående meddelande, och utan någon skyldighet att meddela om detta.
UTRUSTNING
DECK FITTINGS
• Teak-laid transom platform, transom steps, cockpit deck and steps to side deck
• Reversible electric anchor winch with foredeck and helm position controls
• Self-stowing anchor system incorporating one 20kg/44lb Delta galvanised steel anchor with 40m galvanised 9.5mm gauge chain
• Stemhead roller with automatic anchor launch and retrieve
• Stainless-steel bow, stern and spring cleats
• Stainless-steel bow fairleads
• Stainless-steel pulpit and guardrails
• Stainless-steel coach roof handrails
• PVC rubbing band with stainless-steel insert
• Illuminated crown logo to transom
• Full set of IMCO navigation lights
• Riding light
• Remote control searchlight
• Single electric horn
• Fuel and water fillers
• Holding tank dockside discharge connection
• Deck hatch access to chain locker with fender stowage rack
• Foredeck escape hatch
• Foredeck drinks holders (4)
• Ensign socket
AFT COCKPIT AND BATHING PLATFORM
• Self-draining
• Upholstered aft U-shaped & forward L-shaped seating/dining area (optional seat infill)
• Cup holders to L-shaped seating (2)
• Folding teak dining table
• LED Overhead and low deck level lighting
• Cockpit cover
• Stainless-steel handrails
• Lockable transom hatch to stern lazarette with gas strut assistance
• Lockable access hatch to engine room
• 220/240v shore support inlet in locker
• Life raft stowage locker
• Transom bathing platform with integrated foldaway swimming ladder (with optional electro-hydraulic raise/lower mechanism – note when this option is selected it includes transom steps to access stern from bathing platform when in lowered position)
• Port & starboard transom gates leading to bathing platform
• New style hot and cold transom shower
• Storage lockers
• Waterproof speakers linked to saloon sound system
• Fender stowage rack in engine room/lazarette
• Seat locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguisher

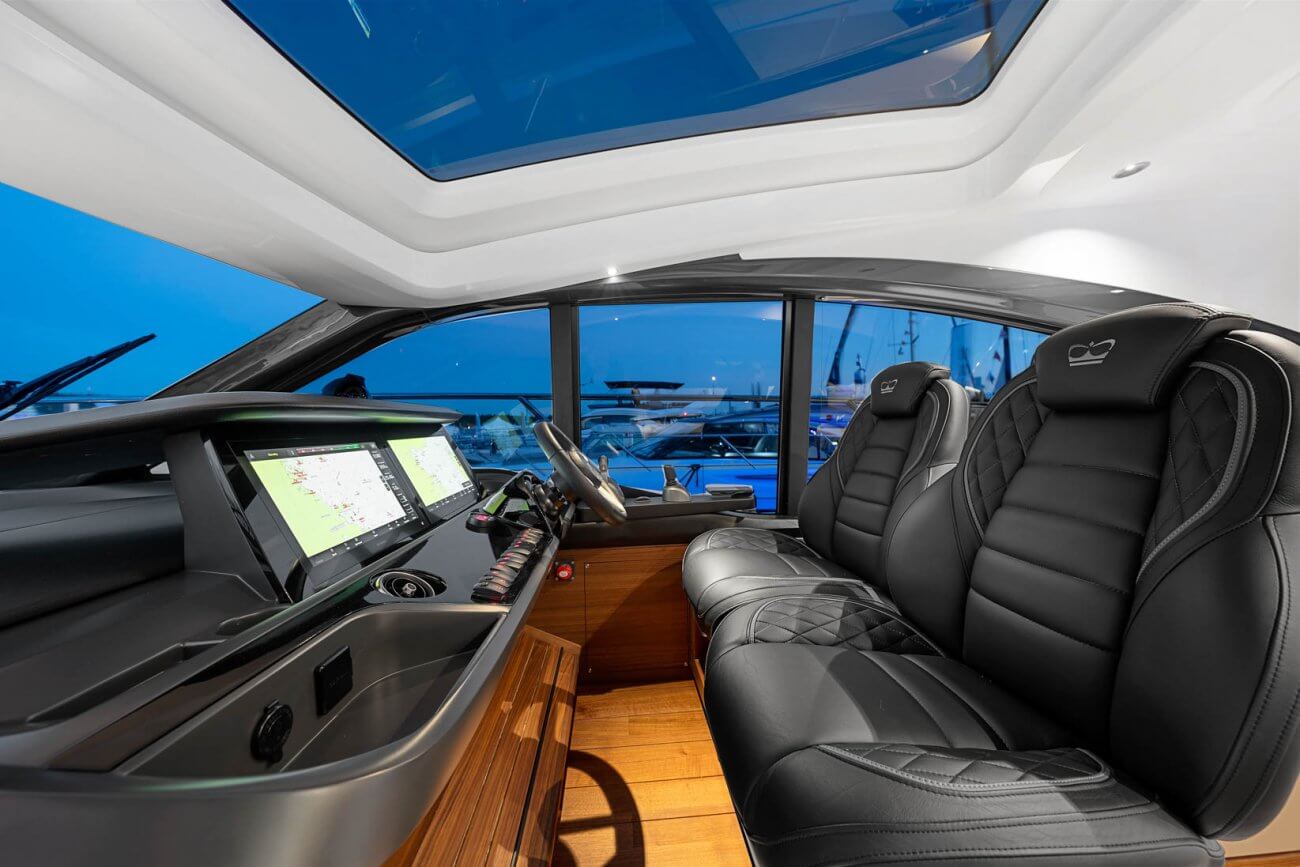

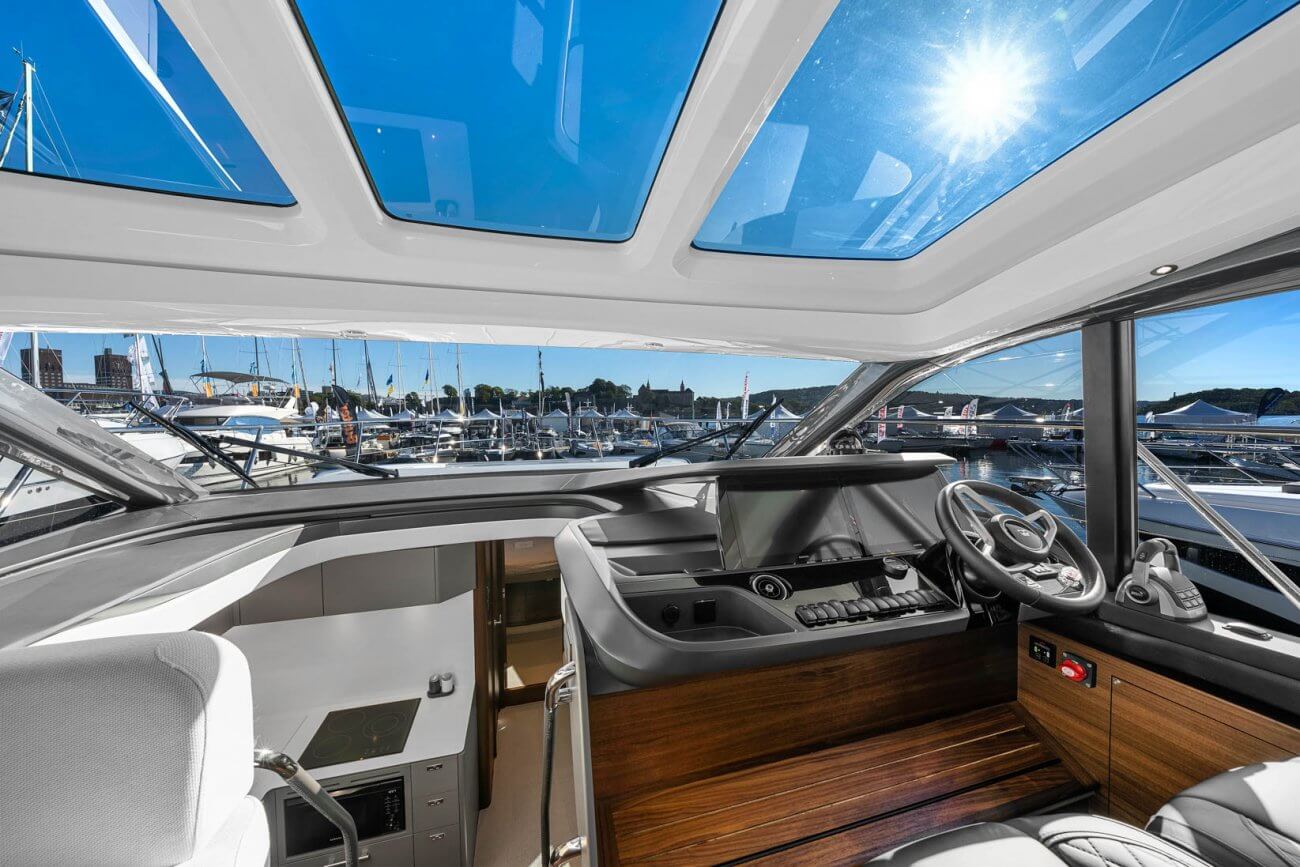

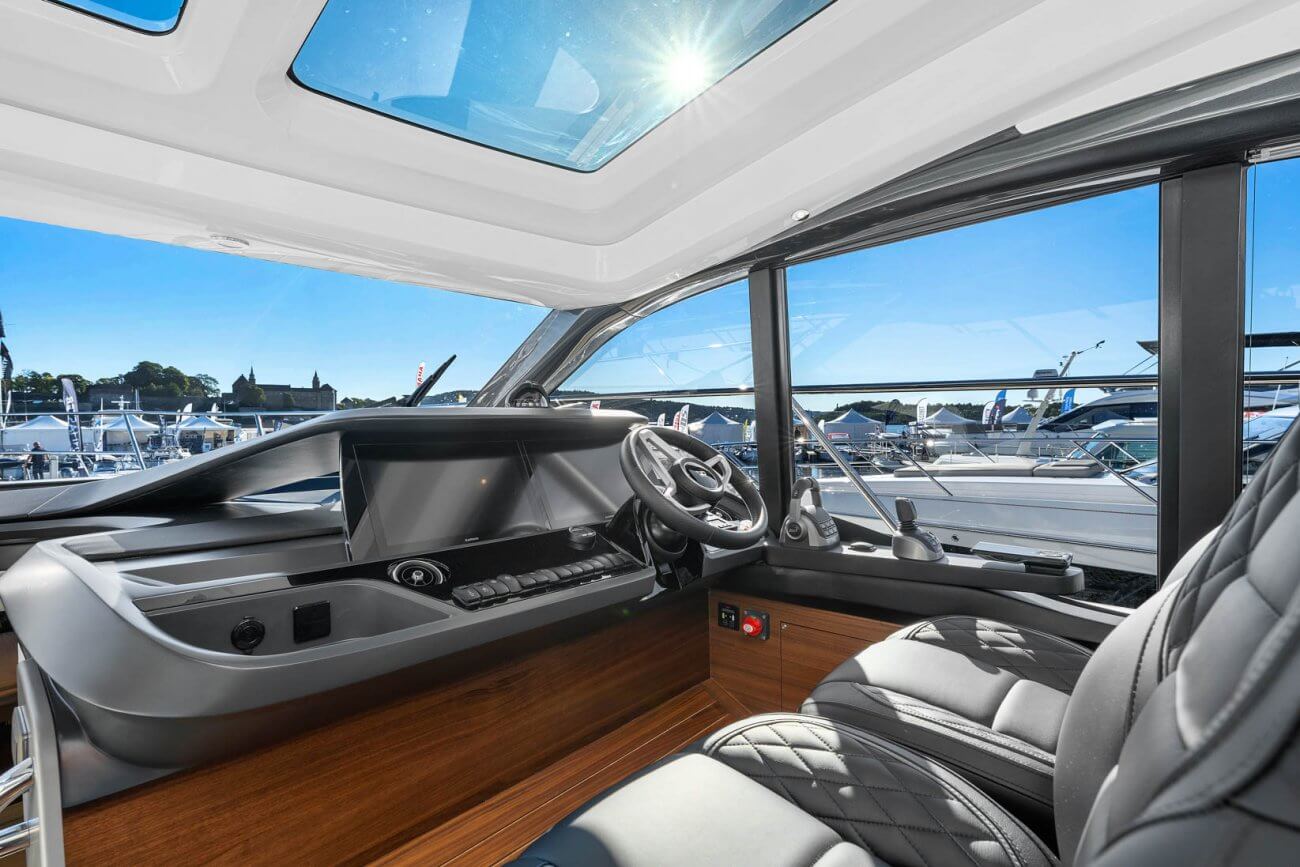

HELM POSITION
• Twin upholstered seats, manually adjustable helm seat (fore/aft), fixed position navigator seat
• Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, fuel gauges, alarms & steering angle indicator.
• Electronic engine controls with integrated trim control

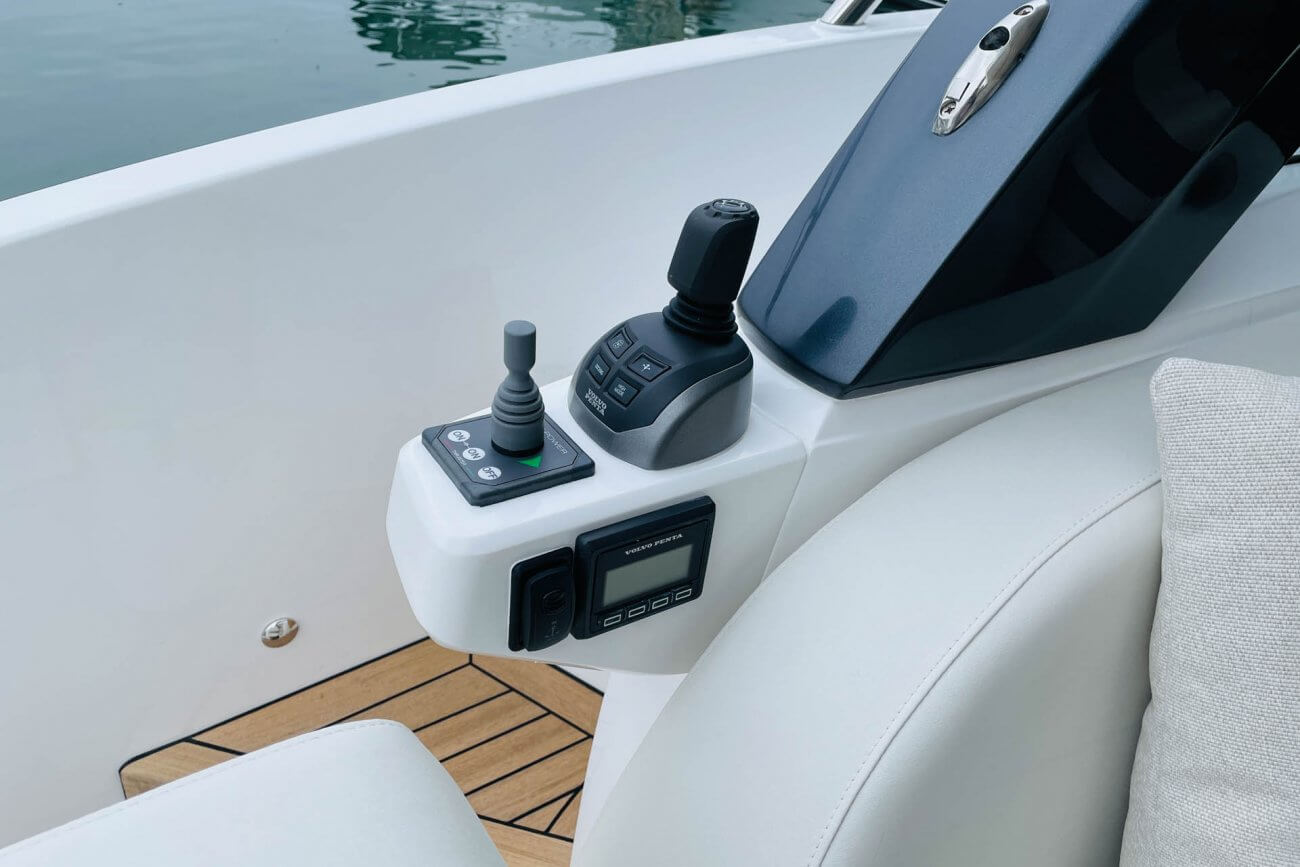

• Joystick manoeuvring control
• Power-assisted electric steering system and adjustable steering wheel
• VHF with DSC R/T with intercom
• Speed and distance log with sea temperature (integrated into Volvo/Garmin display)
• Echo sounder with alarm (integrated into Volvo/Garmin display)
• Single remote-control searchlight
• High speed magnetic compass
• Horn button to operate single electric horn
• Twin windscreen wipers
• Windscreen freshwater pressure wash
• Bilge pump controls with audible and visual alarm for bilge pumps (3)
• Electric drop window to starboard side
• Electric anchor winch with remote control
• Audible and visual alarm warning system (integrated into Volvo/Garmin display)
• Autopilot (integrated into Volvo/Garmin display)
• Engine room fire extinguisher warning system
• Drinks holder (2) at console, with additional drink holder (1) at base of navigator seat
• Toughened un-tinted glass screen
• Black mesh sunscreens for exterior use
• USB connection points
• Riding light, helm and nav light control switches
• Timber laid flooring

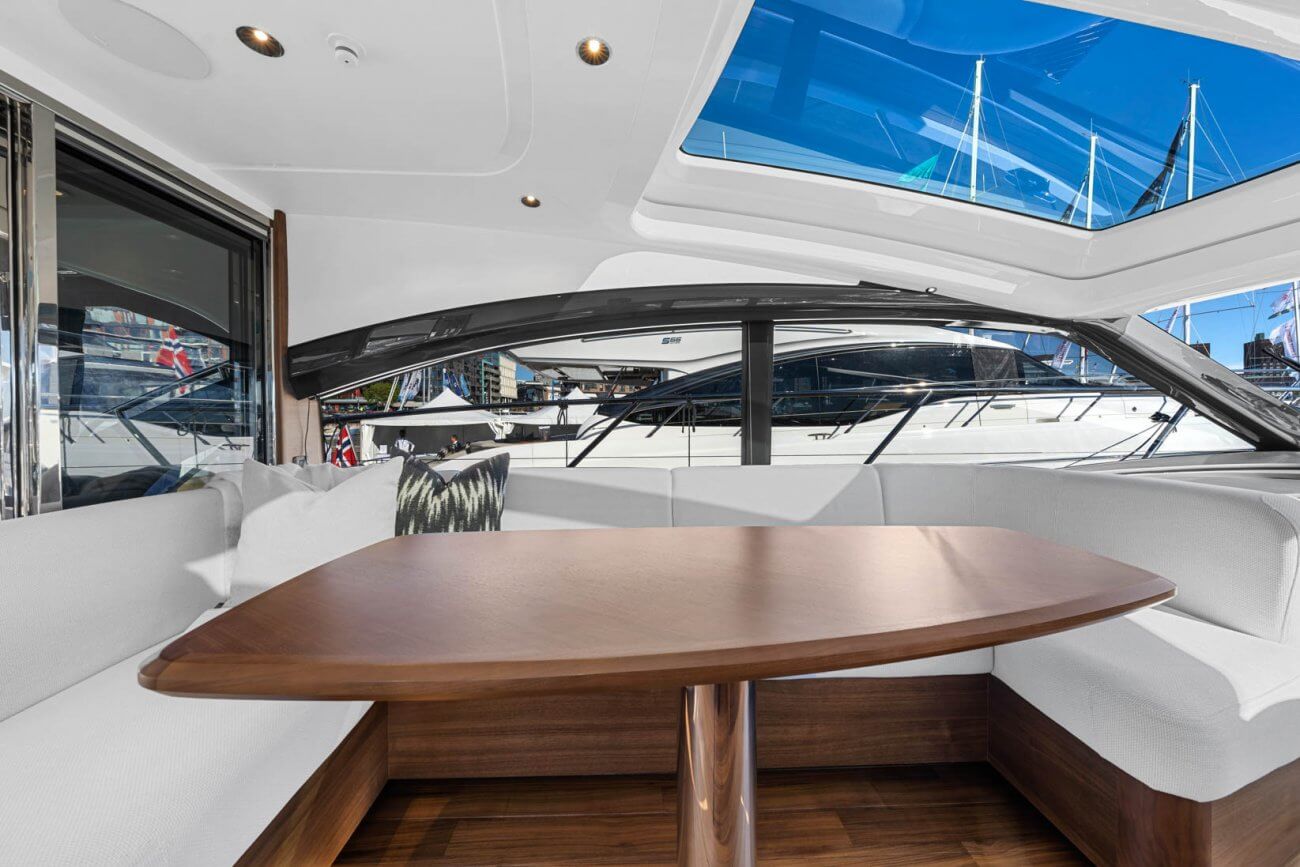

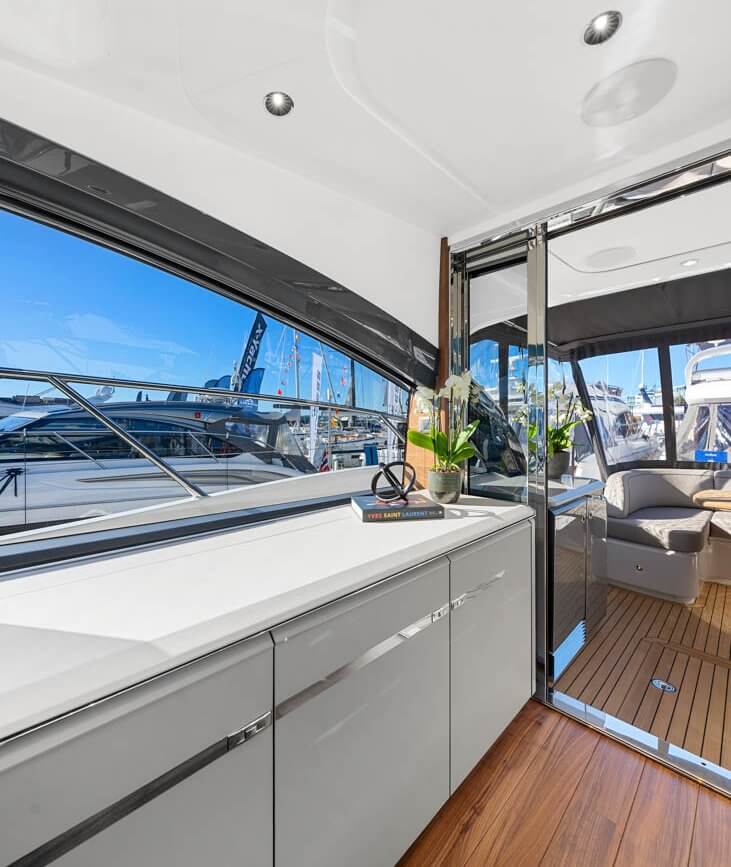

DECK SALOON
• U-shaped sofa with drawers
• Dining table
• Sideboard
• Refrigerator
• Curtains, blinds or sunscreens to all windows and doors
• LED overhead downlighters

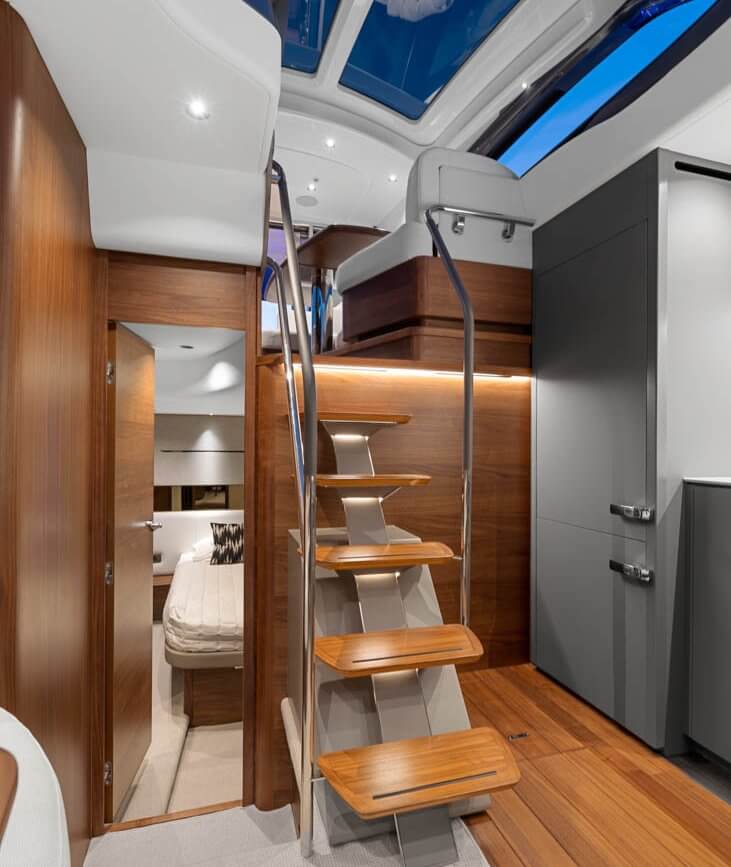

• Access stairway to lower accommodation
• Electric opening roof
• Triple stainless-steel framed sliding doors to cockpit
• Fusion Apollo RA-670 audio unit (with external USB connection) with Wifi and Bluetooth connected to saloon Fusion 6” CL602 (2) speakers and cockpit speakers
• Timber flooring
• 2x 220/240v outlets
• 2x USB charging points

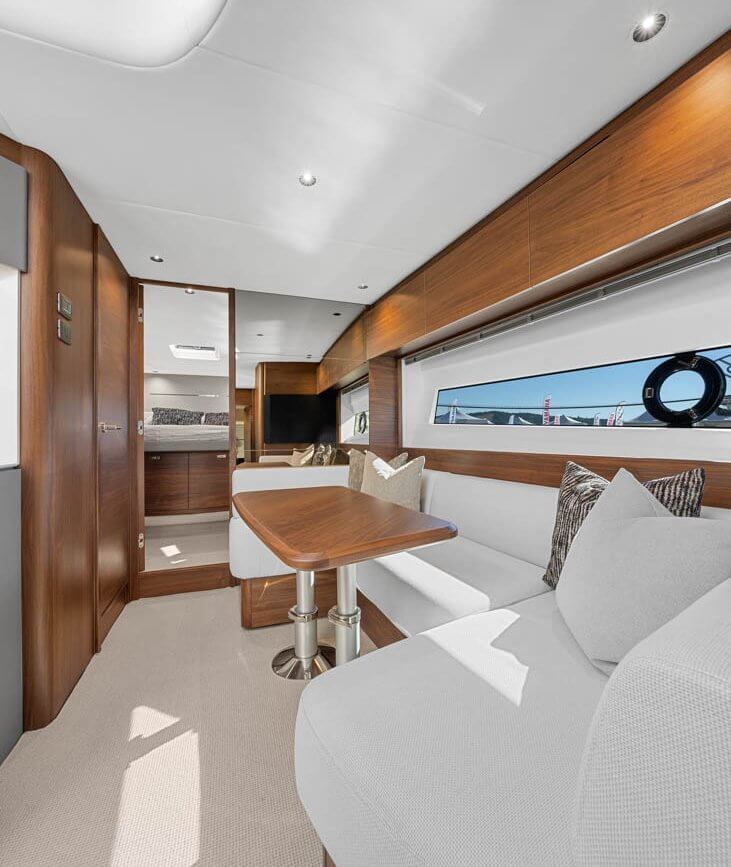

LOWER SALOON
• U-shaped sofa with single drawer and top loading storage (top loading storage is occupied by A/C unit when option is specified)
• Table
• Storage lockers
• LED overhead downlighters
• 24/240v main electrical control panel with battery isolation switches
• Fusion Apollo RA-670 audio unit (with external USB connection) with Fusion 6” CL602 (2) speakers
• Window with opening portlight (1) with manual tension venetian blinds
• Thermal heat alarm
• 1x 220/240v outlets
• 2x USB charging points

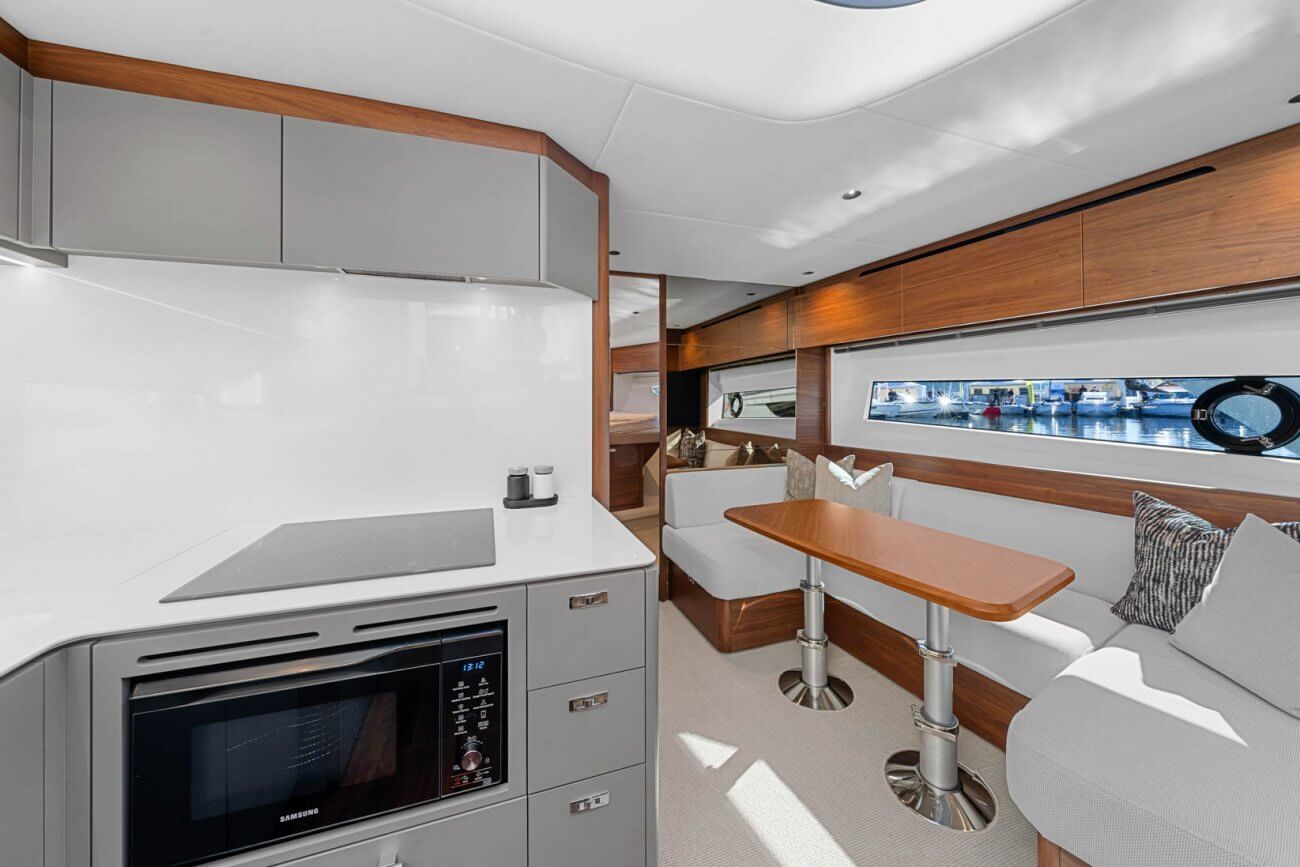

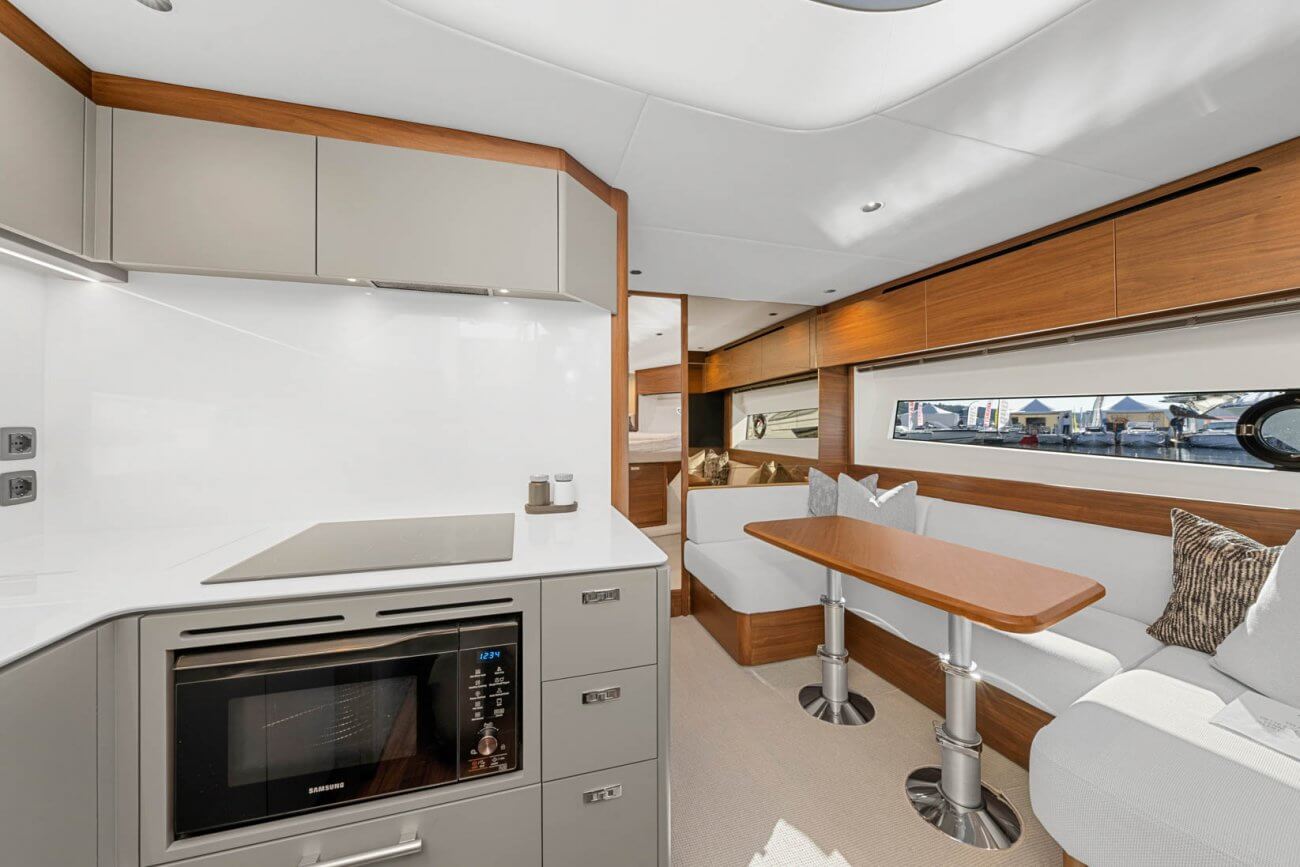

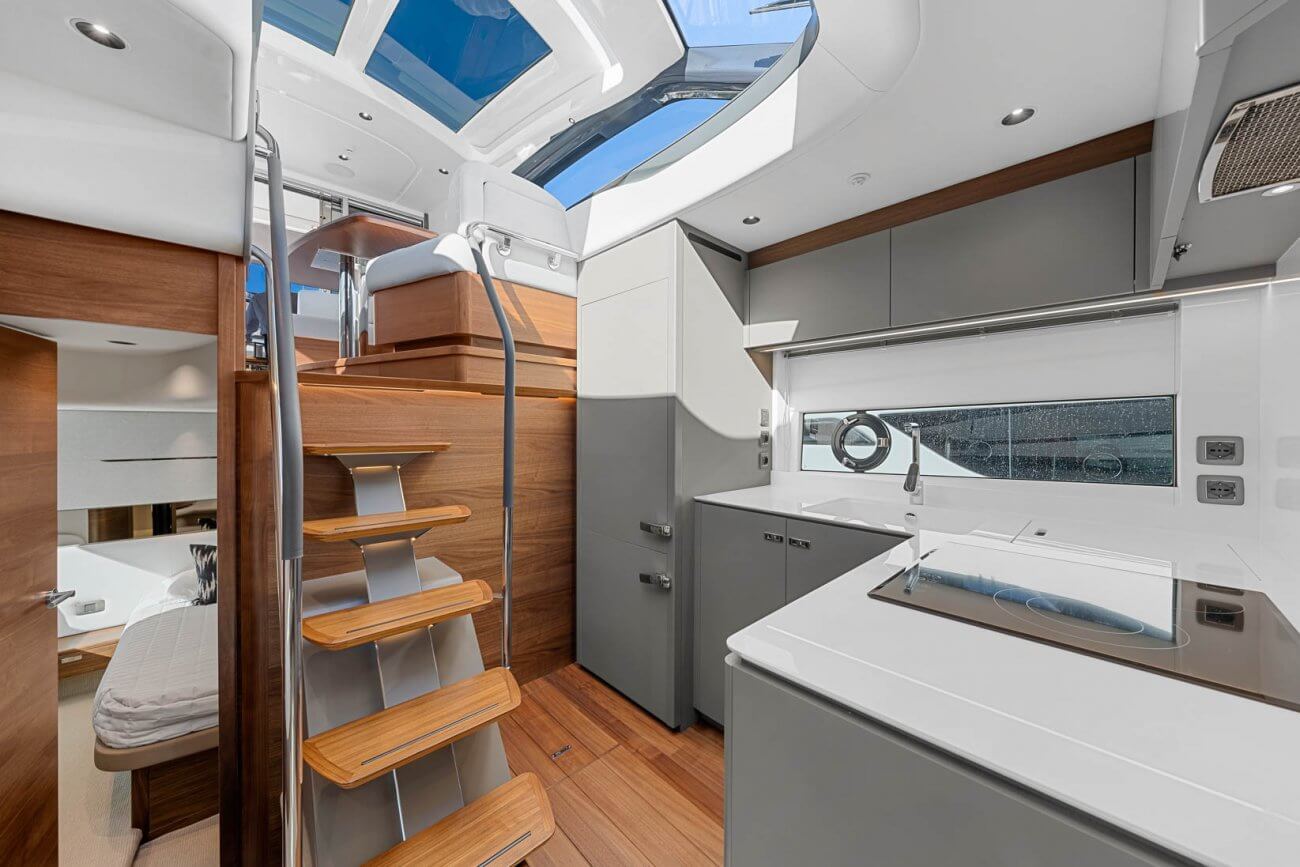

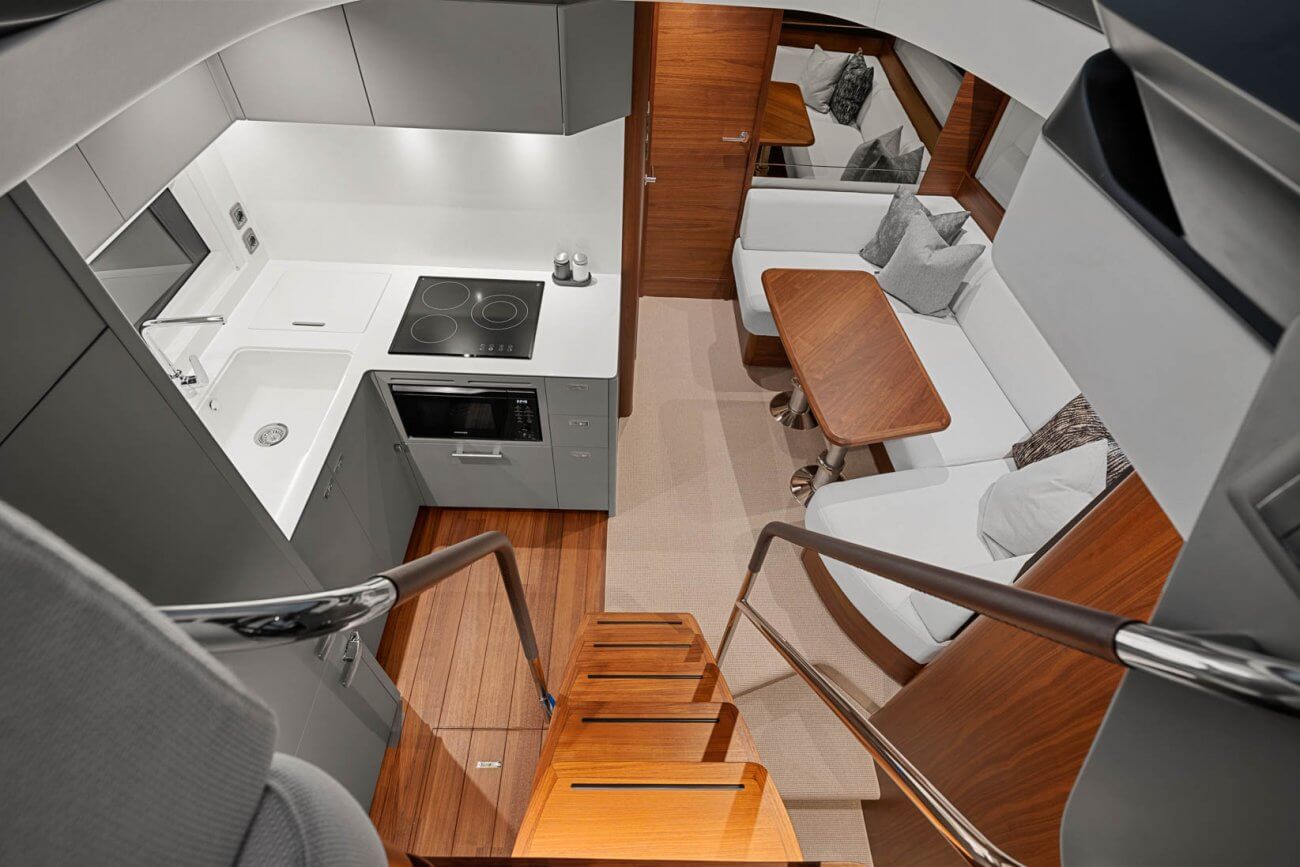

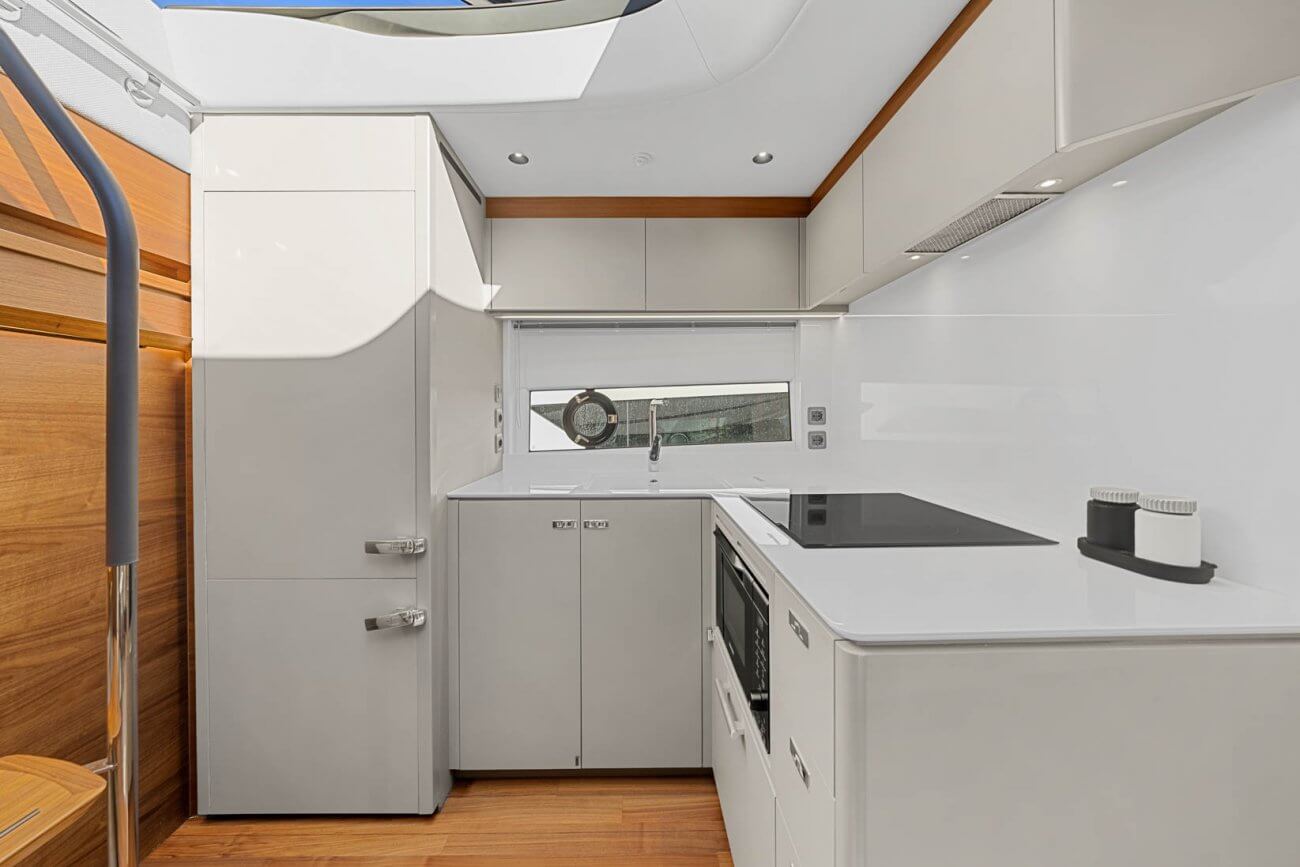

GALLEY
• Sylmar white Solid Surface worktop
• 2 ring ceramic hob
• Sylmar white Solid surface sink with Monobloc mixer tap (remains white for all options)
• Combination microwave/oven with grill
• Full height 270 litre fridge freezer, with deep freeze drawers
• Waste bin
• High/low storage cupboards, drawers and lockers
• Timber-laid flooring
• Window with opening portlight and manual tension venetian blind
• Hob extractor fan
• Cutlery & crockery storage
• Chopping board
• 220/240V power outlets (4)
• LED overhead task lighting (24v), concealed light & night lighting
• Storage bin under galley sole
ACCOMMODATION
• All cabins and bathrooms feature opening portholes
• All cabins feature 220/240v power points
• All bathrooms feature electric freshwater toilets and 240v shaver points

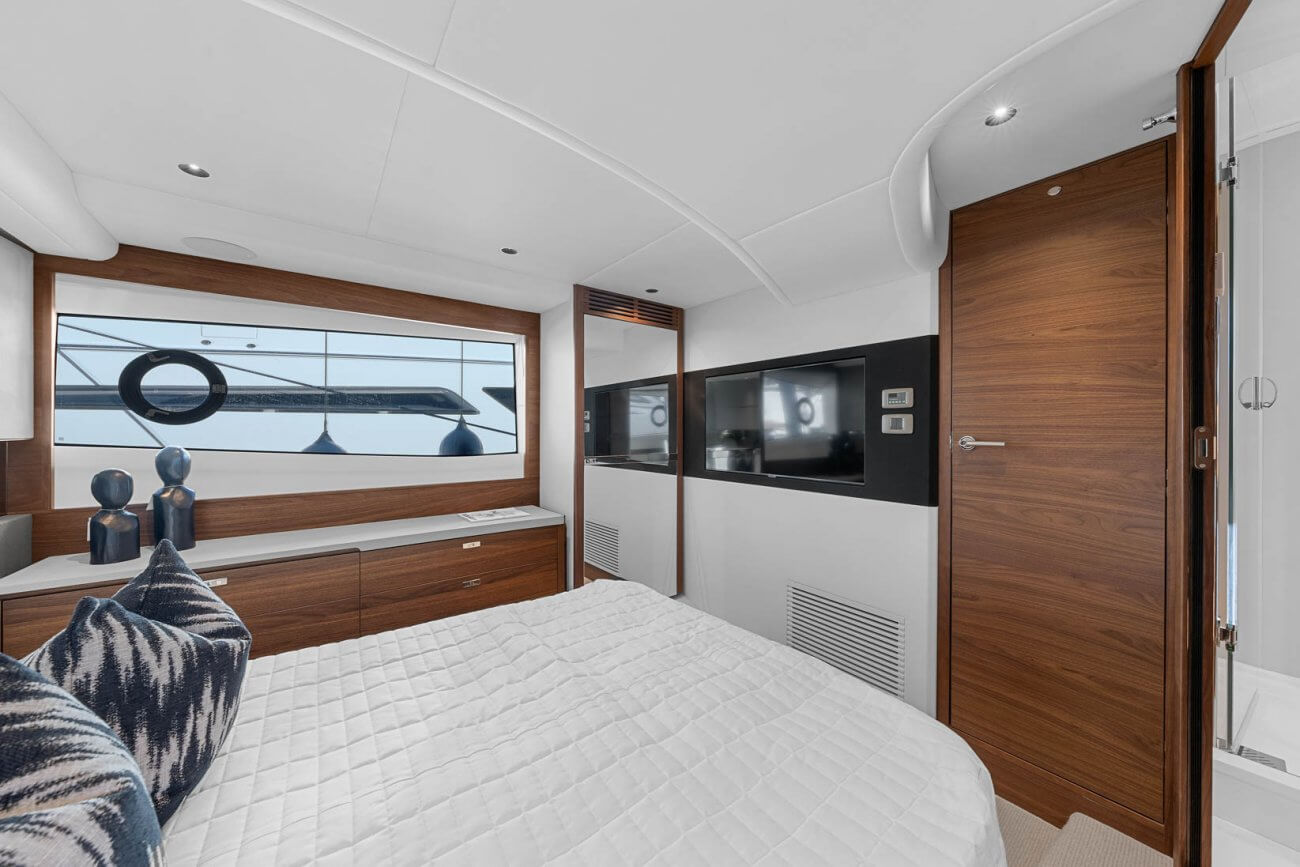

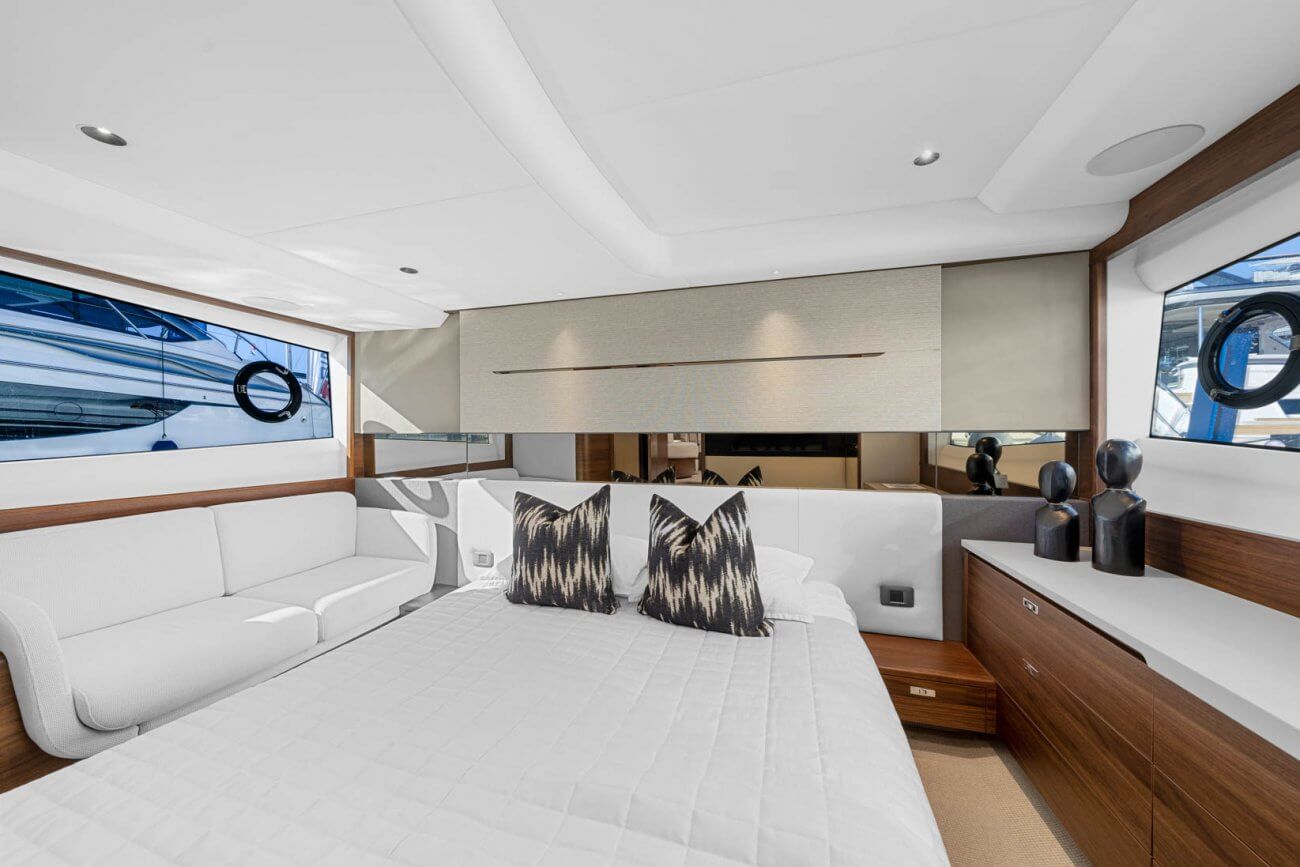

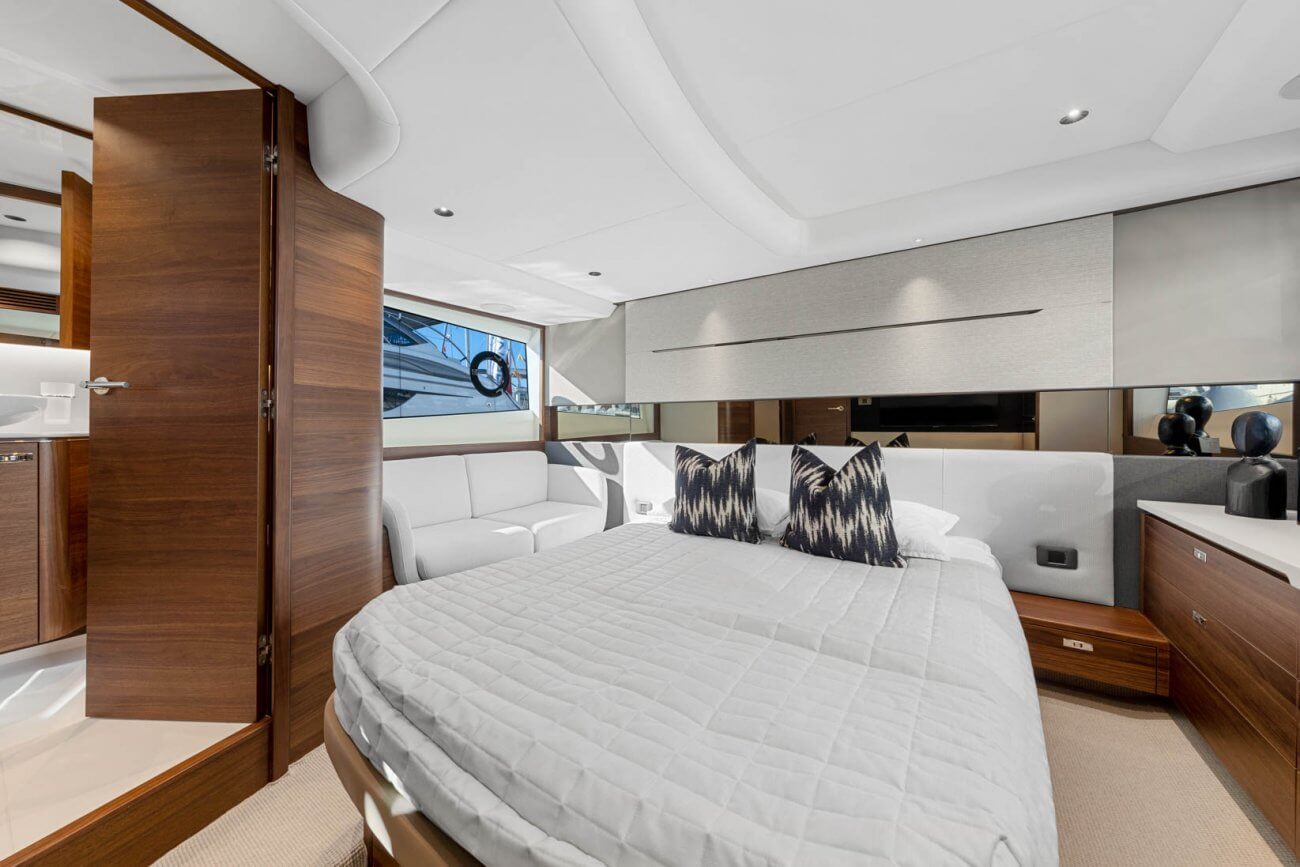

MASTER STATEROOM
• Large double bed with bedside tables and drawers below
• Wardrobe with shelves & full-length mirror
• Drawers and storage lockers
• Sideboard
• LED overhead and individual berth lights (24v)
• Starboard side sofa
• Panoramic windows in toughened glass with opening ports and manual tension venetian blinds
• Fitted carpet
• 4x USB charging points
• 2x 220/240v outlets

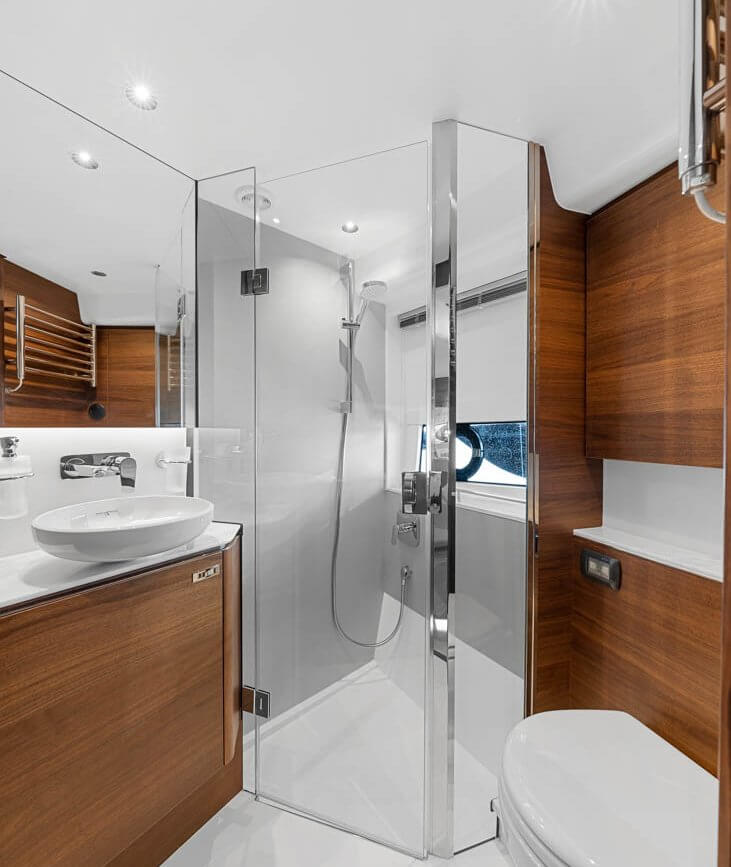

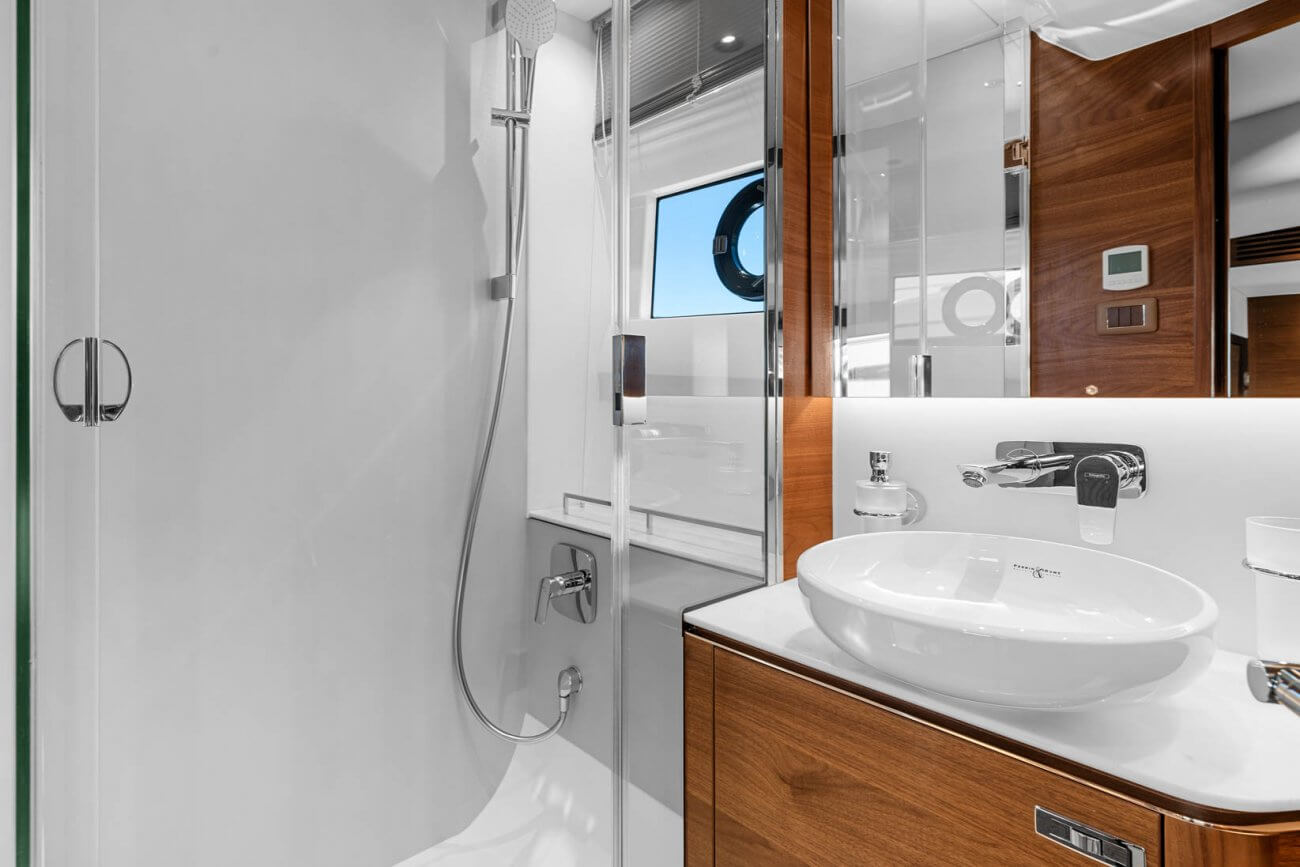

EN-SUITE BATHROOM
• Solid Surface worktop
• Wash basin with Monobloc mixer tap
• Separate stall shower with extractor fan and auto pump out
• Mirror
• LED overhead and concealed lighting (24v)
• Storage locker
• Window with opening portlight and manual tension venetian blinds
• Solid Surface flooring
• Bathroom accessories
• 220/240v shaver socket
FORWARD STATEROOM
• Large double bed with drawers below (option of scissor berths)
• Wardrobe with full length mirror
• Deck hatch
• Storage lockers
• LED overhead (24v)
• Window with opening portlights and manual tension venetian blinds
• 1x 220/240v outlets
• 2x USB connection points
• Fitted carpets
EN-SUITE BATHROOM
• Solid Surface worktops
• Wash basin with Monobloc mixer tap
• Separate stall shower with extractor fan & automatic pump out
• Mirror
• LED overhead and concealed lighting (24v)
• Storage locker
• Window with opening portlight and manual tension venetian blinds
• Solid Surface flooring
• Bathroom accessories
• 220/240v shaver socket

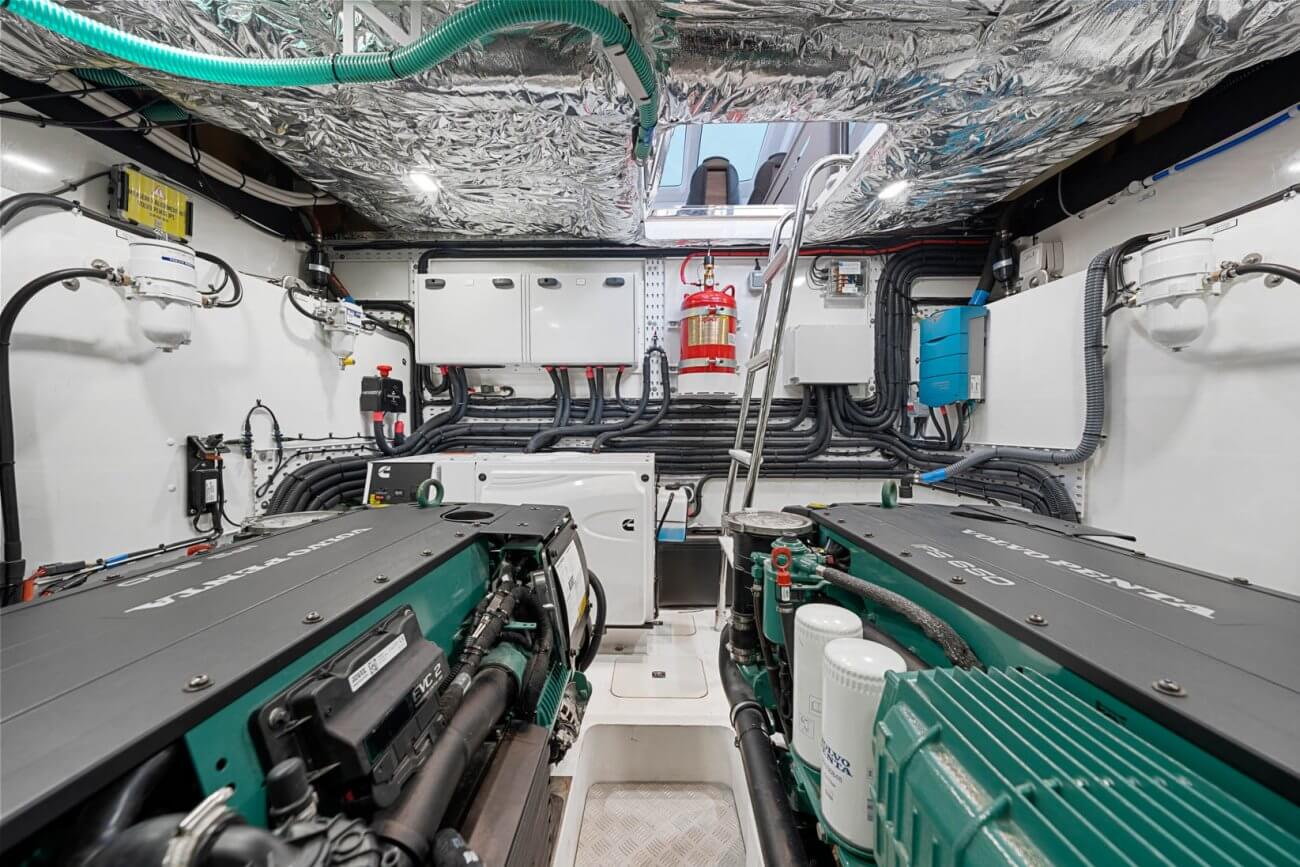

POWER AND DRIVE SYSTEM
• Twin Volvo IPS engines (driving contra rotating propellers via pod drive)
• Power-assisted steering (electrical)
• Electronic engine controls
• Joystick manoeuvring system
• Volvo active corrosion protection system for pod drive
• Engine room extractor fans with electronic time delay
• Volvo interceptor trim system integrated into Volvo engine system (integrated into Volvo/Garmin display)
• Engine room lighting
• Access from cockpit hatch
• Fresh water supply point in engine room
• Engine room insulation
• High volume air intakes
• Engine beds integrally moulded with hull for strength and vibration absorption
• Bulkheads integrally bonded
• Engines flexibly mounted
• Automatic fire extinguisher with remote override
• Automatic/manual bilge pumps
• 24v to 12v converters for certain navigation and radio circuits
ELECTRICAL SYSTEMS
24 VOLT:
• 4 x heavy-duty batteries for engine starting
• 4 x heavy-duty auxiliary batteries
• Engine alternators charge via split charge relays to isolate engine start batteries from auxiliaries and ensure efficient charging of both battery banks.
• 40-amp 24v float battery charger
• Battery paralleling system (for engine start back-up)
• Remote battery master switches with control switch at main panel
• Circuit breakers on all circuits
• Galvanic isolation system
220/240 VOLT:
• Shore support inlet (32A)
• Power points in owner’s stateroom, forward guest cabin, galley, lower and upper saloon
• Polarity check system
• Earth leakage safety trip
• Shaver points in both bathrooms
• 4kW generator
• 12v battery charger
FUEL SYSTEM
• Twin fuel tanks (in NS8 marine grade alloy) with interconnection system
• Fuel fillers on both side decks
• High-capacity duplex fuel filters with water traps with change-over valves, water contamination warning integrated into Volvo/Garmin display (integrated into Volvo/Garmin display)
• Remote fuel cocks in cockpit seat locker for main engines & generator
• Fuel gauges integrated into Volvo/Garmin display
WATER SYSTEM
• Water capacity totalling 364 litres /80 gallons/96 US gallons plus 50 litres/ 11 gallon/13 US gallon hot water calorifier
• Water heated by engine and 240V immersion heater
• Automatic water pump with filter
• Pump main circuit breaker at AC/DC switch panel
• Water level gauge
• Deck filler
• Electric quiet flush freshwater WC system with holding tank, content gauge and low noise manual overboard discharge, as well as dockside discharge.
• Fire extinguishers
BILGE PUMPS
• Automatic electric bilge pumps with manual override (3 in all)
• High-capacity manual bilge pump in cockpit seat locker with valve system and suction points in engine room and accommodation space
• Electric bilge pumps to have controls, warning lights with audible alarm and “pump out” isolation at helm
0THER STANDARD EQUIPMENT
• Fenders (6)
• Mooring warps (4)
• First aid kit
• Boat hook
• Quilted bedspreads for both cabins
• Tool kit
• Owner’s manual and engine manual
• Anchor winch backup handle
• Ensign staff
• Set of towels
• Ships document case
FINISHES
• Furniture finished in a choice of Rovere oak and Alba oak in satin lacquer finish as standard. Silver oak or walnut in satin or gloss lacquer finish available as an option.
• Galley and bathroom worktops in Solid Surface
• Timber-laid galley, saloon & helm floors
• Bathroom floors in Solid Surface
• Manual tension venetian blinds to all windows and portholes, curtains to saloon doors
• Teak laid decks to transom platform, transom steps, cockpit deck and steps to side deck
• Choice of high-quality carpets & upholstery fabrics from extensive range
Please note the right is reserved to add modify or delete from this preliminary specification.
